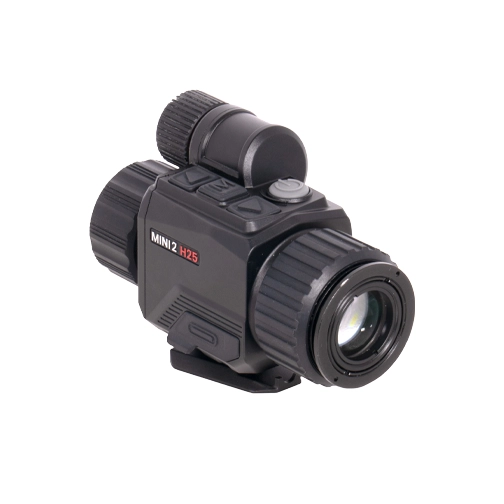

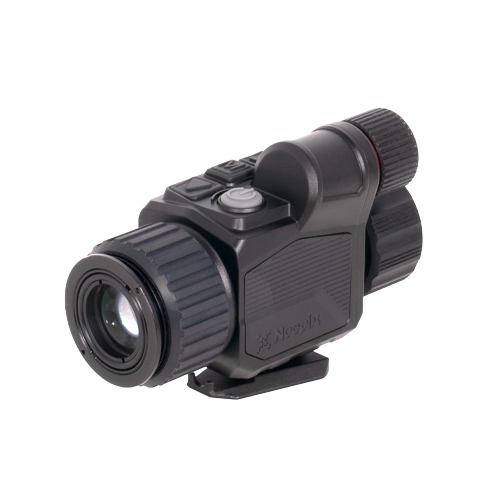

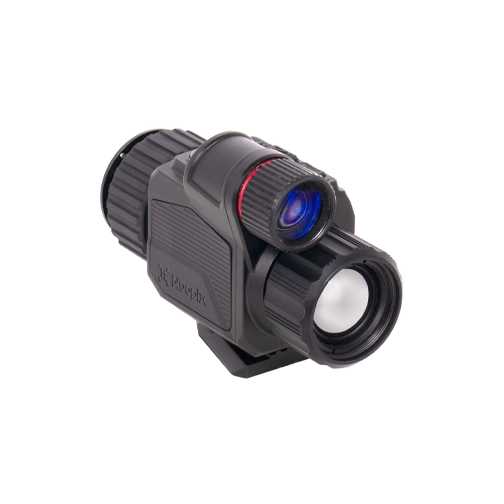

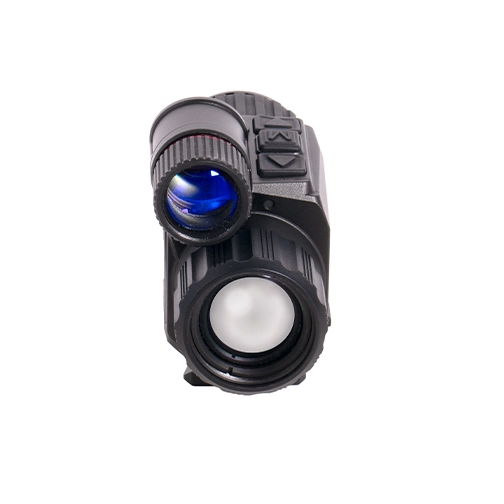

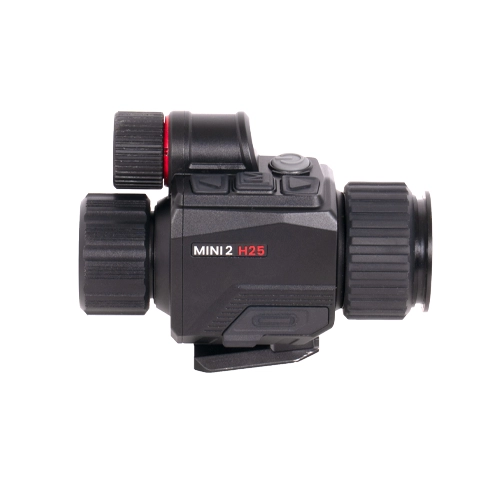

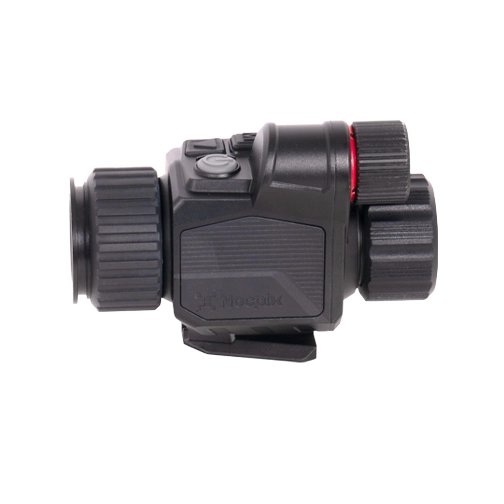

Nocpix MINI2 H25 Helmet Mounted Thermal Monocular

The Nocpix MINI2 H25 Helmet Mounted Thermal Monocular packs high-resolution thermal imaging, digital night vision, and thermal/NV fusion capability into a compact, lightweight platform built for helmet-mounted and handheld observation.

At the heart of the Nocpix MINI2 H25 is a 640×512 Nocpix thermal sensor with a 12μm pixel pitch, ≤15mK sensitivity, and fast 60Hz refresh rate. Paired with a 25mm F/1.0 objective lens and Nocpix Reality+ image processing, the Nocpix MINI2-H25 system provides detailed thermal imagery with excellent sensitivity to subtle temperature differences.

With 1x native magnification, a wide 17.6° x 14.1° field of view, and a detection range reaching up to 1,420 yards, the MINI2-H25 is particularly well suited for scanning, navigation, and observation where situational awareness is a priority.

640×512 Nocpix Thermal Sensor

The Nocpix MINI2-H25 features a high-performance 640×512, 12μm thermal sensor with an impressive thermal sensitivity rating of ≤15mK. The highly sensitive detector allows the device to distinguish subtle differences in temperature, helping reveal additional environmental detail when thermal contrast is limited. A fast 60Hz refresh rate provides smooth imagery during movement and scanning, while Nocpix Reality+ image processing further optimizes the displayed thermal image.

25mm F/1.0 Objective Lens

The thermal system is paired with a 25mm F/1.0 objective lens designed to maximize thermal energy transmission to the detector. With 1x native magnification, the MINI2-H25 provides a broad field of view that is particularly useful for helmet-mounted operation and navigating through changing environments. The 17.6° x 14.1° field of view provides excellent situational awareness while still delivering thermal detection capability out to 1,420 yards.

Digital Night Vision & Thermal Fusion

In addition to its thermal imaging capability, the MINI2 incorporates an integrated digital night vision system. Users can transition between thermal imaging, digital night vision, and thermal/NV fusion, providing multiple ways to observe the surrounding environment. Fusion capability combines thermal information with digital night vision imagery, giving users access to both heat signatures and additional environmental detail within a combined viewing mode.

1280×1024 AMOLED Display

Thermal and digital imagery is presented through a 0.6-inch AMOLED display with 1280×1024 resolution. The high-resolution display provides a crisp, detailed viewing experience in a compact package suitable for prolonged helmet-mounted or handheld observation.

Seven Color Palettes

The Nocpix MINI2 H25 provides seven selectable thermal color palettes:

• White Hot
• Black Hot
• Red Hot
• Rainbow
• Violet
• Crimson
• Viridian

Helmet-Mounted Design

Designed around compact helmet-mounted use, the Nocpix MINI2 H25 weighs just 8.47 ounces and measures approximately 4.00″ x 1.72″ x 2.54″. The unit utilizes a dovetail shoe mounting interface and is designed for compatibility with appropriate night vision mounting systems. Its compact dimensions and 1x native magnification make the MINI2-H25 particularly well suited for applications where mobility and situational awareness are important.

Dual-Link Technology

Nocpix Dual-Link technology allows two compatible MINI2 units to be paired together. When configured as a dual-unit system, both devices can be controlled from a single MINI2, providing additional flexibility for users building a dual-monocular configuration.

Recording, Storage & Wireless Connectivity

The Nocpix MINI2 H25 includes onboard video and image recording with 32GB of internal storage. Wireless connectivity provides additional video and image functionality through the compatible app, while a USB-C connection provides data and power connectivity.

Extended Battery Operation

The Nocpix MINI2 H25 supports USB-C power and an external battery pack, providing up to 7 hours of operating time with the battery pack. This external power capability helps extend operating time for longer observation sessions without unnecessarily increasing the size of the monocular itself.

Rugged Aluminum Housing

Despite weighing only 8.47 ounces, the Nocpix MINI2 H25 utilizes a durable aluminum housing with an IP67 ingress-protection rating. The device is designed to operate across temperatures ranging from -4°F to 122°F, providing dependable functionality across a wide range of environmental conditions. The Nocpix MINI2 H25 is backed by a 5-year warranty.
