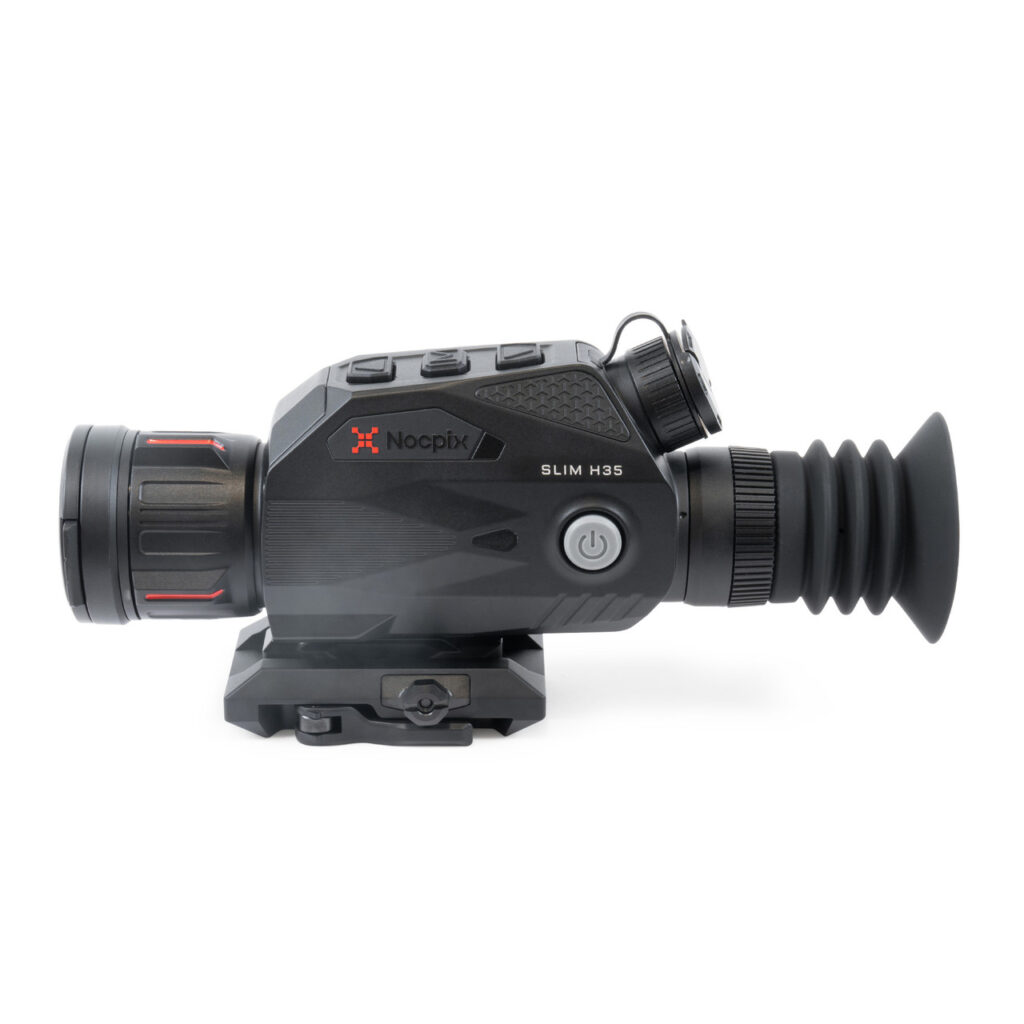

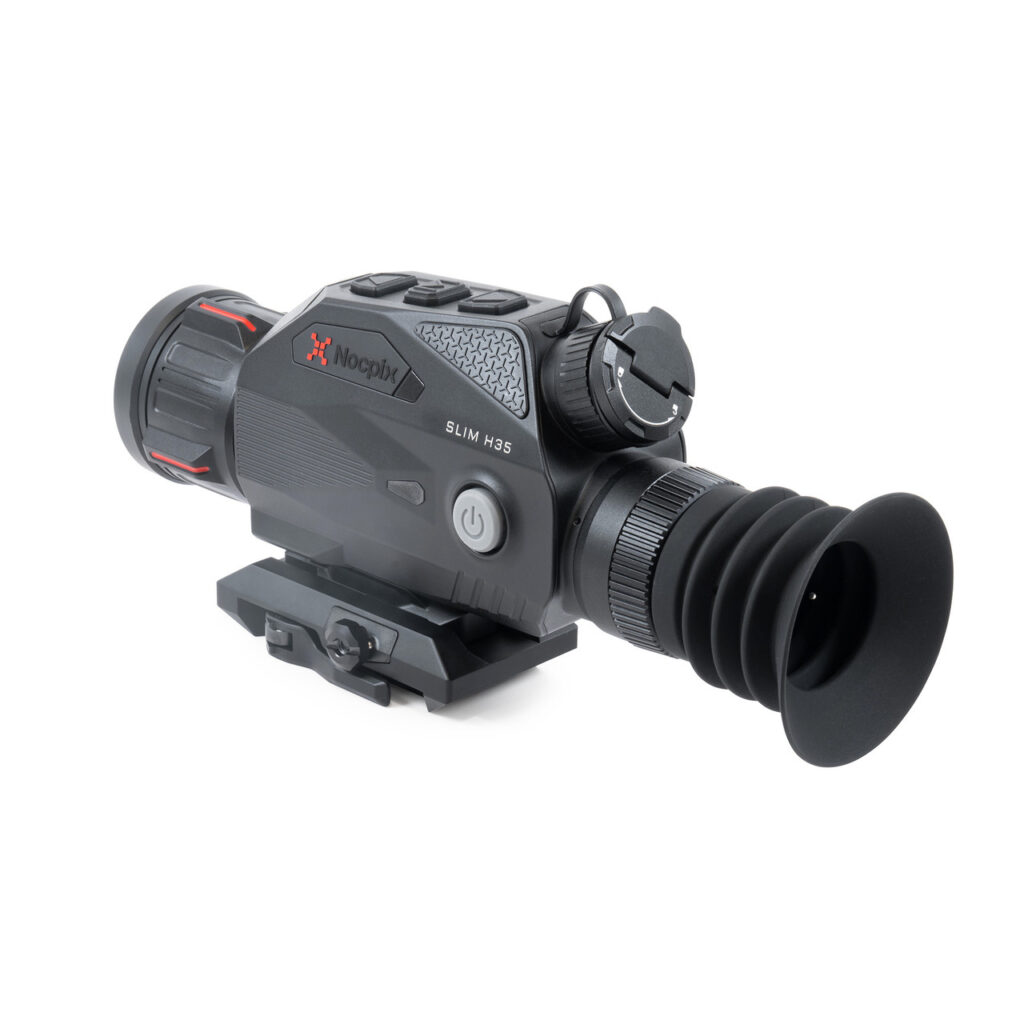

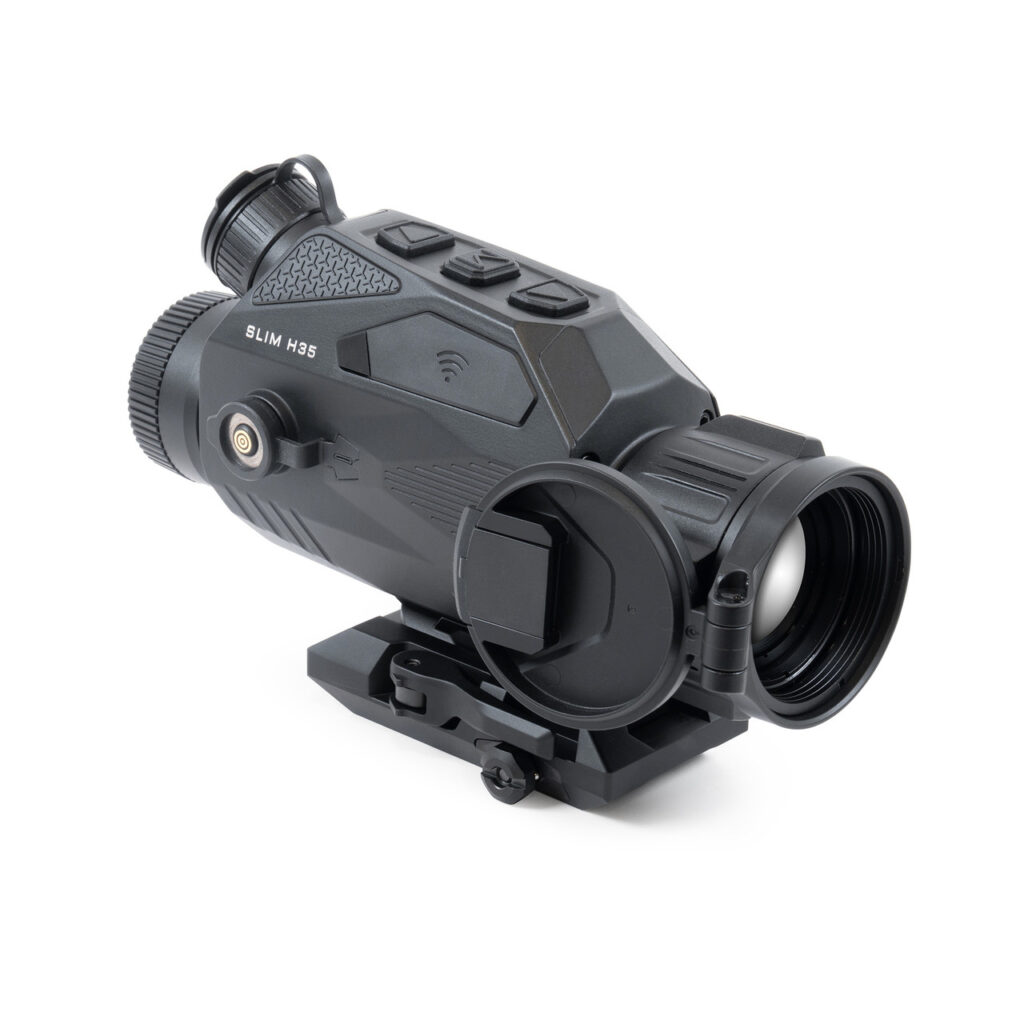

Nocpix SLIM H35 Multi-Function Thermal Optic

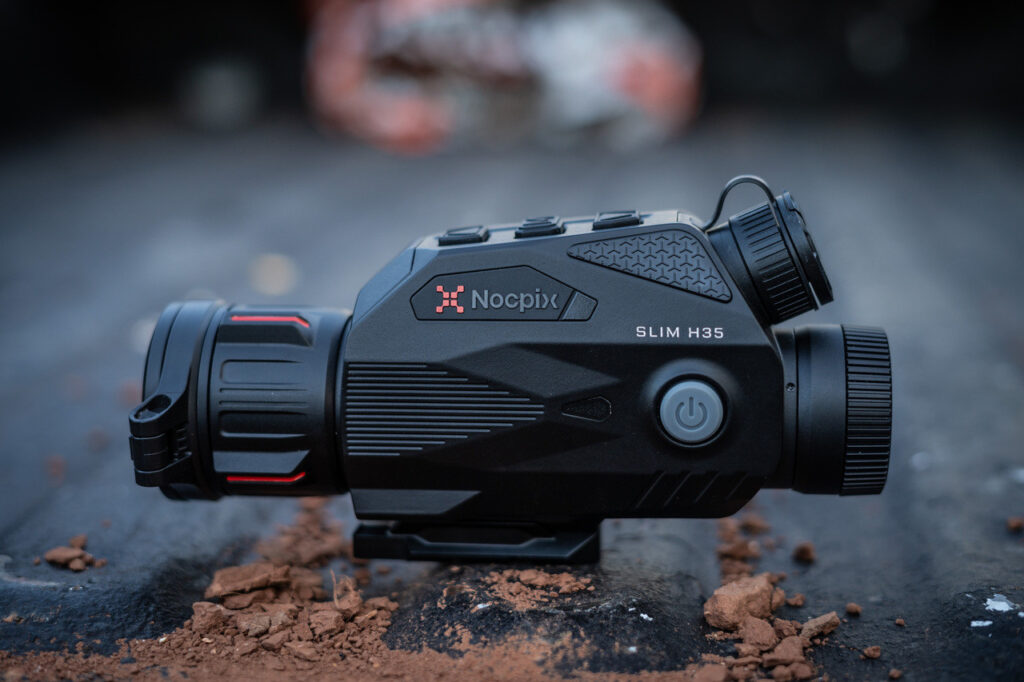

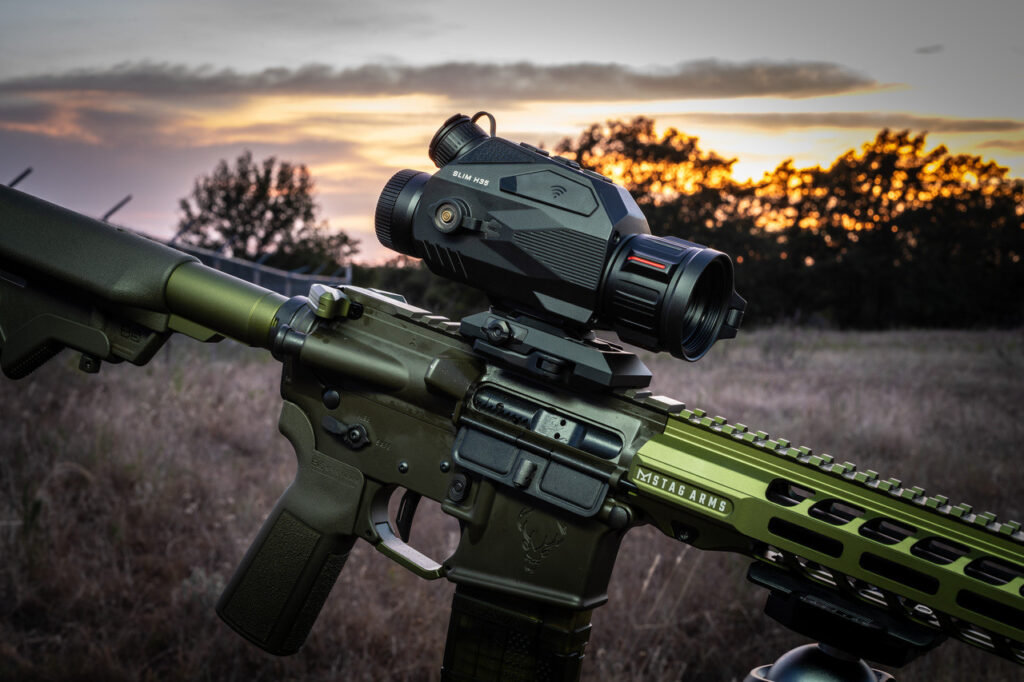

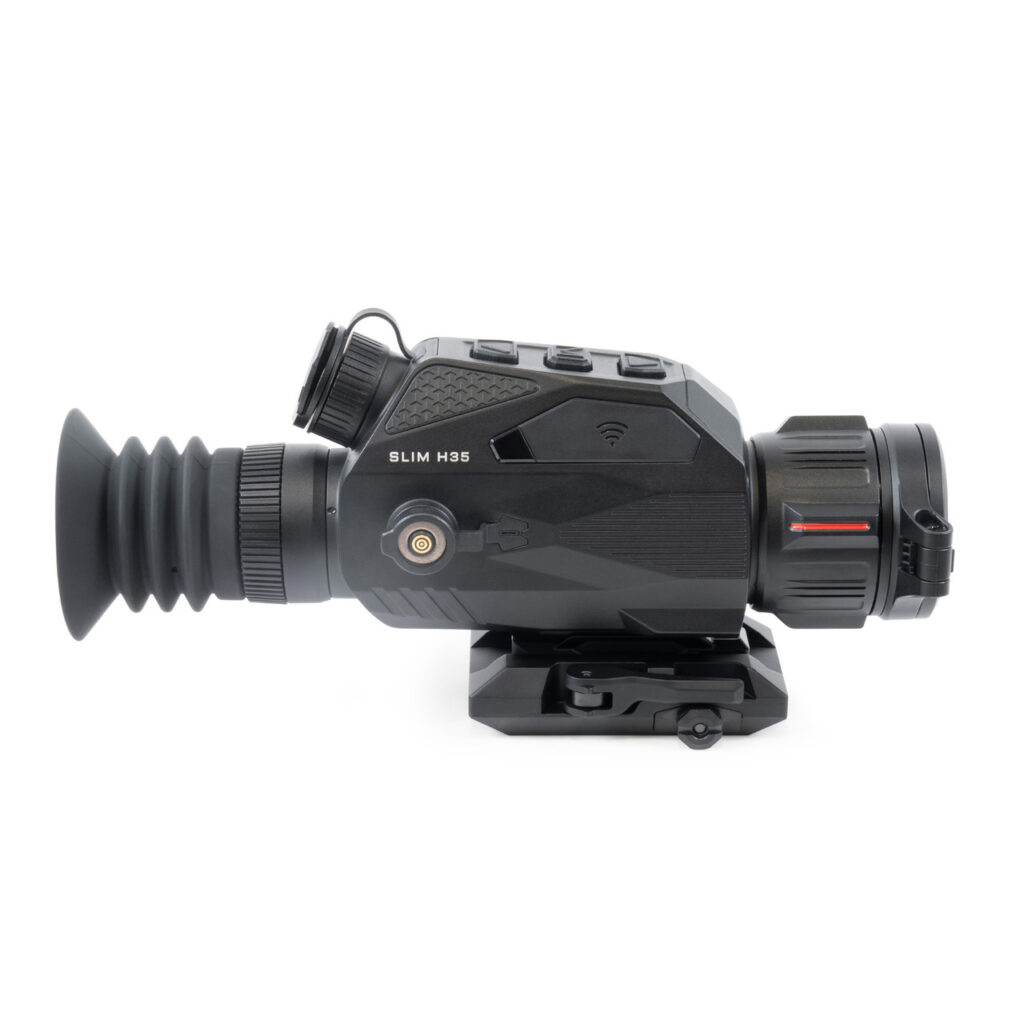

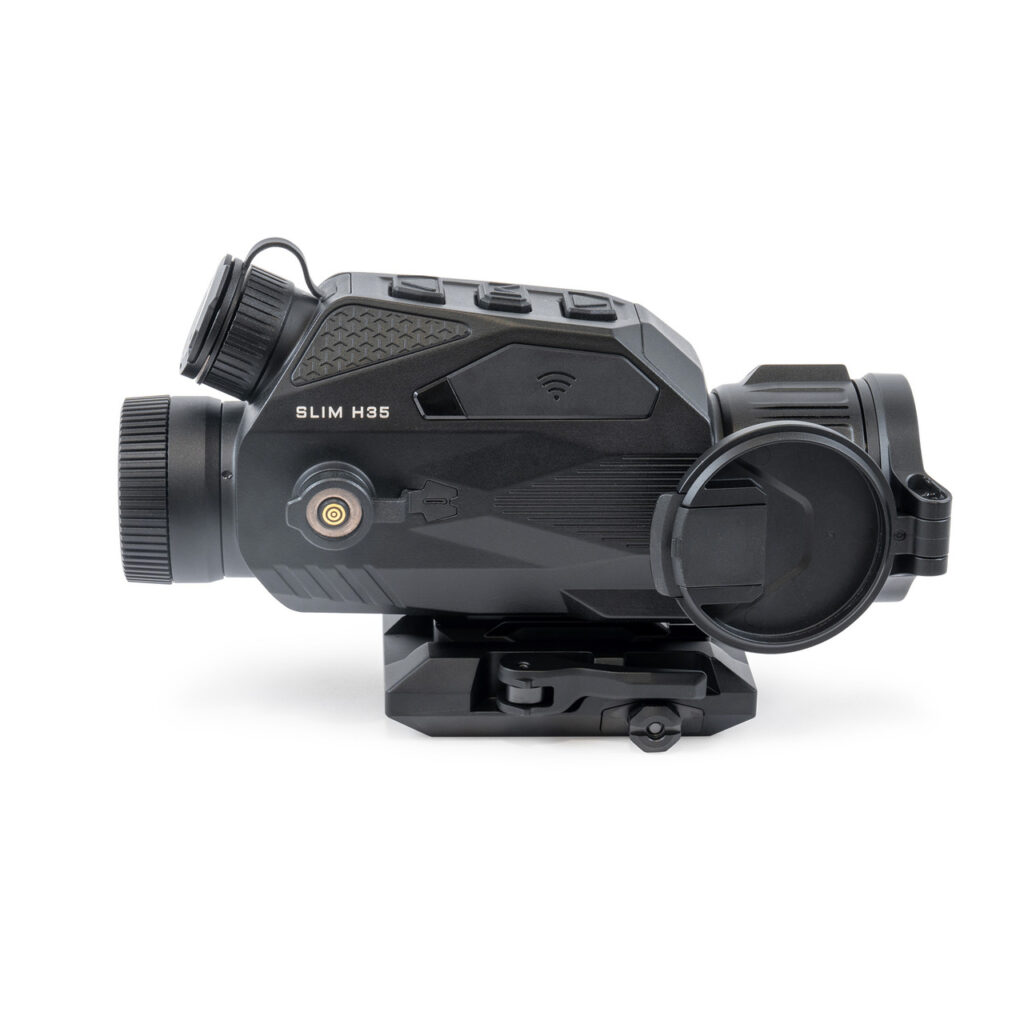

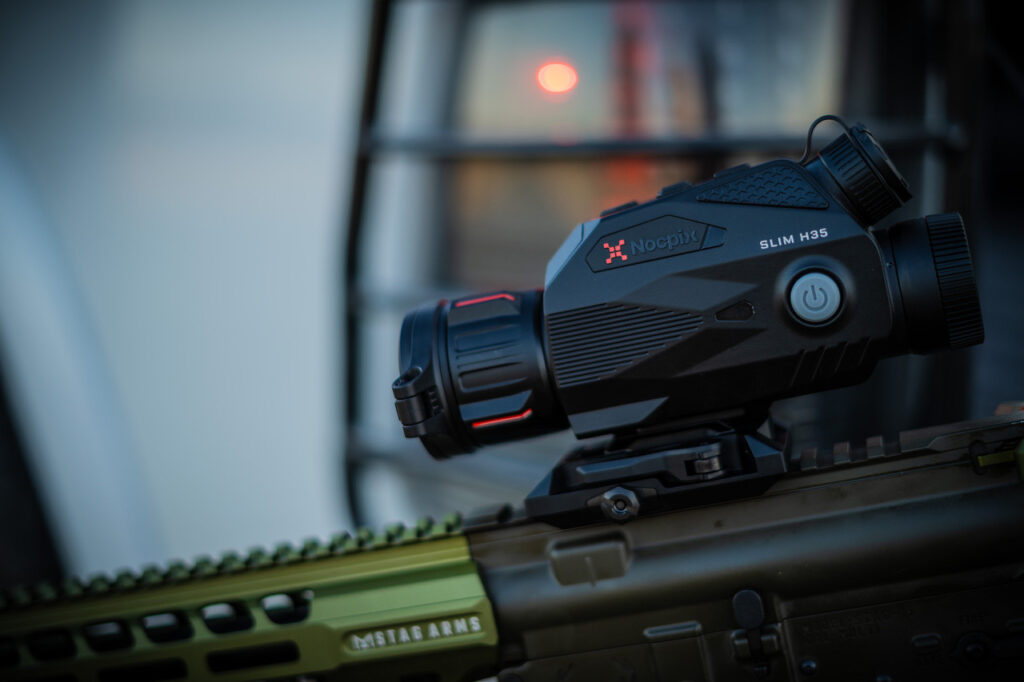

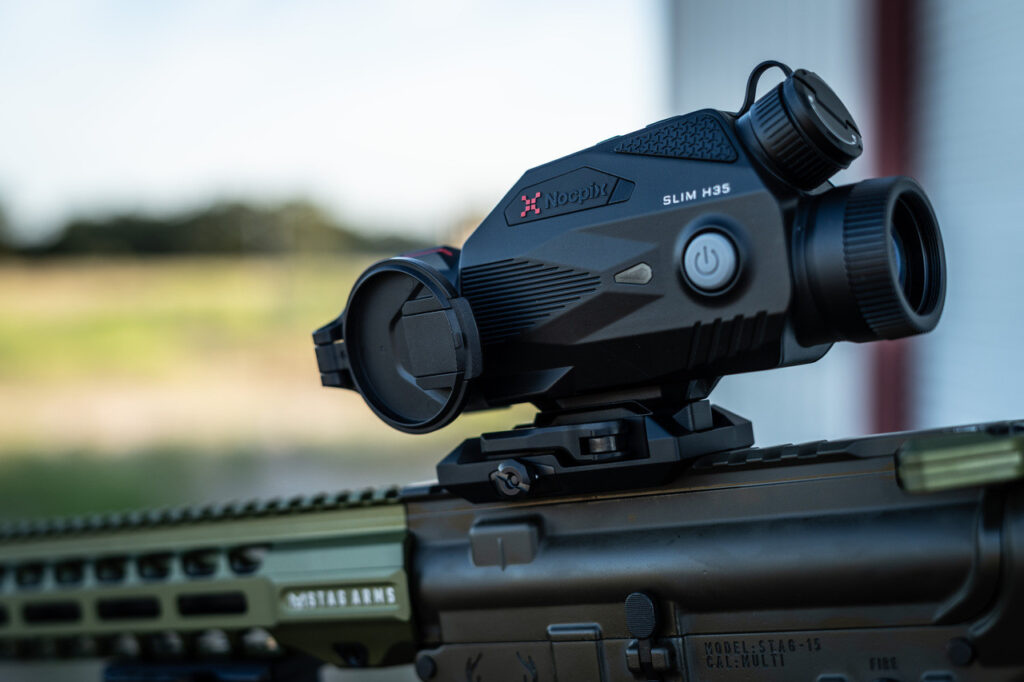

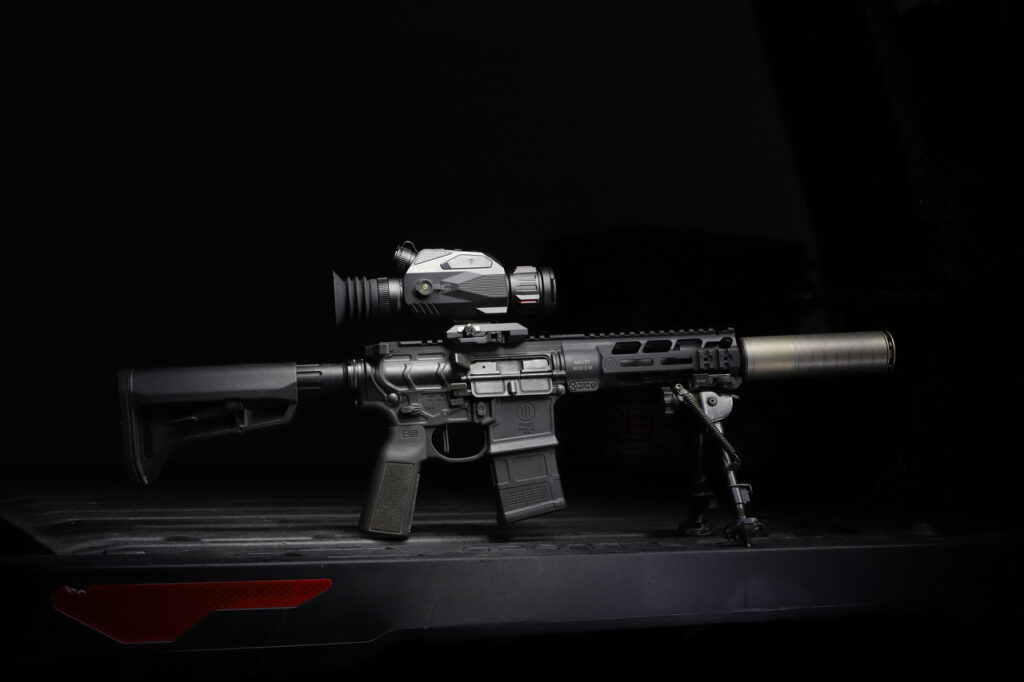

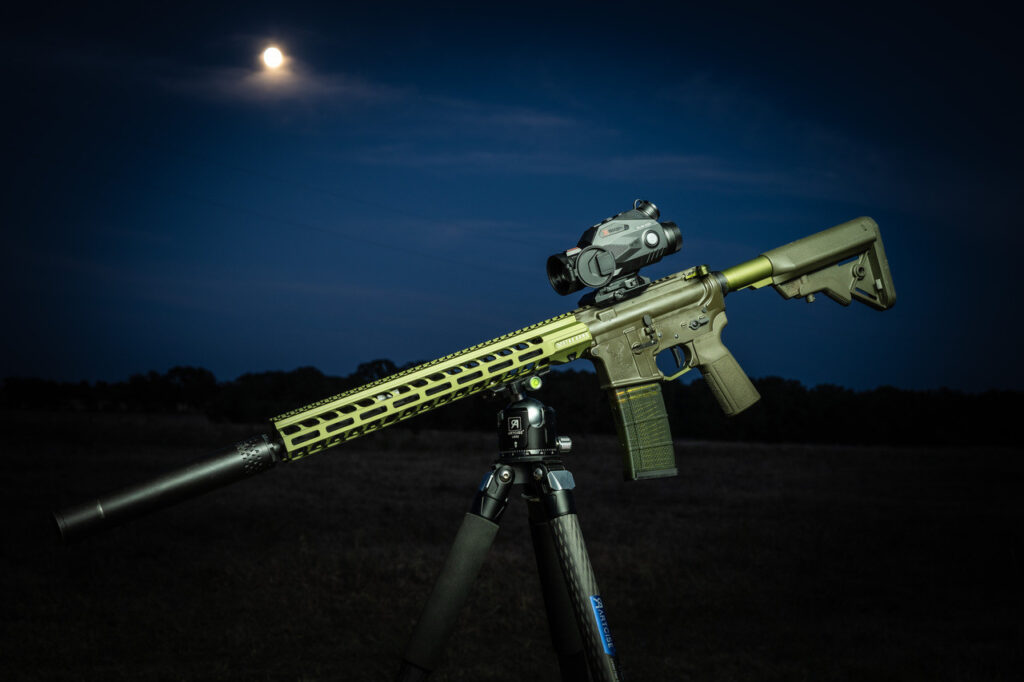

The Nocpix SLIM H35 Multi-Function Thermal Optic was designed to be a versatile thermal imaging monocular and weapon sight. The SLIM H35 offers exceptional value and features in a compact design. Engineered for versatility and ease of use, the SLIM H35 functions as both a handheld monocular and a weapon-mounted sight. Its magnesium alloy body and quiet, soft-touch buttons ensure excellent ergonomics in both configurations. The included proprietary quick-detach mounting system allows hunters to swiftly scan and reattach the optic to their rifle while maintaining zero.
Nocpix SLIM H35 Features
Ambidextrous one-handed design for seamless use as a handheld monocular or weapon sight.
Recoil-activated video that automatically records footage before and after a shot.
High-contrast 1024×768 AMOLED display for enhanced clarity and detail.

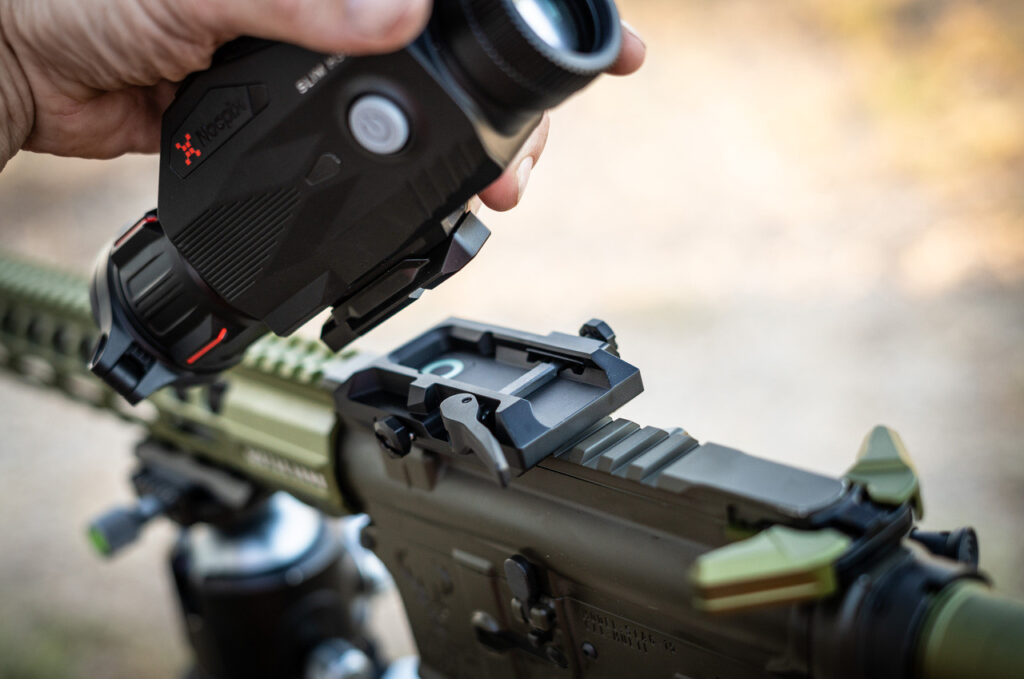

Quick-release dual-throw mount with magnetic alignment aid for fast and secure return-to-zero (1-MOA) weapon mounting.
Compatible with common 18650 style rechargeable batteries; includes IRB-2 batteries (flat-top 18650 style cell) that are easy to swap.
Quick and secure charging via the magnetic charging port.

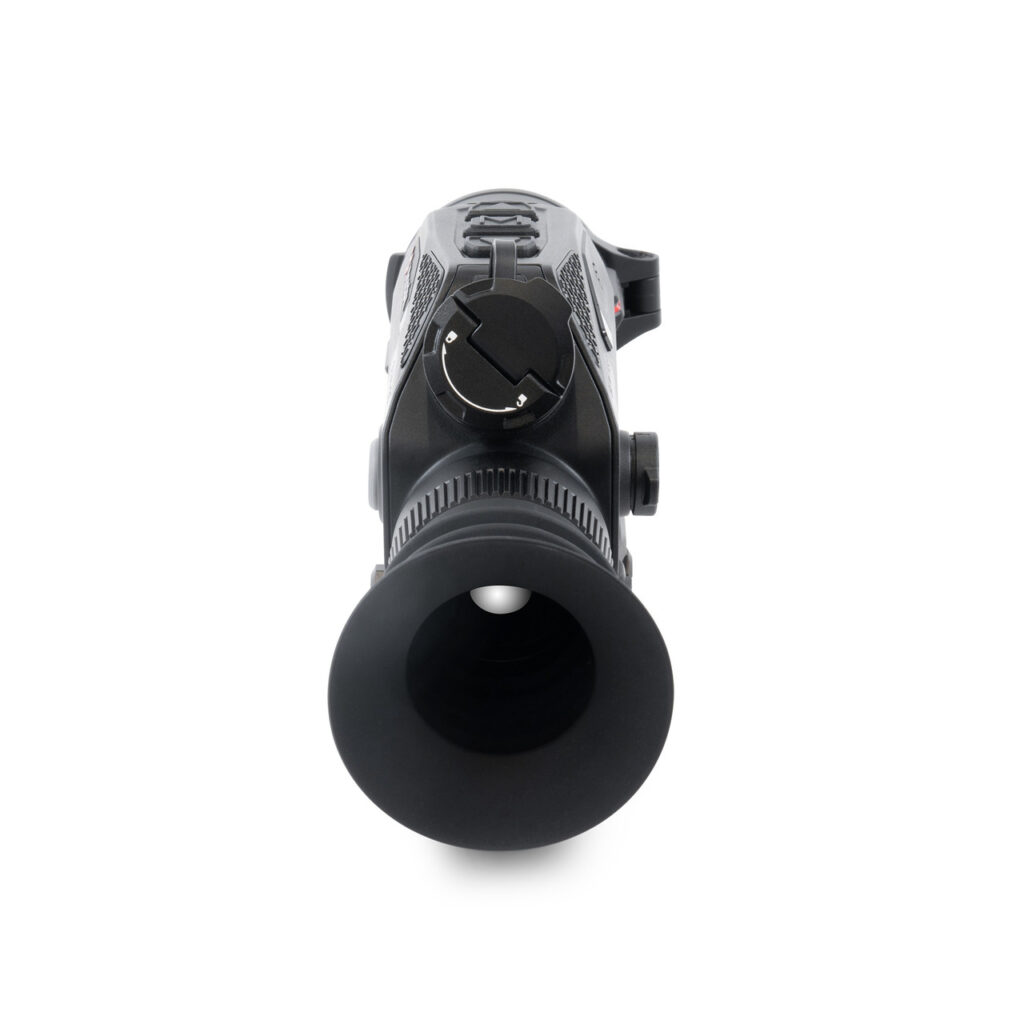

Generous eye relief and a detailed viewing experience.
Specifications
Device Technology | Thermal Imaging |
Objective Focal Length | 35mm |
Sensor Resolution | 640×512 |
Detection Range | 1750 Yards |
Sensor Pixel Size | 12μm |
Sensor Frame Rate | 50Hz |
Optical Magnification | 2X |
Digital Magnification | 4X |
Objective Diameter | 35mm |
Objective F# | 1.0 |
Eye Relief | 48mm |
Diopter Range | -5 to +5 |
Focusing Mechanism | Manual Focus |
Display Type | AMOLED |
Display Resolution | 1024×768 |
Reticle Options | 8 (1 Dynamic, 6 Static, 1 DIY) |
Color Palettes | White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian |
Storage Capacity | 32GB |
Onboard Recording | Yes |
Power Source | USB-C External, 18650 Battery |
Run Time | 4+ hours |
Connector Type | USB-C |
Wi-Fi | Yes |
Weight | 18.70 oz |
Dimensions (L x W x H) | 8.50 in. x 2.99 in. x 1.81 in. |
Housing Material | Magnesium Alloy |
For more detailed information, please refer to the Product Page.
