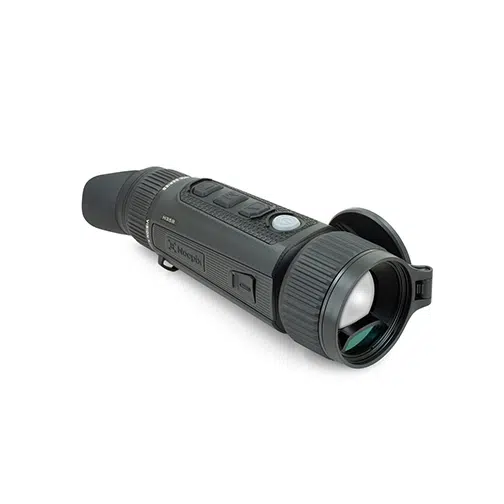

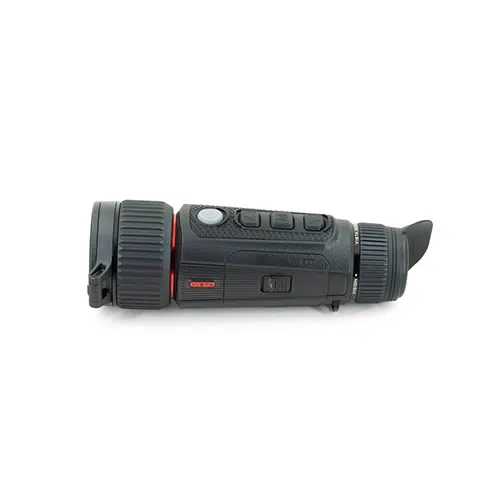

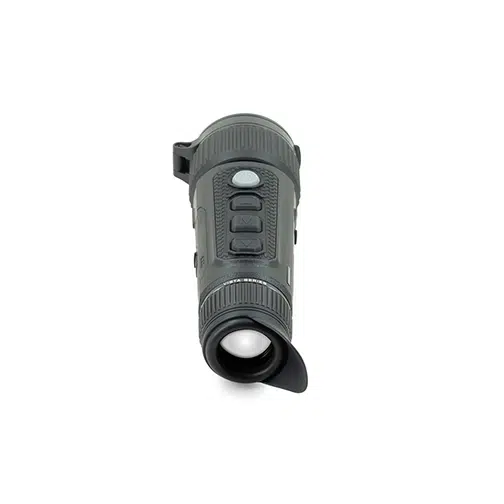

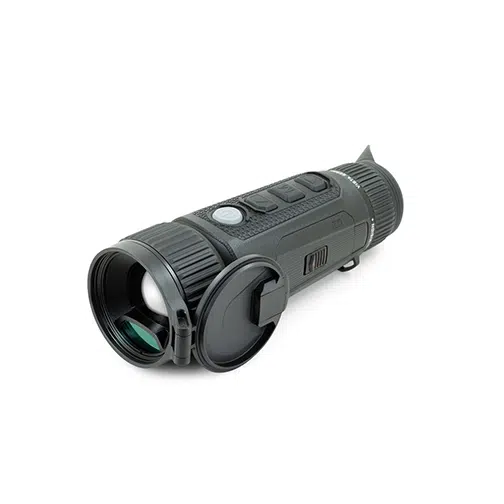

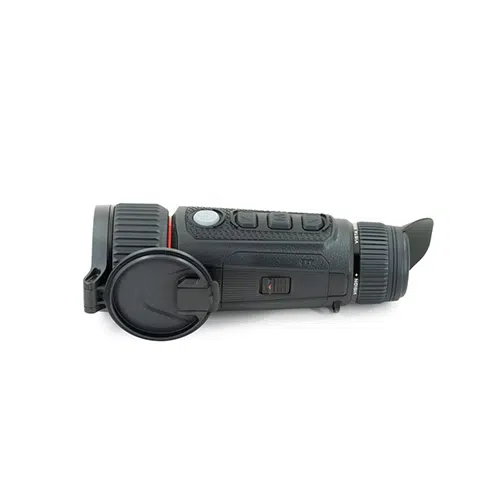

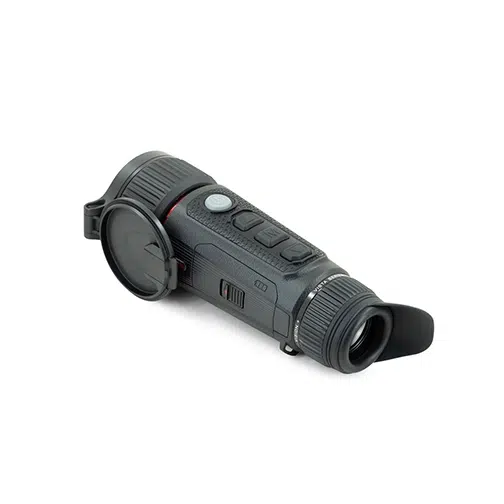

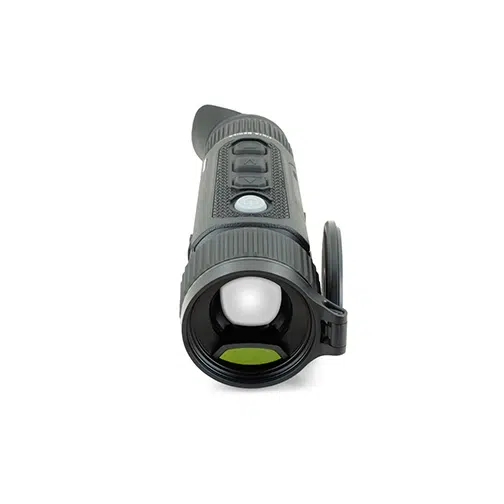

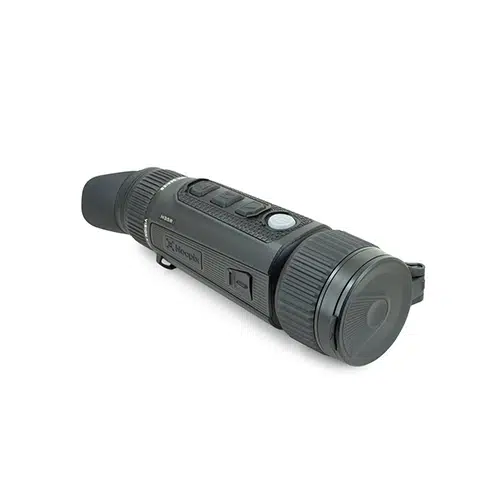

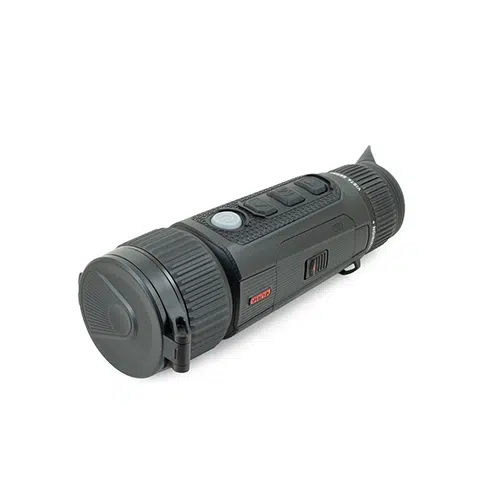

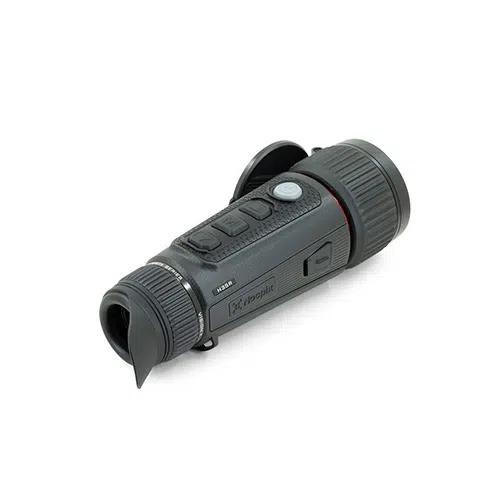

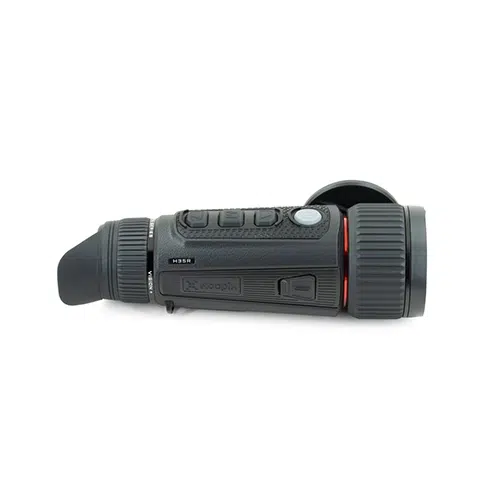

Nocpix Vista H35R Rangefinding Thermal Monocular
The Nocpix Vista H35R is a rangefinding thermal monocular that features an advanced 35mm f/0.9 germanium objective lens, offering exceptional clarity and detail, 3x native magnification, and is ideal for close and medium range hunting distances. Equipped with a high resolution 640×512 thermal sensor and an impressive ≤15mK NETD sensitivity rating, this ergonomic monocular delivers crystal clear images with remarkable detail and contrast. The lens integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. The Vista H35R includes electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display. Whether you’re scanning for coyotes or conducting night time surveillance, this is your go to tool for unparalleled thermal imaging performance. Lens integrated laser rangefinder can fire on command or continuously when scanning. It features a one of a kind circular ultra high resolution, onboard photo, video, and audio recording.
Specifications |
||||||
Display Type | AMOLED | |||||
Eye Relief | 25mm | |||||
Objective Focal Length | 35mm | |||||
Digital Magnification | 8X | |||||
Diopter Range | -4 to +6 | |||||
Vertical Angular Field of View | 9.4° | |||||
Horizontal Angular Field of View | 12.5° | |||||
Focusing Mechanism | Manual Focus | |||||
Objective F# | 0.9 | |||||
Objective Diameter | 35mm | |||||
Objective Lens Material | Germanium | |||||
Display Resolution | 2560×2560 | |||||
Detection Range | 1750 Yards | |||||
Optical Magnification | 3X | |||||
Operating Temperature Range | -4°F~122°F | |||||
Ingress Protection | IP67 | |||||
Sensor Type | Nocpix 640 | |||||
Sensor Pixel Size | 12μm | |||||
Thermal Sensitivity | <15mk | |||||
Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
Sensor Frame Rate | 60hz | |||||
Device Technology | Thermal Imaging | |||||
Sensor Resolution | 640×512 | |||||
Warranty | 5 Years | |||||
Startup Time | <10 Seconds, Instant from Standby | |||||
Rangefinder | Integrated 1200 yd LRF | |||||
Color Palettes | White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian | |||||
Picture-in-Picture | Yes | |||||
Storage Capacity | 64GB | |||||
Connector Output | Power/Data | |||||
User-Updatable Firmware | Yes | |||||
Mobile App | Yes | |||||
Run Time | 5+ | |||||
Power Source | USB-C External, IBP-7 Li-ion Battery Pack | |||||
Stand-by Mode | Yes | |||||
Connector Type | USB-C | |||||
External Power Source | USB-C | |||||
Country of Manufacture | China | |||||
Wifi | Yes | |||||
Onboard Recording | Yes | |||||
Image Capture | Yes | |||||
Video Output | Yes | |||||
Housing Material | Polymer | |||||
Weight | 22.58 oz. | |||||
Height | 3.11 | |||||
Width | 2.64 | |||||
Length | 7.48 |
