Description

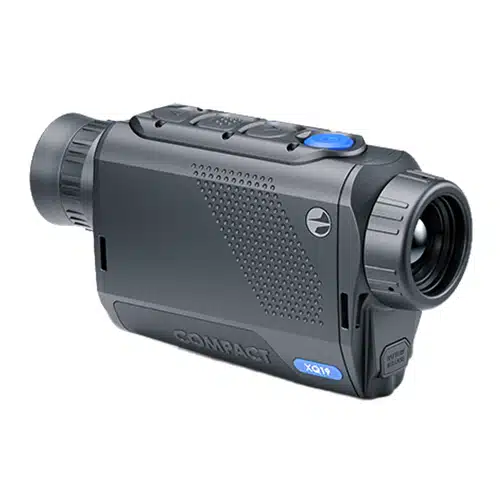

Pulsar Axion XQ19 Compact Thermal Imaging Monocular | 384×288

The Pulsar Axion XQ19 Compact Thermal Imaging Monocular delivers reliable thermal imaging performance in a compact, lightweight package that’s easy to carry and operate with one hand. Built around a 384×288 uncooled thermal sensor with a 17 µm pixel pitch and a NETD of less than 25 mK, the Pulsar Axion XQ19 Compact Thermal Monocular provides detailed thermal imagery in a portable design.

With a 19mm F/1.0 objective lens, 1.5x base magnification, up to 6x total magnification with 4x digital zoom, and a 750-meter detection range, the Pulsar Axion XQ19 Compact Thermal Monocular is designed for hunters and outdoor users who want the advantages of thermal imaging without carrying a larger device.

The Pulsar Axion XQ19 Compact Thermal Imaging Monocular’s compact aluminum-alloy housing measures just 134.5 x 38 x 71 mm and weighs approximately 0.25 kg (8.8 oz.) without the battery, making it easy to keep accessible during extended periods outdoors.

The Pulsar Axion XQ19 Compact Thermal Imaging Monocular also features a 640×400 AMOLED display, built-in 64GB memory, integrated Wi-Fi connectivity, and compatibility with the Pulsar Stream Vision 2 app. Built-in video and photo recording allows users to capture thermal footage and images directly from the device.

Pulsar Axion XQ19 Compact Thermal Imaging Monocular Key Features

• 384×288 uncooled thermal sensor
• 17 µm pixel pitch
• NETD less than 25 mK
• System NETD less than 18 mK
• 19mm F/1.0 objective lens
• 1.5x optical magnification
• Up to 6x magnification with 4x digital zoom
• 750-meter detection range
• 19.5° x 12.3° field of view
• 640×400 AMOLED display
• 50 Hz frame rate
• 64GB built-in memory
• Built-in photo and video recording
• Wi-Fi connectivity
• Stream Vision 2 app compatibility
• IPX7 waterproof construction
• USB Type-C external power connection
• APS 3 3200mAh Li-ion battery
• Up to 8 hours of operating time
• Compact aluminum-alloy housing
• 1/4-inch mounting socket

Thermal Sensor & Image Performance

The Axion XQ19 Compact uses a 384×288, 17 µm uncooled thermal sensor with a sensor NETD of less than 25 mK. Its system NETD is rated at less than 18 mK, helping the device distinguish subtle temperature differences and produce detailed thermal imagery.

The 50 Hz frame rate provides smooth image updates, while Pulsar’s image-processing technology is designed to enhance thermal image quality across changing environmental conditions.

19mm F/1.0 Objective Lens

The 19mm F/1.0 objective lens provides a 19.5° x 12.3° field of view, equivalent to approximately 34.7 x 21.5 meters at 100 meters.

The 1.5x base magnification provides a broad viewing area while maintaining the ability to increase magnification when additional detail is needed. Digital zoom provides up to 6x total magnification.

750-Meter Detection Range

With a listed detection range of up to 750 meters, the Pulsar Axion XQ19 Compact provides substantial thermal detection capability in a small handheld package.

Actual detection and identification performance can vary depending on weather, terrain, target size, thermal contrast, and other environmental conditions.

AMOLED Display

The Axion XQ19 Compact features a 640×400 AMOLED display designed to provide a clear viewing experience while keeping the overall device compact.

The +4/-5 diopter adjustment and approximately 14mm of eye relief allow the display to be adjusted to the user’s vision.

Built-In Recording & Wi-Fi

The Axion XQ19 Compact includes 64GB of internal memory for storing thermal photos and videos.

Recorded media is saved in:

• Video: .mp4
• Photos: .jpg
• Resolution: 960 x 600 pixels

Integrated Wi-Fi connectivity and compatibility with the Pulsar Stream Vision 2 application provide additional options for viewing, managing, and working with recorded thermal images and device functions.

Compact & Durable Construction

Designed for portability, the Axion XQ19 Compact features an aluminum-alloy body measuring approximately 134.5 x 38 x 71 mm.

At approximately 0.25 kg (8.8 oz.) without the battery, it is small enough to comfortably carry while traveling, hunting, or exploring outdoors.

The IPX7 waterproof rating provides protection against water exposure, while the operating temperature range of -25°C to +40°C (-13°F to 104°F) allows the monocular to be used in a wide range of outdoor conditions.

Battery & Power

The Pulsar Axion XQ19 Compact uses an APS 3 3200mAh rechargeable Li-ion battery pack.

Battery specifications include:

• Battery: APS 3 Li-ion Battery Pack
• Capacity: 3200mAh
• Operating time: Up to 8 hours at 22°C
• External power: 5V via USB Type-C
• Output voltage: 3.0–4.2V

Mounting & Compatibility

The Axion XQ19 Compact features a 1/4-inch socket, providing compatibility with suitable tripod and mounting accessories.

The device is also compatible with the Pulsar Stream Vision 2 application through its integrated Wi-Fi connectivity.

What’s Included

• Pulsar Axion XQ19 Compact Thermal Imaging Monocular
• APS 3 rechargeable Li-ion battery
• Manufacturer-supplied accessories

Package contents may vary by manufacturer configuration.

Why Choose the Pulsar Axion XQ19 Compact?

The Pulsar Axion XQ19 Compact combines a capable 384×288 thermal sensor, 19mm F/1.0 lens, 750-meter detection range, built-in recording, Wi-Fi connectivity, and an IPX7-rated housing in an exceptionally compact design.

For hunters and outdoor enthusiasts looking for a compact thermal monocular with advanced imaging features, the Pulsar Axion XQ19 Compact Thermal Monocular offers a strong combination of portability, thermal performance, recording capability, and battery life.

Purchase the Pulsar Axion XQ19 Compact Thermal Imaging Monocular today!
