Original price was: $2,199.00.$1,999.00Current price is: $1,999.00.
Backorder this item now
Fast & Free Shipping $199+

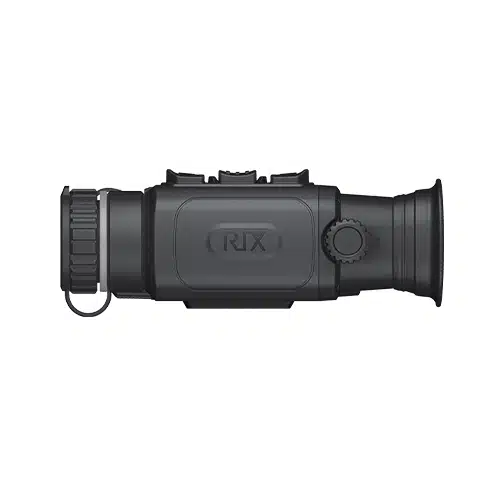

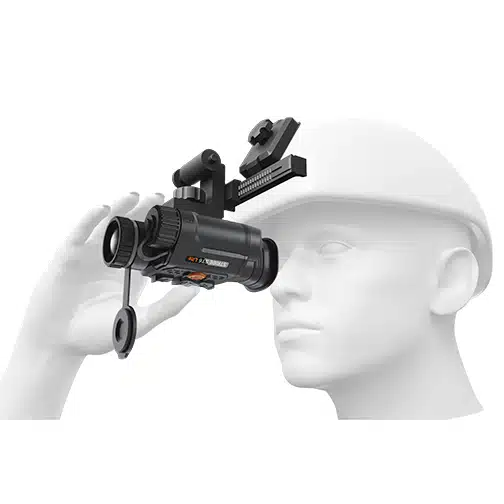

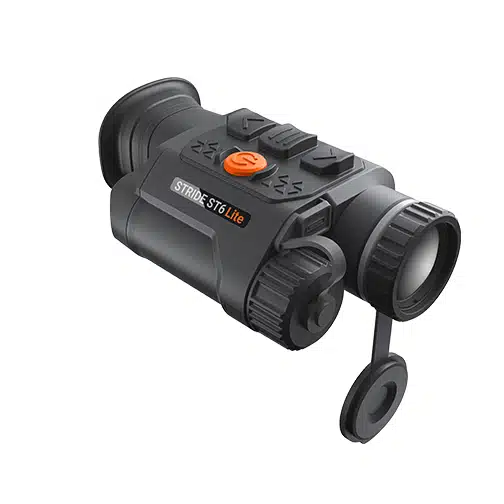

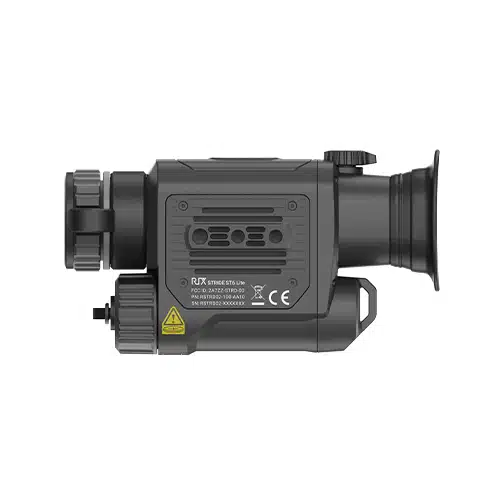

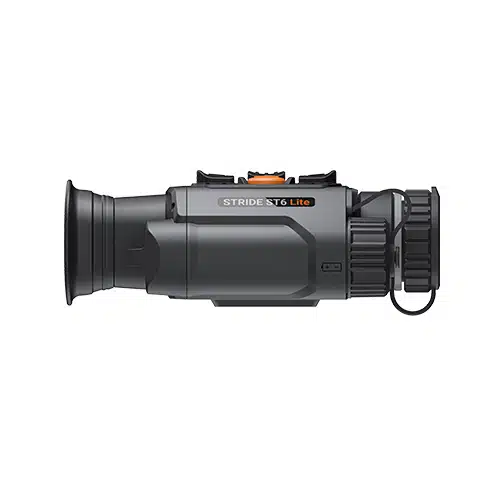

The RIX Stride ST6 Lite is a 640×512 thermal imaging monocular device. The ST6 Lite can be used as a hand-held device or mounted to a helmet for the ultimate scanning set up.
(These two adapt kits are compatible only with specified production batches.)
| RIX STRIDE | ||
| Product | ST3 Lite | ST6 Lite |
| Sensor | ||
| Resolution | 384 X 288 | 640 X 512 |
| Pixel pitch | 12µm | |
| NETD | <20mK | |
| Frame rate | 50Hz | |
| Optics | ||
| Objective lens | 75 mm, F1.0 | 25 mm, F1.0 |
| Magnification | 7x to 6x | |
| Field of view (HxV) | 17.5°x13.1° | |
| Digital zoom | 1x / 2x / 4x | |
| Eye Relief | 20mm | |
| Diopter adjustment | -5D to +5D | |
| Detection Range | 780 m / 852 yd | 7300 m / 1423 yd |
| Display | ||
| Type | OLED | |
| Resolution | 1024 X 768 | |
| Video Recorder | ||
| Video/ Photo Resolution | 1024 X 768 | |
| Video/ Photo Format | .mp4/ .jpg | |
| Built-in Memory | 32 GB | |
| Environmental Characteristics | ||
| Degree of Protection, IP code | IP67 | |
| Opreating temperature range | -20 °C to +50 °C / -4°F to 122 °F | |
| Product | ST3 Lite | ST6 Lite |
| Connections and Compatibilities | ||
| Battery type | 18650 (70 mm length) | |
| Wi-Fi | Support | |
| Operation time on batterypack (at t=25 °C/72 °F) | 4h | |
| External Power Supply | 5V (Type-CUSB) | |
| Weight & Size | ||
| Dimensions | 120×71 x47mm/
4.7 x 2.8 x 1.9 inch |
129×71 x47mm/
5.1 x 2.8 x 1.9 inch |
| Weight | 190 g / 042 lb | 205 g / 045 lb |
