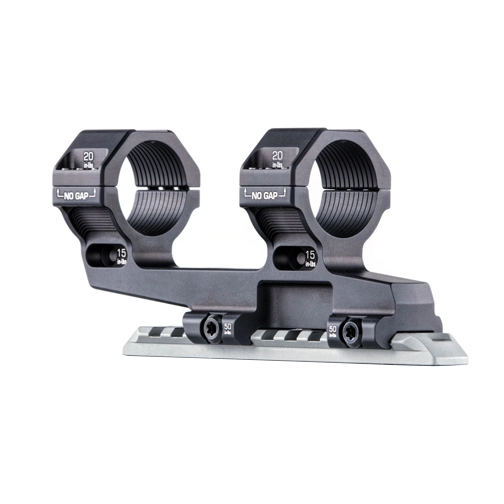

The Scalarworks FUSE 02 30mm Bolt-On Riflescope Mount delivers a lightweight, rigid, and highly refined mounting solution for LPVOs and high-powered riflescopes. Designed for MIL-STD-1913 Picatinny rails, the 1.70-inch optic center height provides a comfortable, heads-up shooting position while offering additional clearance for top-mounted accessories.

Precision machined from 7075-T6 aluminum and reinforced with 4140H steel hardware, the FUSE/02 is engineered to provide exceptional strength without unnecessary weight. Its bolt-on design creates a secure, repeatable connection to the rifle, while the 0 MOA cant maintains a neutral mounting platform for your optic. The mount weighs approximately 5.6 ounces, making it an excellent choice for weight-conscious builds where durability and rigidity remain essential.

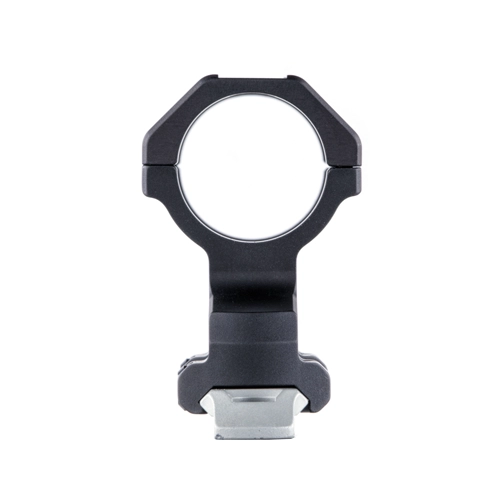

One of the FUSE 02’s standout features is Scalarworks’ integrated LevelDrive system, which simplifies scope installation by providing a mechanical method for leveling the optic without relying on conventional bubble levels. Six-screw ring caps help distribute clamping force around the 30mm scope tube, while the asymmetric ring design creates a more level platform for compatible secondary optics.

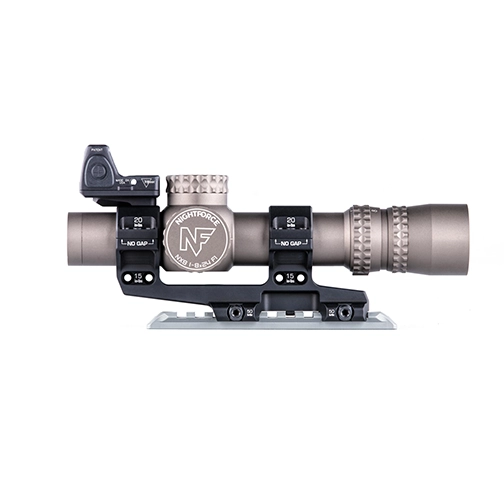

The Scalarworks FUSE 02 is also compatible with Scalarworks KICK extension mounts, allowing select red-dot sights to be positioned at 12 o’clock above the riflescope. Finished with Type III hardcoat anodizing and flash-nitride-treated components, the Scalarworks FUSE 02 combines rugged construction, innovative features, and minimalist design in a mount built for serious rifle setups. Made in the USA.

IN THE BOX:

• Mount

  Scalarworks FUSE 02

• Fasteners

  (12) #8-40 Nylon patched

• Tools

  Scalarworks T15 Torx driver bit

  Scalarworks T25 Torx driver bit

  Scalarworks LevelDrive
