Description

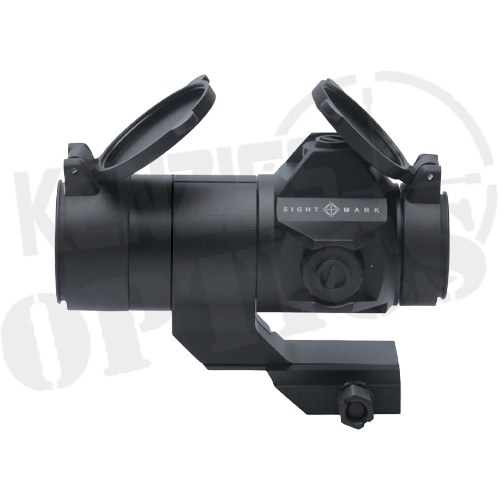

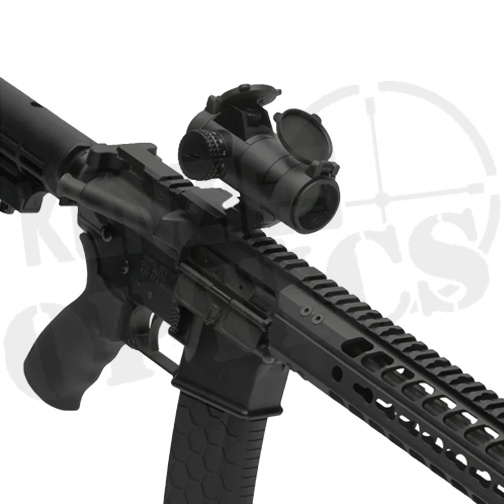

Sightmark 1×30 Element Red Dot Sight
The Sightmark 1×30 Element is a 2 MOA Red Dot Sight that is perfect for both eyes open use on AR rifles and shotguns. The Element features a practical clamp mount, reducing bulk and creating a sleek, streamlined design. The most useful of all the Element’s features is the adjustment caps; the Element’s windage/elevation caps can be flipped and used as tools for making adjustments. The design of the sight also naturally protects these adjustment caps with raised edges. A rugged and compact aluminum alloy housing keeps the Element 1″ shorter than the competition and provides increased durability in the field.
This versatile red dot is night vision compatible and works in conjunction with magnifiers to help users at further distances. It is waterproof up to 3 ft. and shockproof up to 3 ft. on concrete, the Element provides anywhere from 100-15,000 hours of battery life from on CR2032 depending on which brightness setting is being used. The 1×30 red dot includes flip up lens covers, battery and manual.
Sightmark 1×30 Element Red Dot Sight Features
Streamlined clamp mount design
Protected adjustment caps
Unlimited eye relief
IP67 waterproof rating – Submersible to 1m/3ft
Rugged, compact aluminum alloy housing
Night vision compatible
Shockproof design
Included in Package
Flip up lens covers
CR2032 Battery
Manual
Specifications |
||||||
| Reticle, Type | 2 MOA | |||||
| Reticle, Color | Red | |||||
| Setting, Brightness | Off, 1-9, 1-2 NV | |||||
| Magnification | 1x | |||||
| Diameter, Objective Lens | 30 mm | |||||
| Eye relief (in/mm) | Unlimited | |||||
| Elevation Range of Adjustment | 110 MOA | |||||
| Windage Range of Adjustment | 110 MOA | |||||
| Adjustment Value | 1 MOA | |||||
| Parallax Setting | 10 yd
(9.1 m) |
|||||
| Finish/Color | Matte black | |||||
| Body Material | 6061-T6 aluminum | |||||
| Maximum Recoil | .338 Win Mag Caliber | |||||
| IP Rating (waterproof) | IP67 – waterproof to 1m/3ft for 1 hour | |||||
| Nitrogen Filled | Yes | |||||
| Shockproof | Yes, 3ft | |||||
| Fog Proof | Yes | |||||
| Lens Coating | AR red | |||||
| Mount Type | Picatinny | |||||
| Battery Type | CR2032 | |||||
| Battery life, hours | 100 – 15,000 Hours | |||||
| Battery Voltage, V | 3 V | |||||
| Operating temperature, F/C | -22 to 160 F
(-30 to 71 C) |
|||||
| Length (in/mm) | 4.4 in
(111 mm) |
|||||
| Width (in/mm) | 2.6 in
(67 mm) |
|||||
| Height (in/mm) | 2.9 in
(73 mm) |
|||||
| Weight | 9.8 oz. | |||||
