Sightmark Wraith HD 2-16×28 Digital Scope


Backorder this item now

Want to be notified when this product is back in stock?

SKU: SM18021 Category: Tag:

Sightmark Wraith HD 2-16×28 Digital Scope

The Sightmark Wraith HD 2-16×28 Digital Scope will allow you to view the world in an ultra crisp view. The scope features a 850nm IR illuminator and a 1920×1080 CMOS sensor to detect objects up to 200 yards at night. The 8x digital zoom and 1280×720 FLCOS screen delivers fine detail imaging, and boasts black and white, or green night vision and daytime color mode that displays images in sharp, full color clarity. With its lower base magnification range, paired with a wider field of view, the Wraith 2x is ideal for fast moving hog and varmint hunting. The 10 reticle options in 9 colors, 5 weapon profile saves and built in 1080p HD video recording enables users to preserve their memories. The Sightmark Wraith 2-16×28 Digital Scope is housed in a durable aluminum body, with an IP55 water resistant rating to withstand harsh conditions for many years. The Sightmark Wolfhound Locking QD Mount is compatible with this Sightmark Wraith HD.

Sightmark Wraith HD 2-16×28 Digital Scope Features

2x magnification

1080P HD digital imaging

Daytime color mode

Night vision mode

Built-in HD video recording

8x digital zoom

10 reticle options with 9 colors

Power input

Additional weaver rail for accessories

5 weapon profile saves

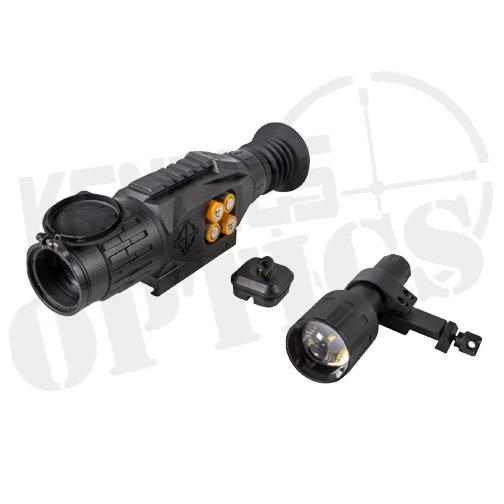

Included in Package

IR flashlight

Objective lens cover

Fixed picatinny mount

Quick start guide

Product Manual


Type of Sensor CMOS sensor
Sensor resolution, pixels 1920×1080
Display Type FLCOS
Display Resolution, pix. 1280×720
Built-in Video Recorder Availability Yes
Maximum memory card supported, Gb 256
Format of video clip AVI
Resolution of video clip 1080/720
Format of photo files JPEG
Resolution of photo files 1080/720
Memory capacity Approximately 7 hours video with 64Gb SD card
Magnification 2 – 16 x
Diameter, Lens, mm 28
Digital Zoom 1-8x
Lens Focus, mm 40.1
Relative aperture, D/f’ 2.4
Field of view, m@100m 14
Field of view, ft@100yd 42
Minimum focusing distance, ft/m 16.4 / 5
Eye Relief 2.4 / 60 in / mm
Diopter Adjustment -6 to +3
Emitter LED
IR Wavelength 850nm
Equivalent IR Power, mW ~1060 on high, ~540 on medium, ~400 on low
Battery Life (with IR) 2 hours on high (2x CR123A Battery Type for IR)
Night Vision Detection Range 200 / 183 yd / m
Power Supply 6 v
Battery Type 4xAA
Battery life, hours 3.5 video mode / 4.5 preview mode
External Power Supply 5V via microUSB
Windage & Elevation click value 1/5 MOA
Elevation Range of Adjustment 70 MOA
Windage Range of Adjustment 170 MOA
Number of Preloaded Reticles 10
Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
Body Material Aluminum
Accessory rail mount Picatinny
Operating Temperature 20 to 122 / – 6 to + 50 F / C
Waterproof Rating IP55 – water resistant
Nitrogen Purged No
Shockproof Yes, 3ft
Maximum Recoil .308
Tube size, in/mm N/A
Length 10 / 255 in / mm
Width 2.6 / 65.5 in / mm
Height 3 / 77 in / mm
Weight, oz 33.3 (with batteries)
