Sionyx IR Illuminator Kit


Backorder this item now

Want to be notified when this product is back in stock?

Sionyx IR Illuminator Kit

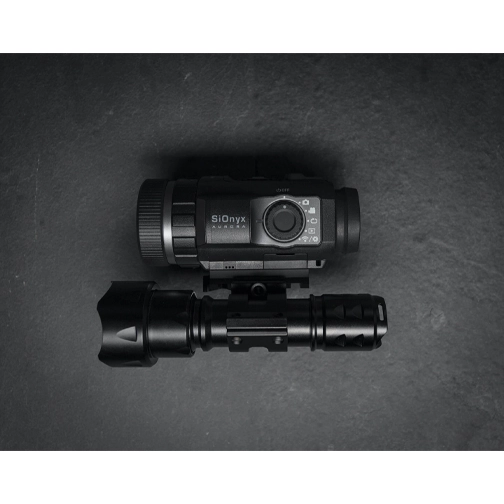

If you are looking for a way to optimize your Sionyx Aurora camera then, the Sionyx IR Illuminator Kit is just what you are looking for. The key component of the kit is the 940nm, 5W LED infrared illuminator. This IR torch is tuned specifically for the Aurora sensor for the perfect balance of color and brightness to identify targets out to 150 meters and to recognize targets well beyond.

The kit offers multiple mounting configurations. The included 25mm flashlight mount attaches the IR torch to any standard 1913 Picatinny rail. For flexibility and expanded use, Sionyx also developed a custom Picatinny rail with a 1/4-20mm screw to thread into the bottom of Aurora cameras, enabling you to attach the IR torch directly to Aurora.

The IR torch runs on a single 18650 rechargeable lithium battery for 2 hours of continuous run time. The kit includes an additional battery and USB charger to keep you running through the night. All these items are packaged in a weather tight hard case with custom die cut foam.

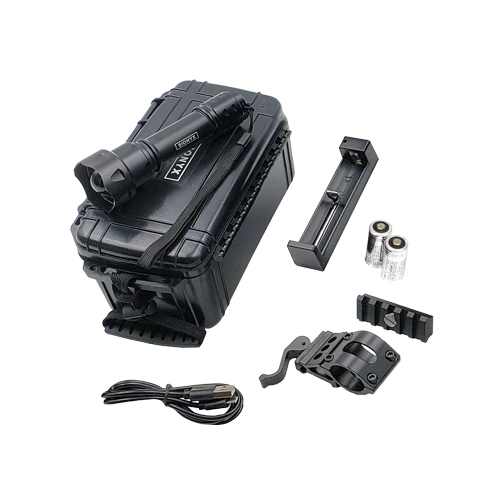

Included in the Box

940nm 5W LED Illuminator

Picatinny 1/4-20 Threaded Rail

25mm Flashlight Mount for Standard 1913 Picatinny Rails

(2) 18650 Batteries

Battery Charger & USB Cable


Hardshell case

Spec Sheet


IR Output 5W
LED Wavelength  940NM
Working Voltage 3-4.2V
Beam Divergence  Focused spotlight to 40DEG flood
Range of Beam Up to 150M
Battery Life 2 hours
Head Diameter 45mm
Body Diameter 25mm
Case Material Black Anodized Aluminum
Weight 167 grams (excluding battery)
