TriggerTech Pistol Caliber Carbines Adaptable Trigger

The TriggerTech Pistol Caliber Carbine Adaptable Trigger was designed to be the most accurate and dependable trigger on the market. It features Zero Creep Technology, and the drop in trigger has a short two stage action that is designed to feel like a 1911 trigger. The trigger provides a true zero creep break, extremely short overtravel, a sub 0.015” tactical reset and offers great reliability in all environments.

Utilizing CLKR Technology, the pull weight is quickly and confidently adjusted in 2oz increments from a set screw with the trigger installed. Due to there being truly zero creep, most shooters report the pull weights feeling ~0.5lbs lighter than a friction-based trigger of the same measured pull weight. Changing the pull weight does not affect hammer force so you get dependable primer strikes at every weight. Frictionless Release Technology, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life.

As Zero Creep Technology does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.  All pull weights and measurements are approximate.

The installation guide is directed to experienced professional gunsmiths who understand the workings of their AR rifle and know how to fully detail strip the lower receiver. If you do not have these skills, we strongly suggest you retain the services of a competent professional gunsmith to install your trigger and perform all important safety checks.

Intended Use

Competition, precision shooting, harsh environments, law enforcement, target shooting.

SIG MPX

The SIG MPX trigger features a bumper in the housing that transfers the majority of the blow back energy to the lower receiver. This was designed with safety in mind and helps to protect the trigger.

AR-9

The AR-9 trigger’s hammer design has more mass compared to our AR15 model, which increases inertia. The Center of Percussion is also lower in comparison to AR15, which is specific to the AR-9 platform. This allows maximum energy delivery upon impact with the firing pin, while reducing vibration and wear.

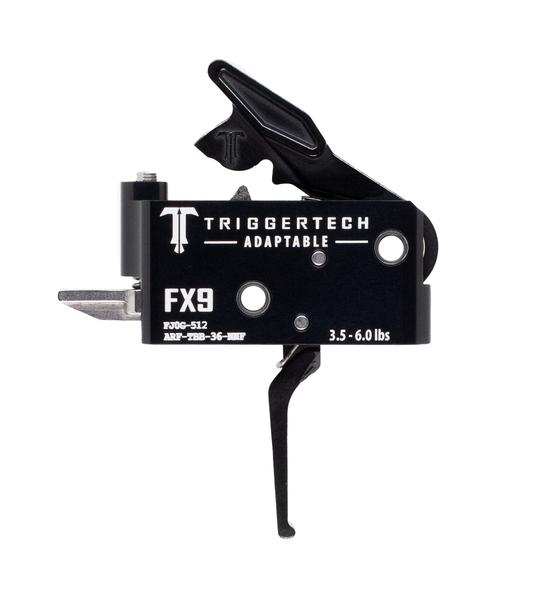

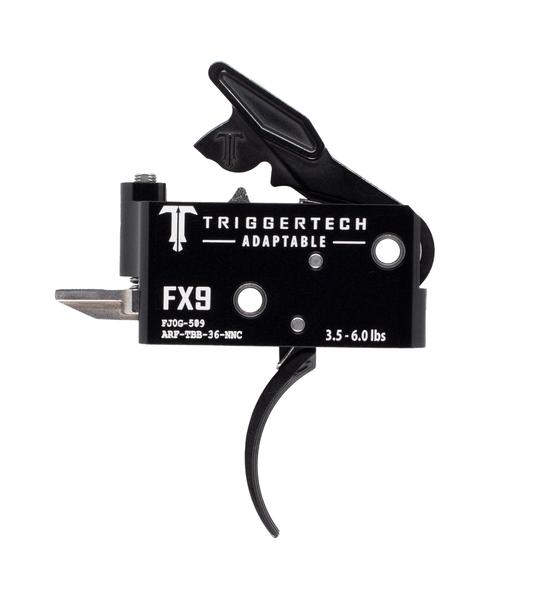

Freedom Ordinance FX-9

The FX-9 trigger is nearly identical to the AR-9 trigger design, except it has lower disconnect engagement to provide the extra clearance required by the FX-9 platform bolt carrier group. This trigger is ideal for PCC’s that have a lower bolt carrier group.


Specifications

Lever Type Straight or Curved
Zero Creep Yes
TKR Yes – Min Overtravel
CLKR Yes – Inc. Adjustable
Flat Wire Yes – Hard Primer Compatible
Take Up Distance 0.035″
Overtravel Sub 0.015″
Reset Sub 0.030″
Pin Size Mil Spec 0.154″
Material 7075 Aluminum & Stainless Internals
Weapon Platform SIG MPX, AR-9, FX-9
Warranty Product Lifetime
Housing 7075 Aluminum (anodized)
Key Components 440C Stainless Steel
PVD Black PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.






More from TriggerTech

Additional information

Weight N/A
Gun Make

AR-9, Freedom Ordinance FX-9, SIG MPX

Trigger Options

Curved Trigger, Flat Trigger
