Description
Trijicon ACOG 4×32 LED Riflescope – Red Chevron MRAD Tree Reticle

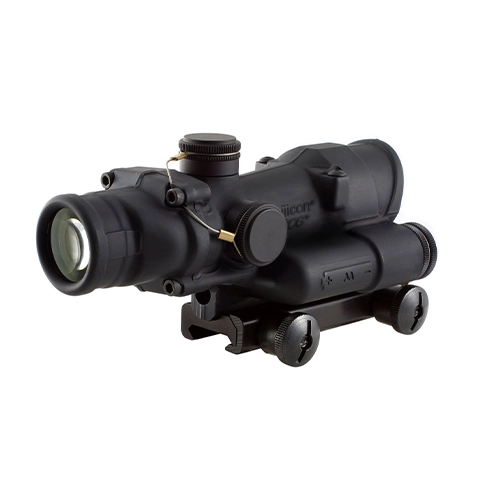

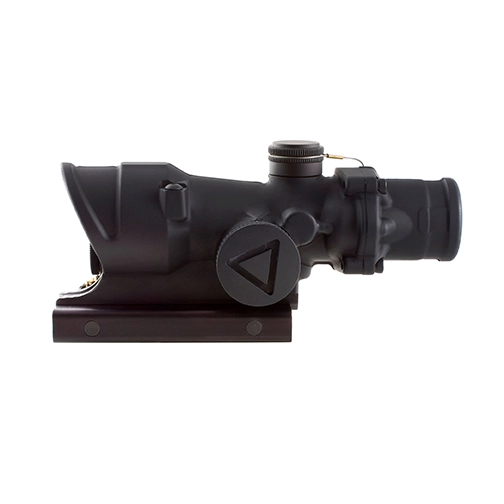

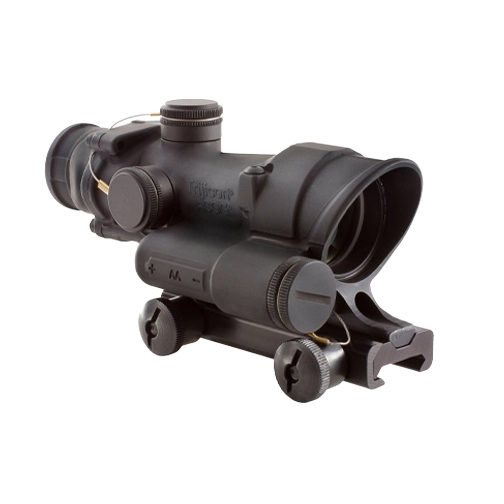

The Trijicon ACOG 4×32 LED Riflescope with Red Chevron MRAD Tree Reticle (TA02-C-100833) combines fixed-power magnification, adjustable reticle illumination, and rugged construction in a compact optical platform. Built for shooters who value dependable performance and precise aiming references, this 4×32 ACOG delivers a consistent sight picture with user-controlled illumination for changing light conditions.
Red Chevron MRAD Tree Reticle

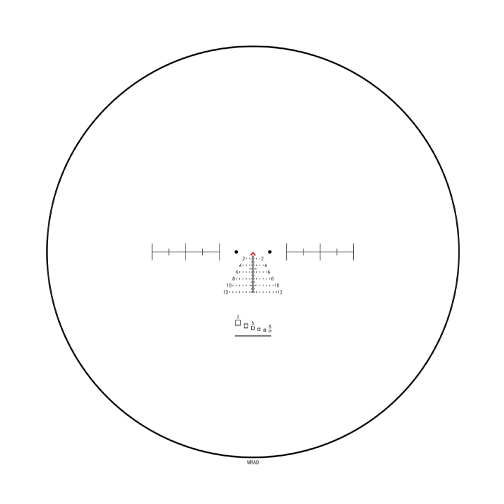

The MRAD Tree reticle features a central red chevron surrounded by graduated milliradian (MRAD) holdover and windage references. The horizontal stadia and numbered ranging marks provide additional aiming references for making corrections at varying distances, while the descending tree-style pattern helps shooters compensate for elevation and wind without relying exclusively on turret adjustments. Because the reticle uses MRAD-based subtensions, it supports consistent measurement and correction using compatible milliradian-based ballistic calculations. Combined with the ACOG’s fixed 4x magnification, the Red Chevron MRAD Tree reticle offers a structured aiming solution for shooters who want more than a simple center aiming point.
Featuring 4x magnification and a 32mm objective lens, the ACOG provides a fixed-power optical configuration designed for clarity and simplicity. The Red Chevron MRAD Tree reticle incorporates a central red chevron with graduated MRAD holdover references, giving shooters additional aiming points for elevation and windage holds at different distances. Its tree-style layout provides useful reference markings while keeping the primary aiming point easy to identify.
Unlike battery-free ACOG models that use tritium and fiber optics, this LED-illuminated ACOG offers six adjustable brightness settings, with an off position between settings. Powered by a single AA battery, the illumination system provides more than 12,000 hours of runtime on setting four under specified test conditions. This adjustable design lets users tailor reticle brightness to their environment.
The housing is constructed from 7075-T6 forged aluminum with a matte black finish, providing a durable foundation for demanding use. The optic also features a 1.5-inch eye relief, a 7-degree field of view, and compatibility with night vision devices.
The Trijicon ACOG TA02-C-100833 delivers fixed 4x magnification, an illuminated Red Chevron MRAD Tree reticle, and user-adjustable brightness in a rugged riflescope designed for versatile shooting applications.
