Description

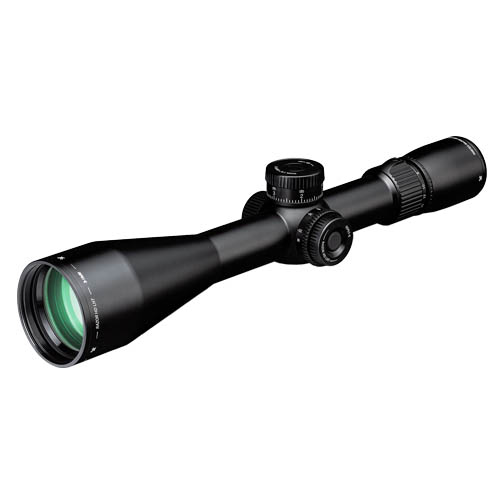

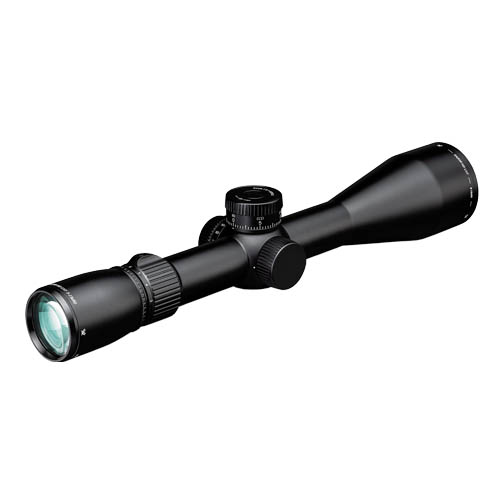

Vortex Razor HD LHT 3-15X50

The Vortex Razor HD LHT 3-15X50 was designed to do it all. From dark timber whitetails, to executing precision long range shots on an open country mule deer, and everything in between, there’s the lightweight, second focal plane Razor HD LHT. Stunning, High Definition optical system gives a crystal clear sight picture with tack sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve given up nothing with the Razor HD LHT.

Vortex Razor HD LHT 3-15X50 Overview

HD Optical System

Optimized with select glass elements to bring exceptional resolution, cut chromatic aberration and give outstanding color fidelity, edge to edge sharpness and light transmission.

XR Plus Fully Multi Coated

Ultimate anti reflective coatings on all air to glass surfaces give maximum light transmission for peak clarity and the pinnacle of low light performance.

APO System

Index matched lenses correct color across the entire visual spectrum.

Optically Indexed Lenses

Optimize image sharpness and brightness from edge to edge.

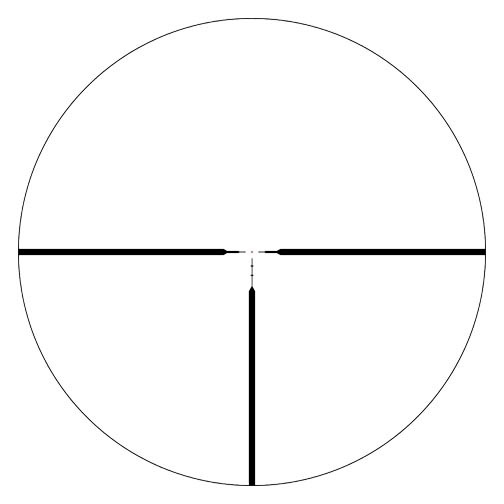

Second Focal Plane Reticle

Scale of reticle maintains the same ideally sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Illuminated Center Dot

Daylight bright illuminated center dot gives a precise point of aim in all light settings.

Tube Size

30 mm diameter gives maximized internal adjustment and strength.

Single Piece Tube

Maximizes alignment for better accuracy and optimum visual performance, as well as ensures strength and being waterproof.

Aircraft Grade Aluminum

Made from a solid block of aircraft grade aluminum for strength and rigidity.

ArmorTek

Ultra hard, scratch resistant coating protects outer lenses from scratches, oil and dirt.

Waterproof

O-ring seals stops moisture, dust and dirt from getting in for reliable performance in all settings.

Shockproof

Rugged build withstands recoil and impact.

Fog proof

Argon gas purging stops fogging over a wide range of temperatures.

Locking Elevation Turret

Integrated locking mechanism stops accidental adjustments. Elevation turret gives fast, accurate, easily read elevation adjustments. Patent pending.

Large Diameter Capped Windage Turret

Bring fast, accurate and easily read windage adjustments. Cap give external protection for windage turret.

RevStop Zero System

Patented streamlined design brings an easy to set, rock solid return to zero after turret adjustments.


Specifications

Magnification 3 to 15 x
Objective Lens Diameter 50 mm
Eye Relief 3.8 inches
Field of View @ 100 yds 35.3 to 7.0 ft
Tube Size 30 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Capped
Adjustment Graduation .10 MRAD
Travel Per Rotation 6 MRAD
Max Elevation Adjustment 23 MRAD
Max Windage Adjustment 23 MRAD
Parallax Setting 20 yds to ∞
Length 13.3 in
Weight 20.5 oz
