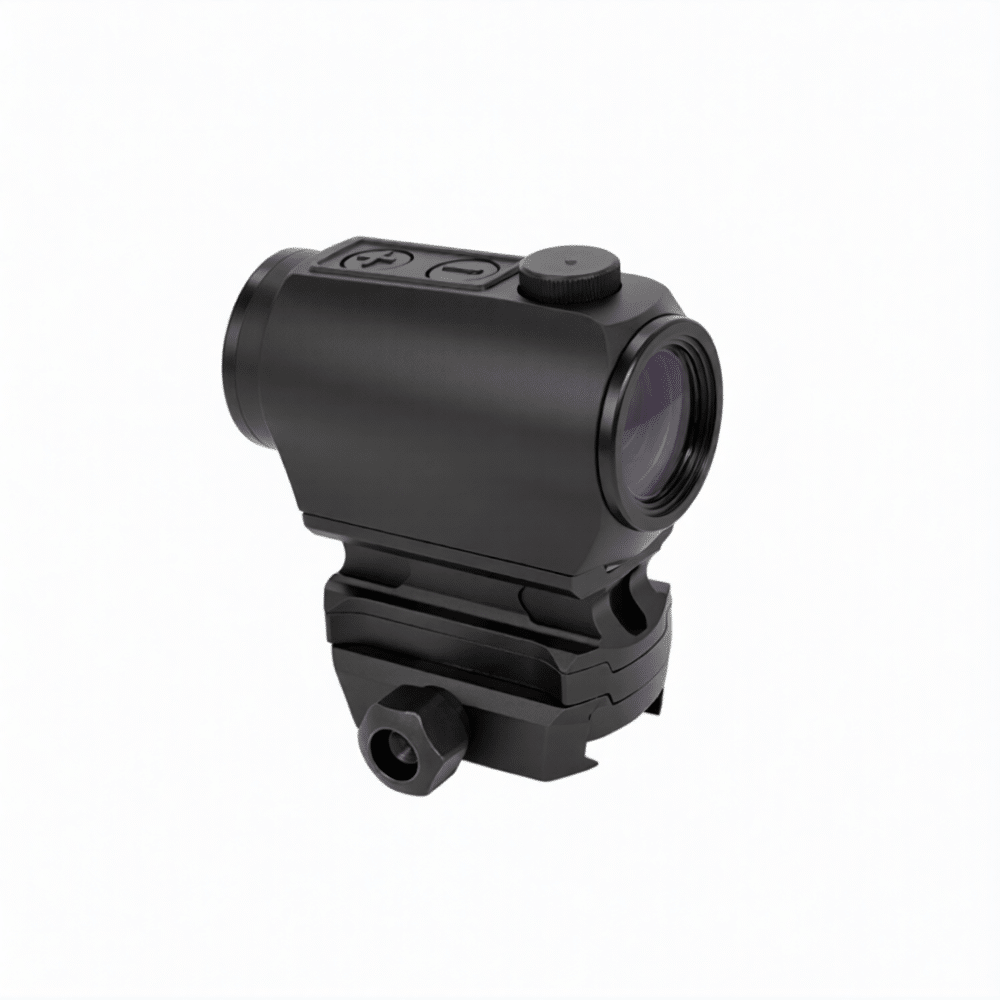

Warne Aimpoint T1 Red Dot Riser
The Warne Aimpoint T1 Red Dot Riser was designed and made in the USA. It offers easy height adjustments between absolute and lower 1/3 co-witness in one package to fit all T1/T2 interface red dot optics. All riser mounts that Warne offer share a robust mounting base, while the top is engineered specially for different red dot styles.
Warne Aimpoint T1 Red Dot Riser Features
Height w/o insert Absolute Co-Witness
Height w/insert lower 1/3rd Co-Witness
T1-T2 type interface
Fits the T1-T2, H1-H2, Crossfire, Romeo 5 Red Dot and Holosun 403, 503, 515, 530
All risers include a .180” thick spacer
Designed and MADE IN USA
Assembly Instructions for 6101M – Aimpoint
Assemble base, mount and sight with supplied T-10 screws.
Starting on the underside of the base insert supplied T-10* screws up through the bottom into your sight & loosely tighten all 4 screws
Continue to tighten to a max of 18 in/lb
Place mount on rail and tighten nut to a max of 65 in/lb
*Use longer screws with spacer plate, shorter screws w/o spacer
