Description

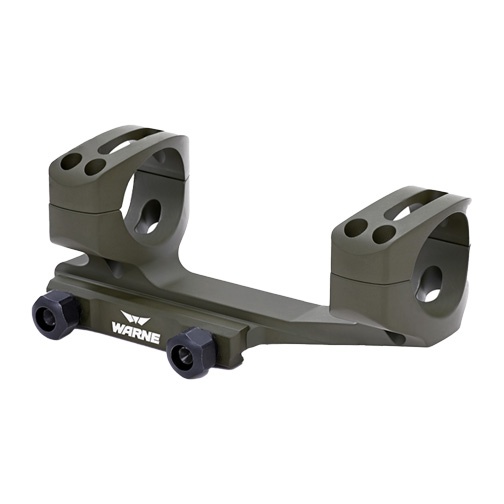

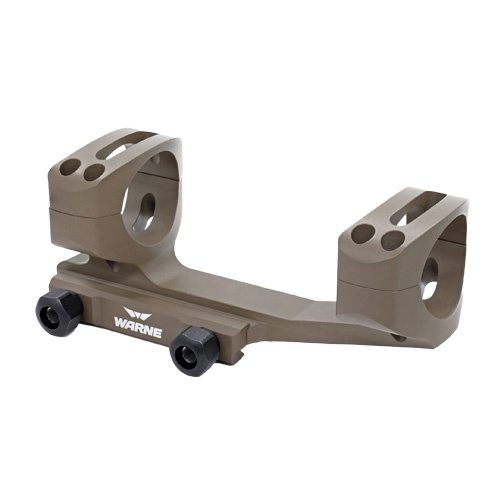

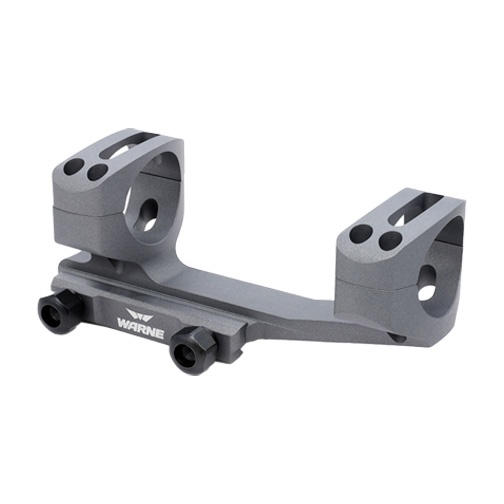

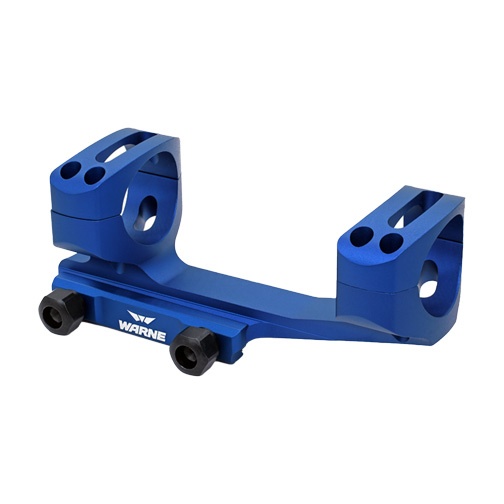

Warne XSKEL Cantilever Mount

The Warne XSKEL is based on Warne’s innovative R.A.M.P. Mount platform, this Gen II Edition has all the features you need. The X-SKEL Mount offers a lightweight scope mounting solution for your MSR style firearm with the same durable, return to zero reputation that you’ve come to expect from Warne. This mount is CNC precision machined from 6061 aluminum and they have been able to reduce the weight by over 30%, compared to Warne’s R.A.M.P. Mount by utilizing a skeletonized body and ring caps. The Warne XSKEL provides an additional inch of forward cantilever, compared to the original SKEL Mount, as well as a 1 piece side clamp design for additional strength. The extra cantilever provides proper eye relief when using scopes with large eye boxes and will give extra space behind the mount for accessories like the Warne A645 45° side mount adapter.

Warne XSKEL Cantilever Mount Features

Lightweight, skeletonized aluminum body and caps to reduce overall weight without sacrificing reliability.

#8 Torx style fasteners with steel threaded inserts to prevent stripping.

Additional 1 Inch cantilever forward design to provide additional eye relief.

Places your optic at the Ideal Height for MSR and similar platforms.

Dual 1/2″ tactical nut attachment, 65 in/lb. of torque is recommended.

Mount is 30mm, 34mm or 1 in.

 Made is USA

Available in Black, Blue, Dark Earth, OD Green, Red and Tactical Gray

Warne Lifetime Warranty

Installation

Loosen both nuts on the Warne  XSKEL Mount and install on your Picatinny style rail with the cantilever forward (Warne recommends mounting the XSKEL with the front cross bolt in the farthest forward slot on AR15 Flat Tops.) Push the XSKEL Mount towards the muzzle and tighten both hex nuts to 65 in/lb. Remove the four cap screws from each top cap with the supplied T-15 wrench and remove the top caps. Place your scope in the XSKEL Mount and replace the top caps and screws. Slowly tighten cap screws evenly and leave loose enough to adjust for eye relief. Level the reticle and tighten the cap screws in a crisscross pattern to 25 in/lb.


More from Warne

Additional information

Weight N/A
Color

Black, Blue, Dark Earth, OD Green, Red, Tactical Gray

Ring Size

1 in., 30mm, 34mm
