Description

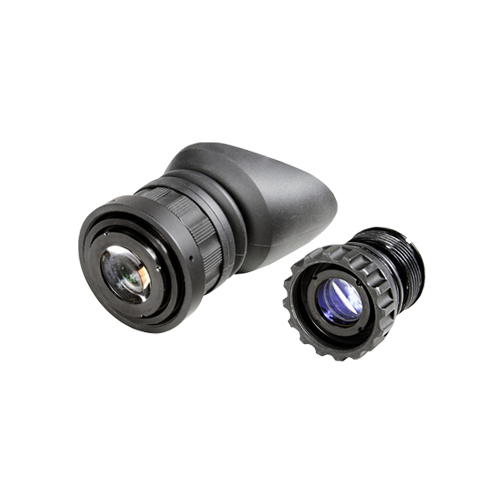

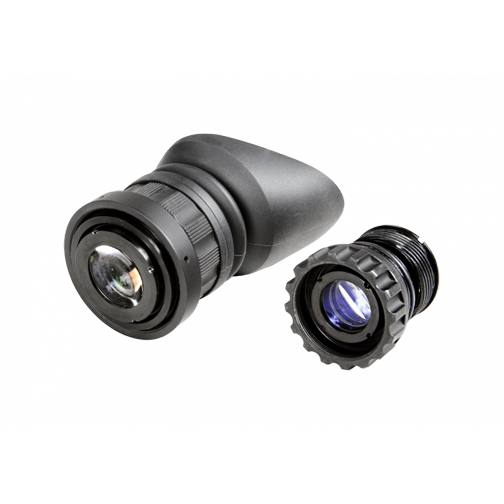

AGM 500 FOV 1x19mm f/1.26 Lens Upgrade Kit for PVS-14/PVS-14 Omega
The AGM 500 FOV 1x19mm f/1.26 Lens Upgrade Kit will upgrade your field of view from 40 degrees to 51 degrees. It will help improve your situational awareness while reducing neck strain from keeping your head on a swivel. The kit has a matched eyepiece and objective lens. You can wear them while doing any task with the focus distance under 10”, and a winged eyecup to improve usability with a wide exit pupil and long eye relief.
AGM Lens Upgrade Kit Features:
Set Includes Eyepiece and Objective Lens
Increases Field of View to 51°
1x19mm; f/1.26 Lens System
Improves Situational Awareness
Compatible With:
1. AGM PVS-14 OMEGA 3NL1
2. AGM PVS-14 OMEGA 3NL2
3. AGM PVS-14 OMEGA NW
4. AGM PVS-14 OMEGA 3NW
5. AGM PVS-14 OMEGA NL1
6. AGM PVS-14 OMEGA NL2
7. AGM PVS-14 NL3
8. AGM PVS-14 NL2
9. AGM PVS-14 3NL3
10. AGM PVS-14 NW
11. AGM PVS-14 3NL2
12. AGM PVS-14 NL1
13. AGM PVS-14 3NL1
14. AGM PVS-14 3NW
Specifications |
||||||
| Magnification | 1x | |||||
| Lens System | 19mm f/1.26 | |||||
| Field of View | 51° | |||||
| Close Focus Distance | 9.8″ / 25 cm | |||||
| Exit Pupil | 5.0 mm | |||||
| Eye Relief | 17.0 mm | |||||
| Diopter Adjustment | -6 to 2 | |||||
| Dimensions Objective Lens | 1.5 x 1.5 x 1.” / 3.7 x 3.7 x 3.7 cm | |||||
| Dimensions Eyepiece | 3.1 x 2.2 x 2.2″ / 8.1 x 5.6 x 5.6 cm, with Eyecup | |||||
| Weight Objective Lens | 1.8 oz / 52.0 g | |||||
| Weight Eyepiece | 3.3 oz / 94 g, with Eyecup | |||||
