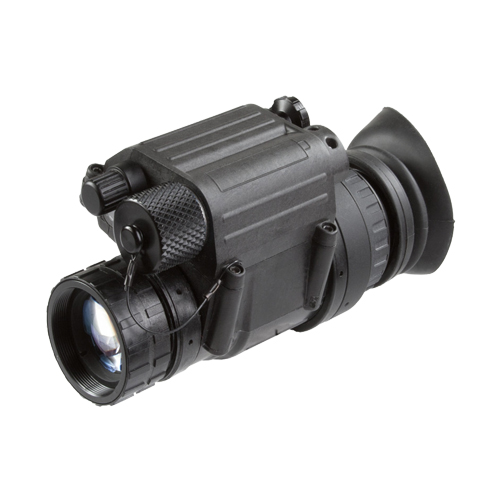

AGM PVS-14 3AW1 Night Vision Monocular Auto-Gated White Phosphor

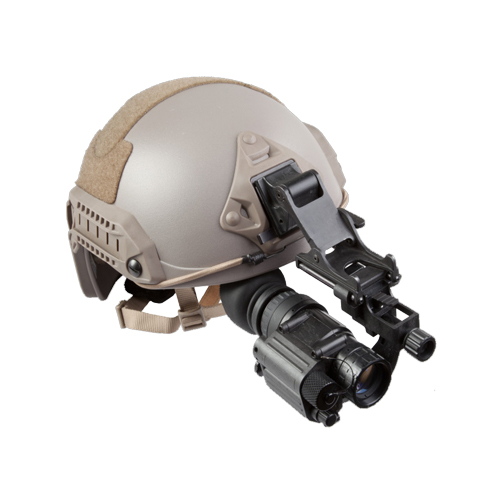

The AGM Global Vision PVS 14 Night Vision Monocular is a rugged, lightweight, multi purpose night vision device that has repeatedly proven itself in combat. The PVS 14 design was originally assigned by the United States Military for nighttime operations. This monocular is used globally in some of the most challenging settings. The PVS 14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, giving night vision capabilities to daytime optical sights.

 The PVS 14 monocular conforms to 810G Military standards, and is of the highest quality form and function. The PVS 14 monocular is a full featured unit, weighing less than 12.4 oz. The unit includes manual gain control, an automatic bright light shut off feature, and a built in Infrared (IR) illuminator. The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut off feature helps make sure the high quality photocathode tube is protected. AGM Global Vision PVS 14 includes an array of optional accessories to support virtually any operation.

AGM PVS-14 3AW1 Features

Compact, rugged design

Waterproof

Weapon mountable

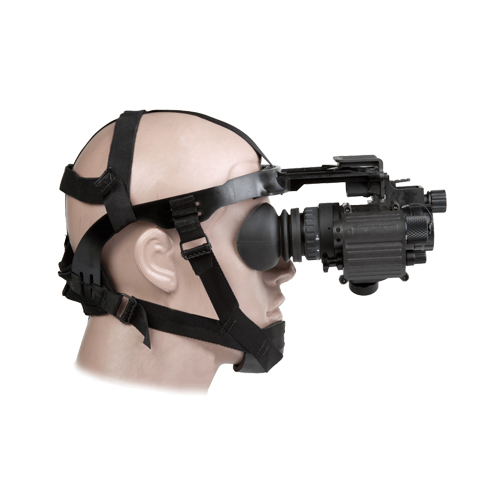

Head or helmet mountable for hands free usage

Manual gain control

Ergonomic, simple, easy to operate controls

Built in Infrared illuminator and flood lens

Limited Three year warranty

Package Includes

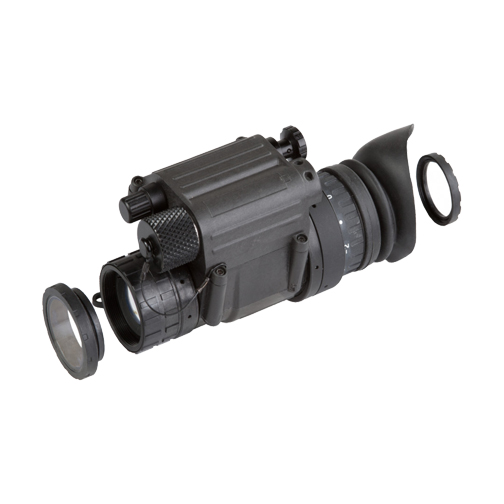

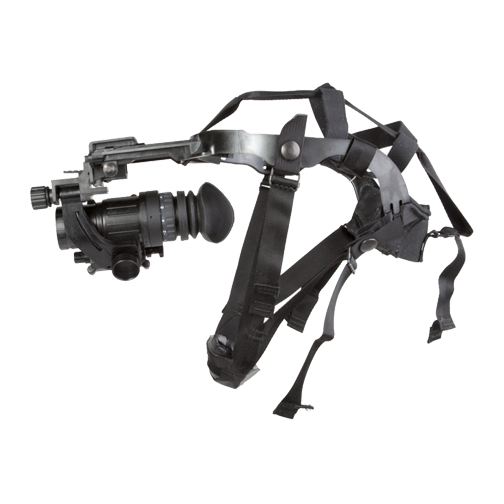

Head Mount Assembly, Brow Pad, Eye Cup, Helmet or Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, and Battery

Specifications

Image Intensifier Tube Gen 3 Auto Gated “White Phosphor Level 1”
Resolution 64-72 lp/mm
Field of view cleanness by zone Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.

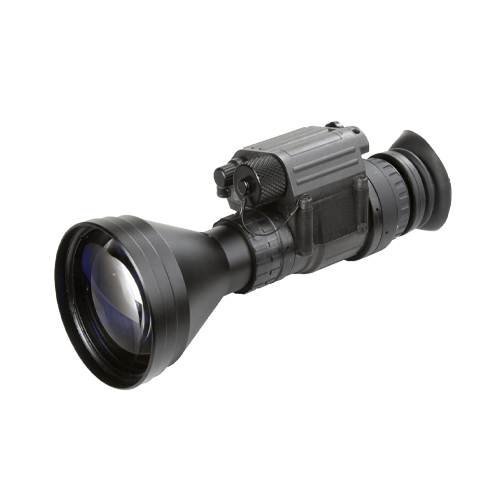

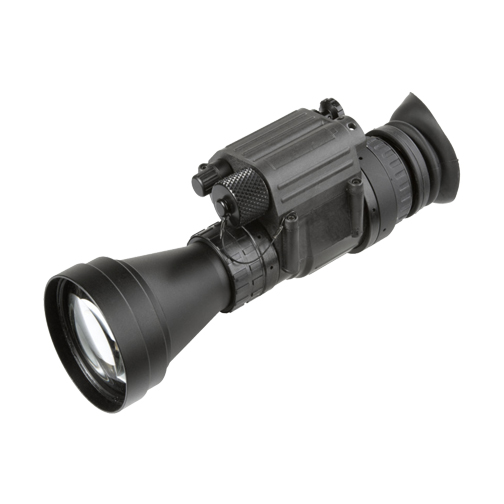

Magnification 1, 3 x and 5 x optional
Lens System 26 mm; F/1.2
FOV 40°
Focus Range 0.25 m to ∞
Diopter Adjustment -6 to +4 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Infrared Illuminator Yes
Manual Gain Control Yes
Bright Light Cut Off Yes
Automatic Shut Off System Yes
Battery Type One AA Alkaline
Battery Life Up to 50 hrs at 20°C
Operating Temperature Range -60° F to 120° F
Storage Temperature Range -60° F to 185° F
Weight 12.4 oz
Dimensions 4,5 x 2,5 x 2,7 in
