Description

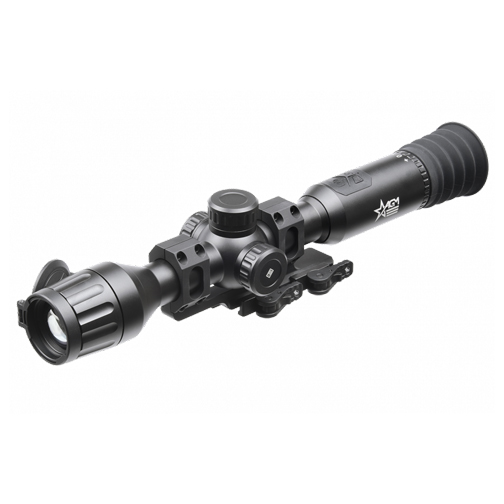

AGM Adder TS35 384 Thermal Imaging Scope

The AGM Adder TS35 384 is a thermal imaging scope that features a 384×288 high sensitivity thermal detector and 1024×768 OLED monitor. Developed for 24 hour operation under any weather and environmental conditions.

The scope is equipped with unique dual power system. Two built in 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. WiFi module for live video streaming and video/images recording via application are also available.

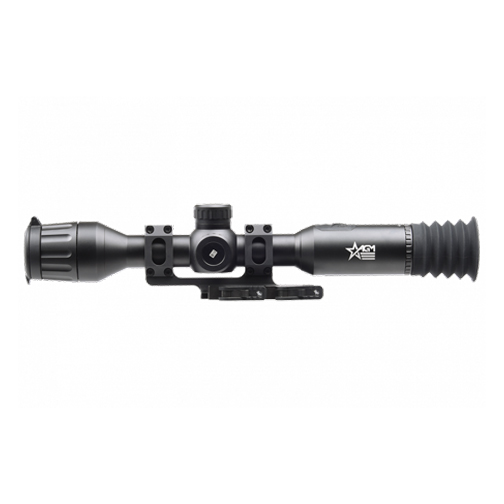

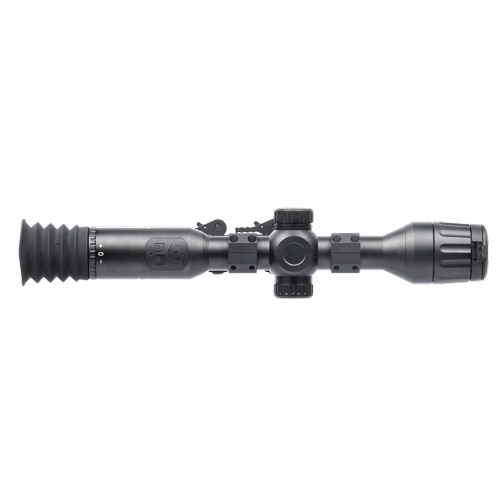

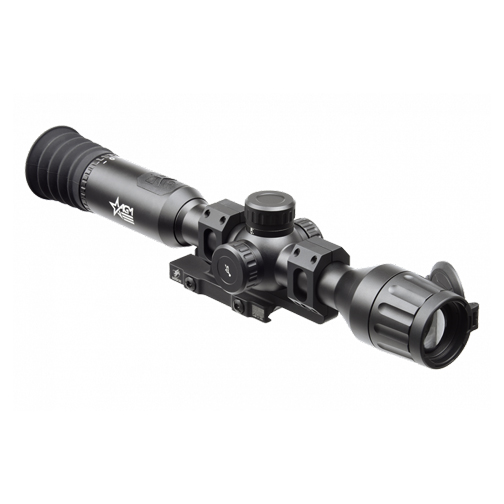

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extremely detection range of up to 2600 meters.

AGM Adder TS35 384 Features

384×288 thermal resolution

12μm high sensitivity detector

Fast 50 Hz imaging

High resolution OLED display

1x, 2x, 4x, 8x digital zoom

On board video and audio recording

Shot Activated Recording (SAR)

WiFi data transmission

Fast 64GB EMMC built in storage

Various reticle types and colors

Adjustable color palettes

Standby mode

Waterproof & Shockproof

Dual power system

Up to 15 hours continuous working

External power supply capability

Limited 3 year warranty

Data Sheet


Specifications

Palettes Black Hot

White Hot

Red Hot

Fusion

Reticle 5 types, 4 colors, on/off
Boresight Adjustment Digital Controlled
Boresight Increment 0.13 mil / 0.44 MOA
Distance Measurement Yes (Stadiametric)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto

Manual

External Correction

Detector type 12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)
Standby Mode Yes
Resolution 384 × 288
Detection Range 1800 m/yd
Snapshot Yes
Lens system 35 mm; F/1.0
Optical magnification 3× – 24×
Field of view (H × X) 7.5° × 5.6°
Digital zoom 1x

Diopter adjustment range -5 to +5 dpt
Eye relief ≥ 60 mm
Display 1024×768, 50 Hz, OLED
Storage 64 GB EMMC
Battery Type Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery
Wi-Fi Yes
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 15 hr
Power supply 5 VDC/2 A, USB Type-C Supports QC3.0
Operating Temperature Range -30°C to +55°C

(-22°F to +131°F)

Degree of Protection IP67
Weight 890 g

( 1.96 lb)

Overall Dimensions 407 × 78× 76 mm

(16.0 × 3.1 × 3.0 in)




Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
