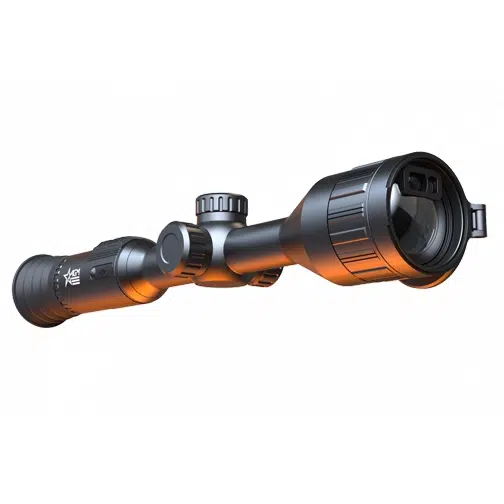

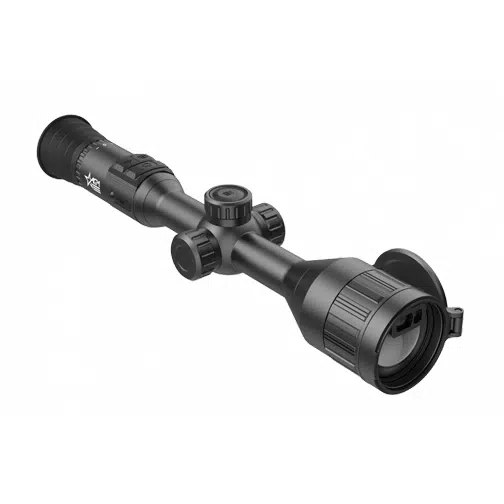

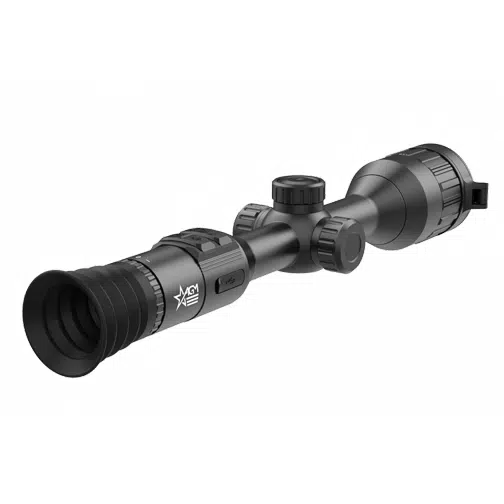

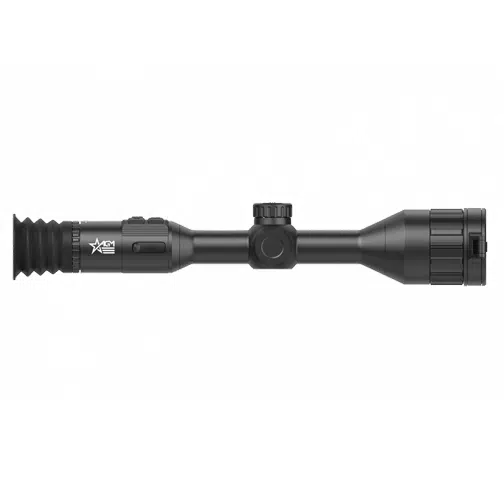

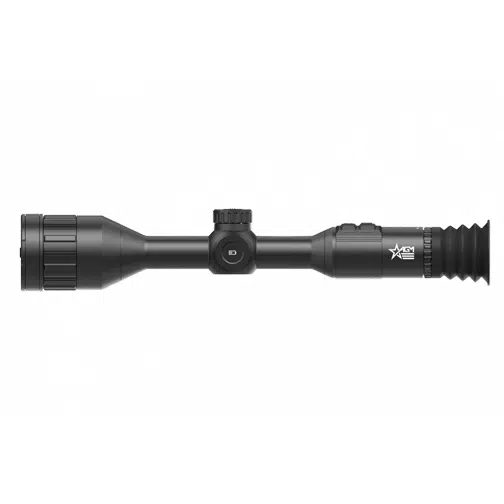

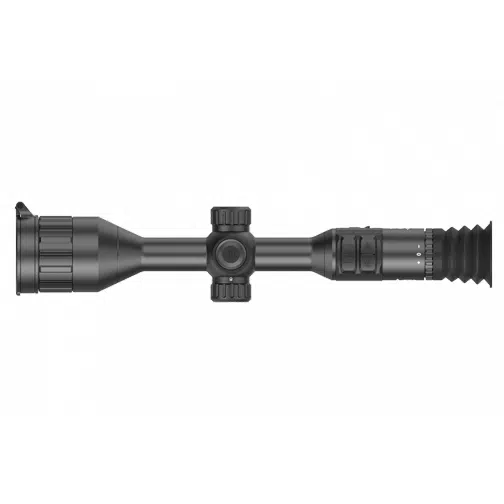

AGM Adder V2 LRF 50-640 Thermal Imaging Riflescope
The AGM Adder V2 LRF 50-640 is the next step in the evolutionary process in the AGM thermal riflescope lineup. Based off the ever-popular original 30mm AGM thermal scopes, the Adders, the V2’s will improve upon its predecessor in a number of ways, many of which come directly from AGM’s loyal customers.
Although the Adder V2 LRF 50-640 looks like many other traditional glass scopes, in this case, looks can be deceiving. As user’s peek inside the magnetic lens cap, you’ll notice an incredibly sleek new integrated LRF design. Rather than attaching an external laser rangefinder housing outside the device, the Adder V2 LRF beautifully tucks the 1000yd laser rangefinder into the front lens, making it virtually unnoticeable from any angle but head-on. The first of its kind in the thermal market, this new design is exceptional in its simplicity. Although the internal LRF module is one of the major improvements in the Adder V2’s, it’s certainly not the only one. Not to be outdone, the 640×512/12 micron sensor comes in at an industry-leading sub-15mk sensitivity. And AGM didn’t just pair that new sensor with a common 1024 display, AGM paired it with an intricate new 2560×2560 micro display and AGM’s first shutterless nuc system. This display not only provides users with unrivaled image quality, but also with the semi-circular internal user interface. This new interface will still comfortably provide shooters with the most crucial information, such as battery life, magnification level, range, time and vertical/horizontal
pitch scale readout.
The magnification range, 3.5-26X, is ideal for a wide range of hunting geographical regions and animal types. This unit also allows users to switch from full step zoom to 0.5X incremental zoom adjustments as well, so there’s no wasted sections of the magnification range. Other improvements include: new red & green monochrome color palettes, 64GB of internal storage capacity, 1000g recoil resistance, a fully integrated on board ballistic calculator, pitch scale activation, media albums which can be viewed on the device (not just your phone), internal 9hr rechargeable battery, cold & warm hue viewing modes, and more. And like the original Adder series scopes, the Adder V2’s will come with an American-made ADM one-piece Recon 30mm mount ($220 value) included. AGM – Vision Without Limits.
AGM Adder V2 LRF Features
640×512 thermal resolution
12μm high-sensitivity detector
Built-in 1000m laser rangefinder and ballistic calculator
0.5x step of continuous zooming
On-board video and audio recording
Shot Activated Recording (SAR)
Wi-Fi data transmission
Fast 64GB EMMC built-in storage
Various reticle types and colors
Standby mode
Waterproof & shockproof
Dual power system
Up to 9 hours continuous working
5-year warranty
Specifications |
||||||
Shot-Activated Recording | Yes | |||||
Max. Recoil | 1000g/0.4ms | |||||
Frame Rate | 50 Hz | |||||
Ballistic calculator | Yes | |||||
Detection Range | 2600 m | |||||
Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome | |||||
Dimensions | 432 × 90 × 78 mm (17.0 × 3.5 × 3.1 in) | |||||
Exit Pupil Diameter | 6 mm | |||||
Pixel Interval | 12 μm | |||||
Distance Measurement | Yes | |||||
Picture In Picture Mode (PIP) | Yes | |||||
Hotspot | Yes | |||||
Audio Recording | Yes | |||||
Magnification | 3.5X – 26X Support 0.5X step value of continuous zooming | |||||
Image sensor | VOx Uncooled Focal Plane Arrays | |||||
Response Waveband | 8 μm to 14 μm | |||||
FFC (Flat Field Correction) | Semi-Auto, Manual | |||||
Standby Mode | Yes | |||||
Resolution | 640 × 512 | |||||
Lens system | 50 mm, F1.0 | |||||
NETD | Less than 15 mK (@25°C, F# = 1.0) | |||||
Mounting | Standard 30mm | |||||
Field of view (H × X) | 8.8° × 7.0°/15.4 m × 12.3 m | |||||
Diopter adjustment range | -4D to 4D | |||||
Focusing range | 5 m minimum | |||||
Hot Track | Yes | |||||
Eye relief | 45 mm | |||||
Display | 2560×2560, 1.03 inch OLED | |||||
Storage | Built-in EMMC (64 GB) | |||||
Record Video | On-board Video Recording | |||||
Capture Snapshot | Yes | |||||
Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) | |||||
Battery Operating Time | 9 hours continuous running (@25°C, Zoom Pro, LRF on) | |||||
Power supply | 5 V DC/2 A, USB Type-C interface, Supports QC3.0 (* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery) | |||||
Operating Temperature Range | -30 °C to 55 °C (-22 °F to 131°F) | |||||
Weight | 0.86 kg ( 1.9 lb) | |||||
Protection Level | IP67 |
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
