AGM Rattler-C V2 19-256 Thermal Imaging Clip-On System

$895.00

Only 1 left in stock

Fast & Free Shipping $199+

Description

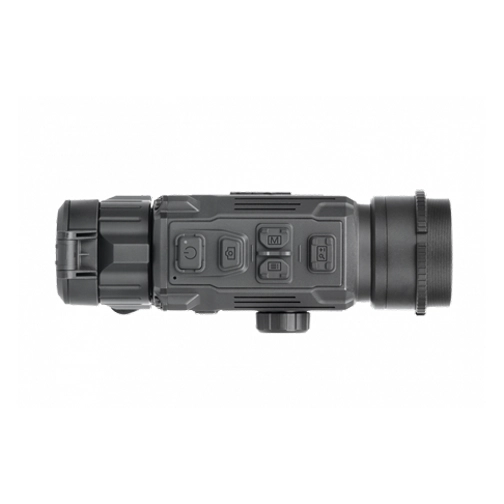

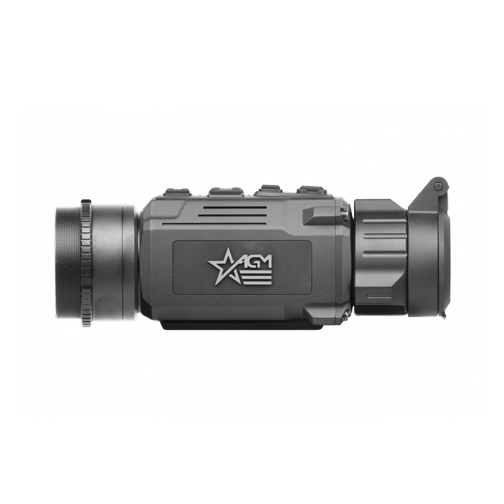

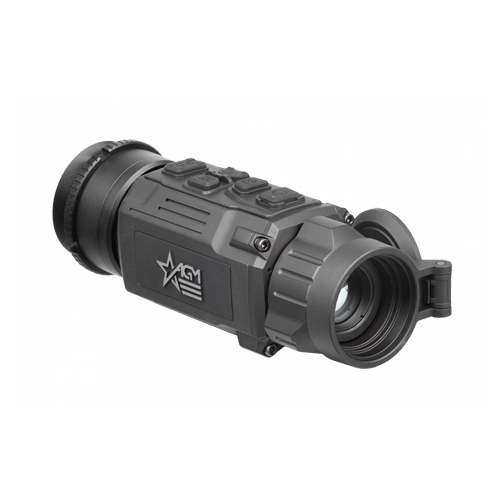

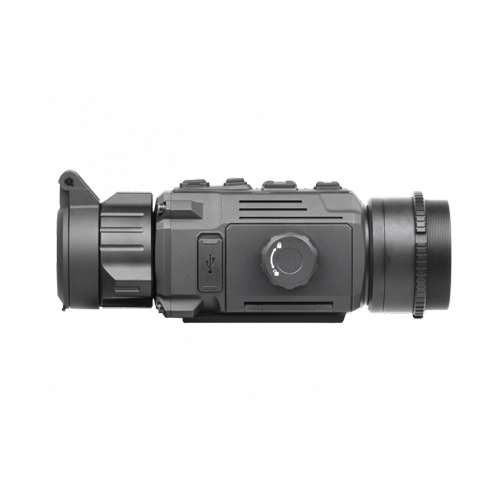

AGM Rattler-C V2 19-256 Thermal Imaging Clip-On System

The AGM Rattler-C V2 19-256 is a thermal imaging clip-on system that boasts an industry leading 12 micron, sub-20mk thermal detector. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-on has a high sensitivity sensor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. It can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-Ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wifi module is also available for live video streaming and video/images recording via mobile applications.

Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Specifications

Shot-Activated Recording Yes
Max. Recoil 1000 g/0.4 ms
Dimensions 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
Flat Field Correction (FFC) Auto, Manual, External Correction
Palettes Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiametric
Scene Mode Cold, Warm
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Audio Recording Yes
Detector type 12μm VOx Uncooled Focal Plane Array
Standby Mode Yes
Refresh rate 50 Hz
Resolution 256 × 192
Detection Range (6′ object) 1000 m/yd
Snapshot Yes
Lens system 19 mm; F/1.0
NETD Less than 35 mK (25°C, F# = 1.0)
Optical magnification
Field of view (H × X) 9.3° × 6.9°
Hot Track Yes
Eye relief 10 mm
Display 0.39-inch, OLED, 1024×768
Storage Built-in EMMC (16 GB)
Battery Type 4400mAh Replaceable and Rechargeable Li-ion Battery
Wi-Fi Yes
Battery Life (Operating) 11.5 h (25°C, with hotspot off)
External power supply 5 VDC, 2 A, USB Type-C
Operating Temperature Range -30°C to +55°C (-22°F to 131°F)
Weight 0.5 kg (1.10 lb)
Protection Level IP67
Package Includes Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Focus Range 0.5 m to infinity

Features

AGM Rattler-C V2 Features

    • Quick conversion of daytime optics into thermal imaging scope
    • 12μm high-sensitivity thermal detector, NETD < 20mK
    • Fast 50Hz imaging
    • High resolution OLED display
    • Adjustable color palettes
    • On-board video/audio recording and image capture
    • Built-in EMMC storage (16 GB)
    • Shot Activated Recording (SAR)
    • Wi-Fi data transmission
    • Stadiametric rangefinder
    • Standby mode
    • 9 – 11 hours battery life (depending on model)
    • External power supply compatibility
    • Waterproof & shockproof
    • 5-year warranty
    • Included in the Box
    • Mount
    • Two Rechargeable Battery
    • Charger
    • USB Cable
    • Lens Cloth
    • Manual
    • Carrying Case

Spec SheetProduct Manual
