Description

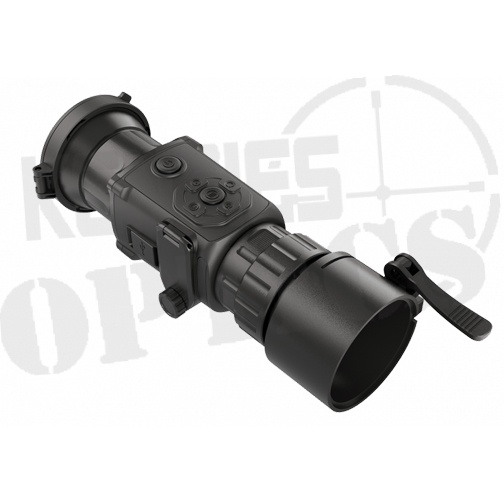

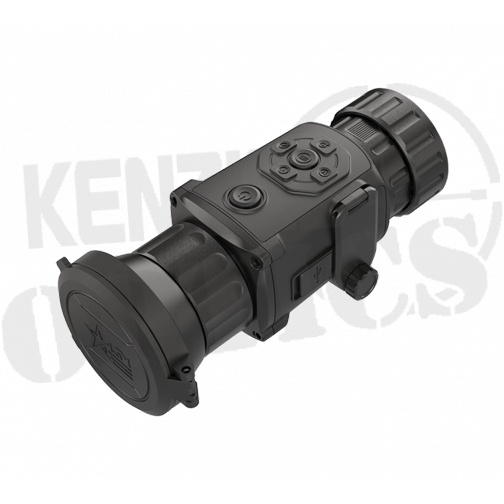

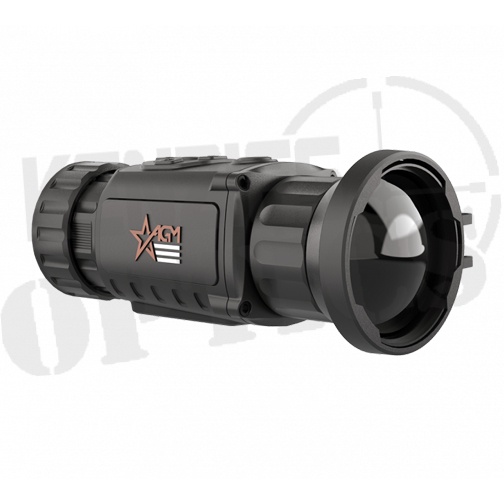

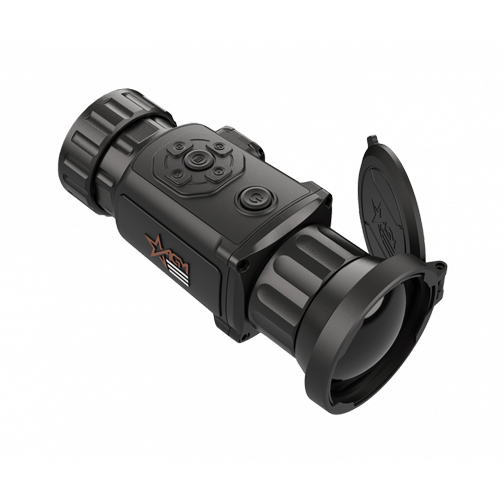

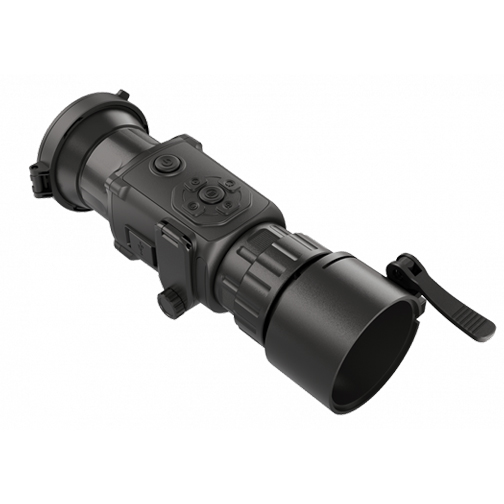

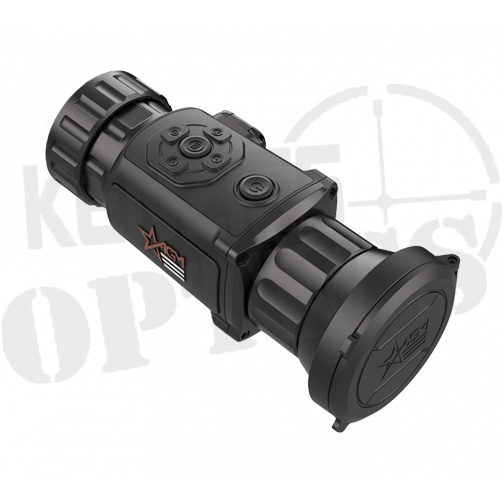

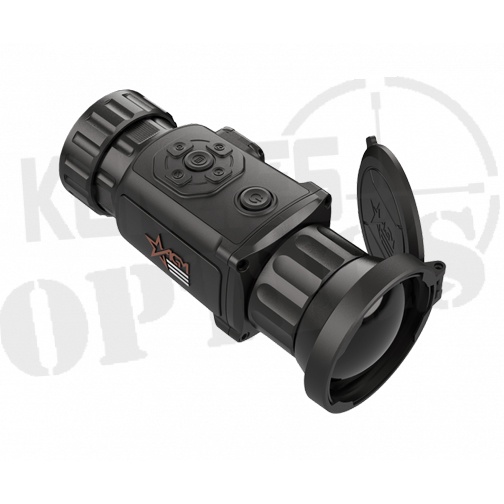

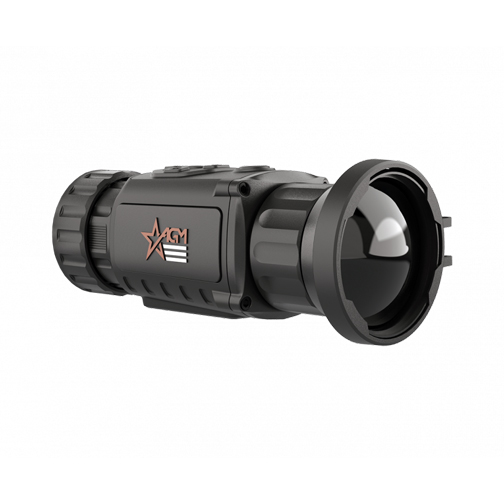

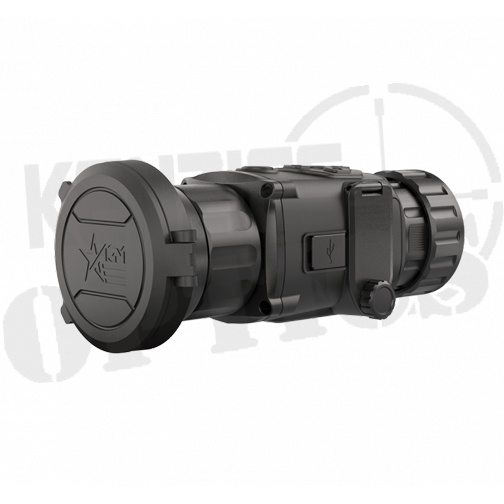

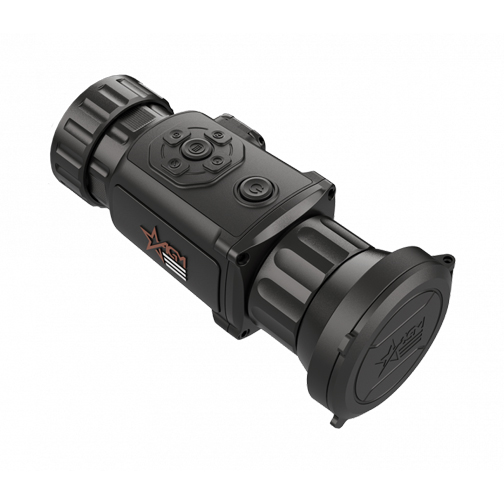

AGM Rattler TC50 640 Compact Thermal Imaging Clip On System

The AGM Rattler TC50 640 was designed to be a compact thermal imaging clip on system. It allows quick transformation on the day optics into thermal imaging device without any special tools or equipment. The Rattler TC50 features a high sensitivity 12μm thermal detector with 640×512 resolution and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke. dust, rain, etc. It is mainly applied to scenarios such as patrolling and hunting, and can be attached in front of rifle scopes with magnification up to 8x for long range use.

AGM Rattler TC50 640 Features

Quick conversion of daytime optics into thermal imaging scope

12μm high sensitivity detector

640×512 thermal resolution

1024×768 resolution 0.39-inch OLED display

8x digital zoom

Video recording and snapshot, built-in EMMC (16 GB)

Supports distance measurement

Adjustable color palettes

Wi-Fi data transmission

Waterproof, shockproof

Up to 4.5 hours continuous working

External power supply capability

Limited 3-year warranty

Data Sheet




Specifications

Palettes Black Hot

White Hot

Red Hot

Fusion

Shock and vibration 750 g/ms
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiometric Rangefinder)
Scene Mode Jungle, Recognition
Hotspot Yes
Observation Distance 2,500 m
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 50 Hz / OLED 50 Hz
Resolution 640 x 512
Lens system 50 mm, F1.0
Optical magnification 1x
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick
Field of view (H × X) 8.8° x 7.0°
Monitor 1024×768, 0.39 inch, OLED
Storage Built-in 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight 0.49 kg (1.08 lb)
Overall Dimensions 153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
Protection Level IP67




Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
