Description

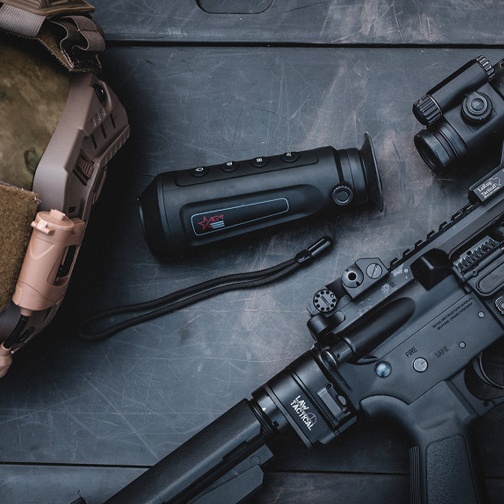

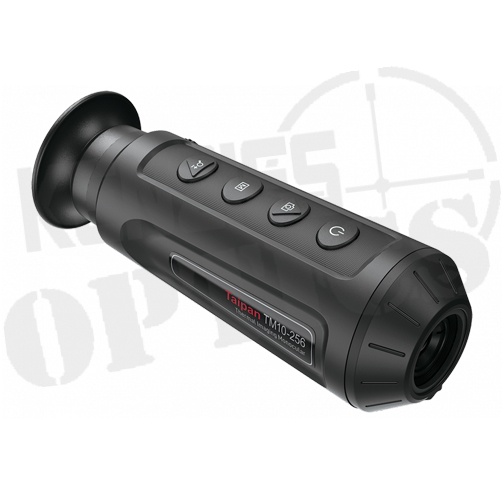

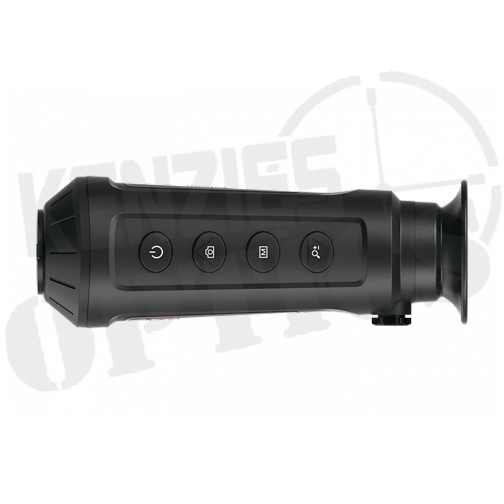

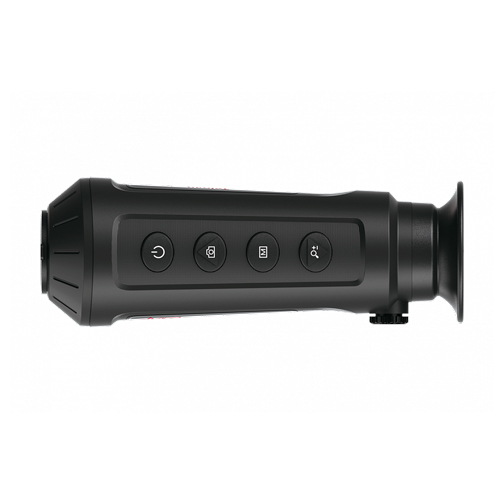

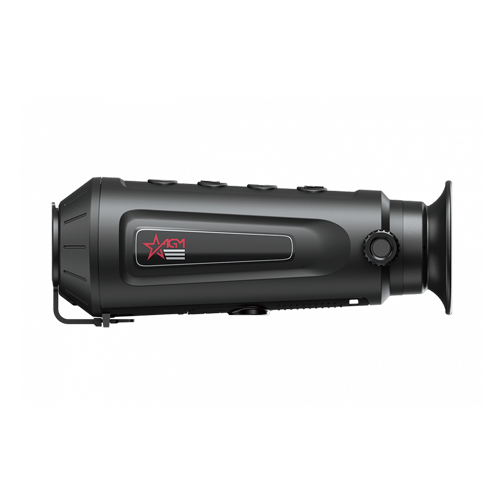

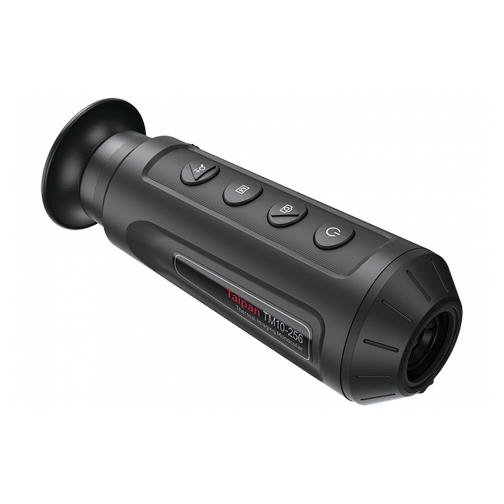

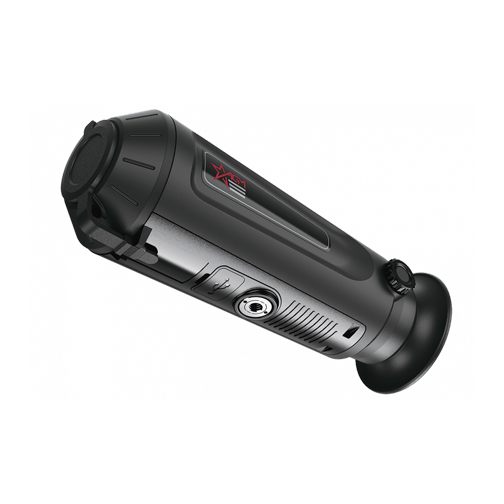

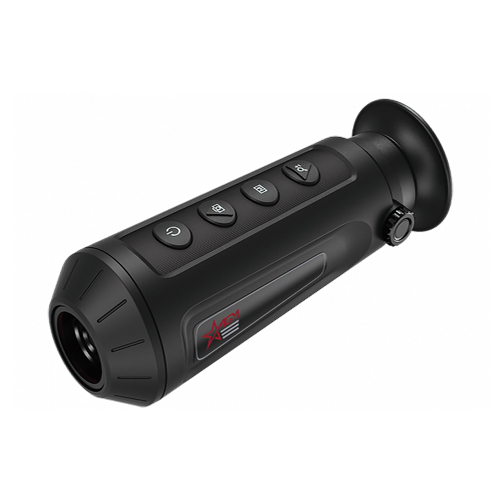

AGM Taipan TM10-256 Thermal Imaging Monocular

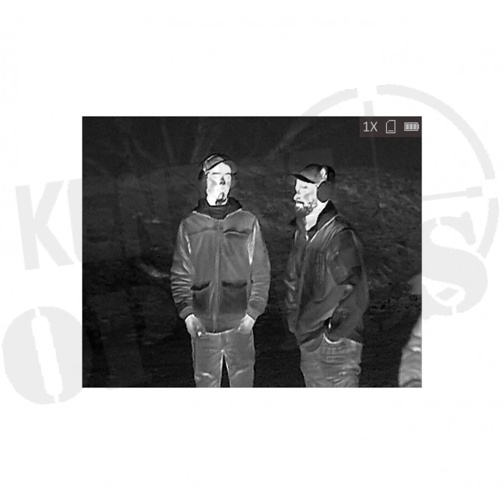

The AGM Taipan TM10-256 grants you a clear view, even in total darkness. The handheld is equipped with a 256 x 192 infrared detector and a 720 x 540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurements, WiFi hotspot, and more. The high sensitivity built in thermal detector provides you with clear views even in complete darkness. It runs on a built in rechargeable Lithium battery which will run continuously for more than 7.5 hours when the WiFi hotspot is turned off. The monocular was designed for patrolling, law enforcement, search and rescue, hiking and hunting. The Taipan is backed by AGM’s Limited 3 Year Warranty.

AGM Taipan TM10-256 Thermal Imaging Monocular Features

Distance Measurement

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

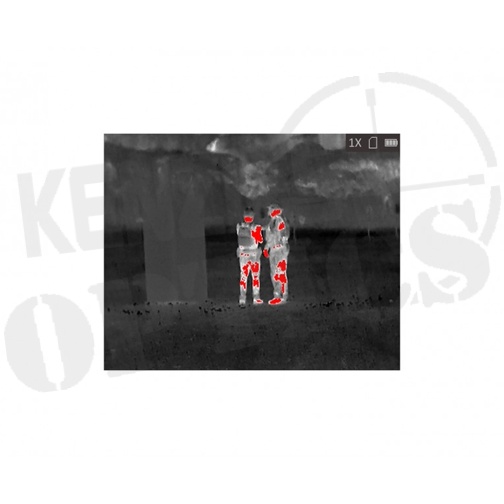

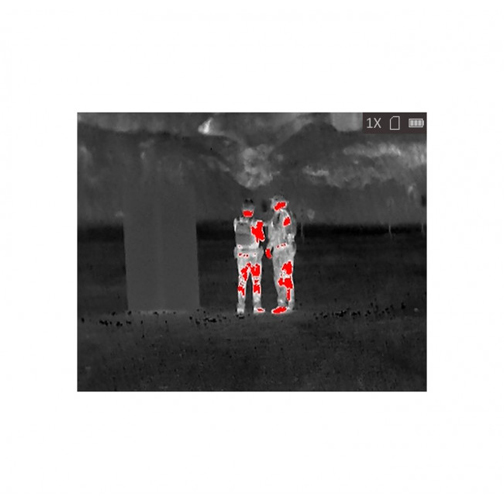

Hot Spot Mark

The device detects and marks the hot spot of highest temperature.

Mode Switch

Supports pallet switch and distance measurement.

Storage

Built in memory module supports video recording/snapshot capturing.

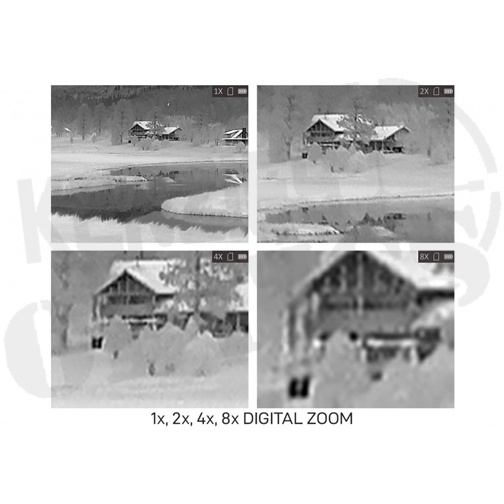

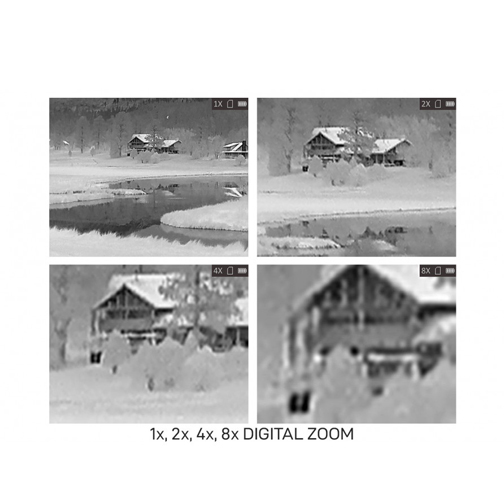

Digital Zoom

Device supports 1×, 2×, 4×, and 8× digital zoom.

WiFi Hotspot

Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Detector Type

Vanadium Oxide Uncooled Focal Plane Arrays

Refresh Rate

Sensor 25 Hz / OLED 50 Hz

Resolution

256 x 192

Field of View

18.00° × 13.55°

Data Sheet

User Manual


Specifications

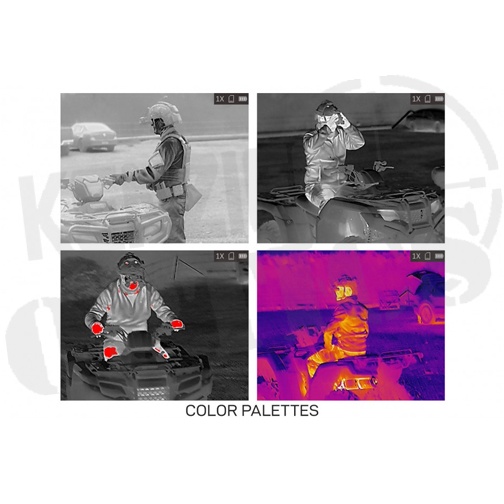

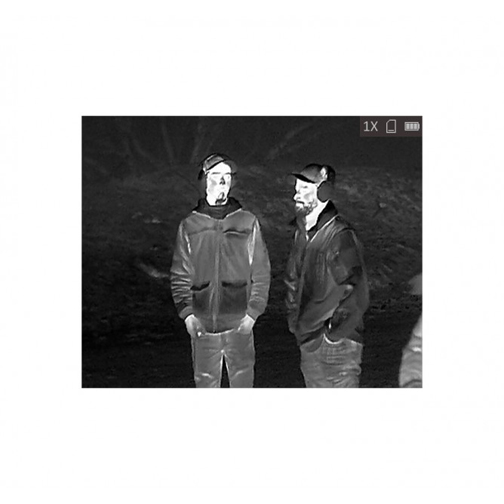

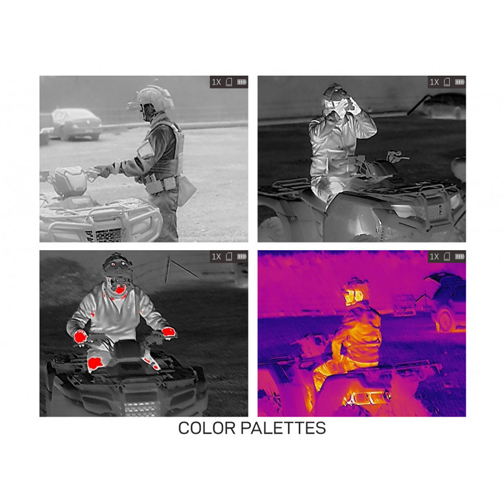

Palettes Black Hot

White Hot

Red Hot

Fusion

Working Temperature -20°C to 55°C

(-4°F to 131°F)

Interface USB Type-C
Pixel Interval 12 μm
Multi Language Menu Yes
Drop Test Height 1.5 m

(4.9 feet)

Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto

Manual

External Correction

Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh Rate Sensor 25 Hz / OLED 50 Hz
Aperture F1.0
Resolution 256 × 192
Detection Range 458 m
NETD Less than 35 mk (@25°C), F#=1.0
Lens (Focal Length) 10 mm
Power 5 VDC/2 A, 1.5 W
Field of View (H × X) 18.00° × 13.55° (H × V)
Digital Zoom

Monitor 720 × 540, 0.2 inch, LCOS
Storage Built in memory module (8 GB)
Record Video On board video recording
Capture Snapshot Yes
Battery Type Built in rechargeable Lithium battery
WiFi Yes
CVBS Output Yes (via USB)
Battery Operating Time Up to 8 hours continuous running (with WiFi hotspot function off)
Battery Capacity Display Yes
Weight 260 g

(0.57 lb)

Overall Dimensions 158 × 61 × 57 mm

(6.23 × 2.4 × 2.2 in)

Protection Level IP67
