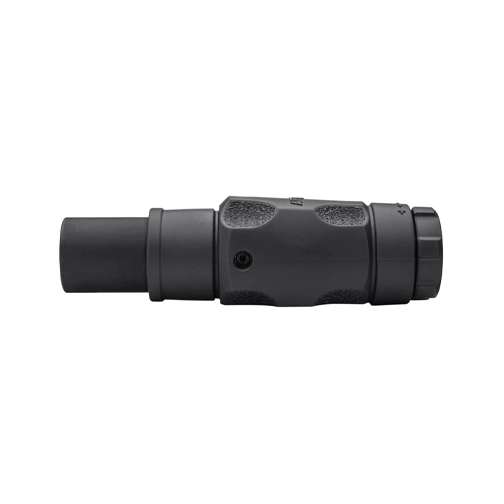

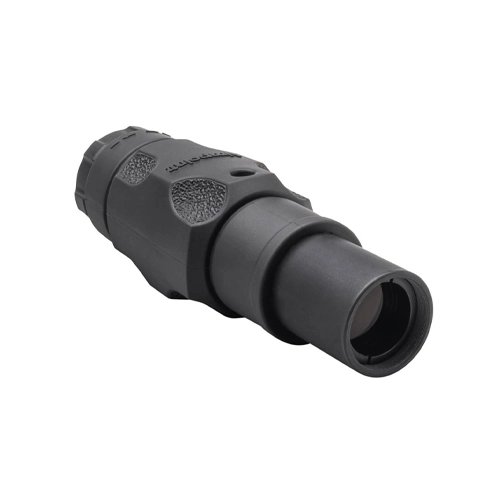

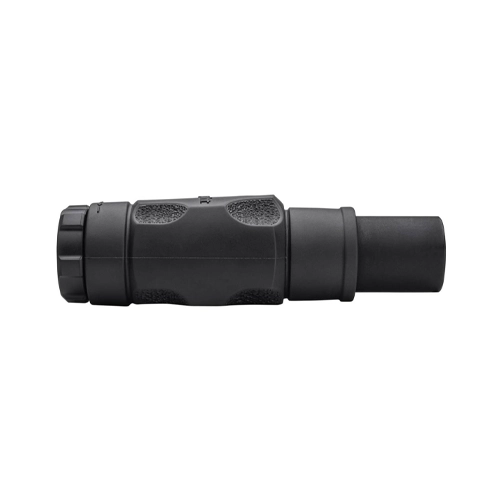

Aimpoint 6XMAG-1 Magnifier
The Aimpoint 6XMag-1 Magnifier was designed to be used with Aimpoint’s Micro T-2, Micro H-2, and CompM5 red dots, or as a handheld monocular. It gives professional users enhanced capability for long range use. It features a variable (-3 to +3) dioptric setting that allows the magnifier to be adapted to the individual operator’s eye. The magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming. The body of the magnifier has a shock absorbing protective rubber cover, which also helps create an ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy.
|Aiming Dot Size||None, uses the red dot in the paired sight|
|Field of View (FoV)||3°|
|Exit Pupil||3.3 mm
|Eye Relief||70 mm
|Transmission||75 % (photopic, integral transmission)|
|Dioptric Adjustment||± 3.0 D|
|Length Sight Only||151 mm
|Width Sight Only||46 mm
|Height Sight Only||43 mm
|Weight Sight Only (incl battery)||250 g
(8.8 oz) including rubber cover
|Housing Material||Hard anodized aluminum|
|Housing Finish and Color||Matte black|
|Surface Treatment||Hard anodized, matte, with protective rubber armor cover|
|Temperature Range Operation||-45°C to +71°C
(-49°F to +160°F)
|Temperature Range Storage||-45°C to +71°C
(-49°F to +160°F)
|Temperature Shock||-40⁰C and +55⁰C
(-40°F and +131°F)
|Humidity||Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C
(+68°F to +122°F), cyclic
|Submersible||To a depth of 25 m
|Shock||Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms
(2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction).
|Vibration||Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz.
Frequency: 10-30 Hz, ±1.587 mm,
Frequency: 30-150 Hz. 5.75 g, 1 octave/min.
Direction: X, Y and Z, Time: 30 min/direction.
