Description

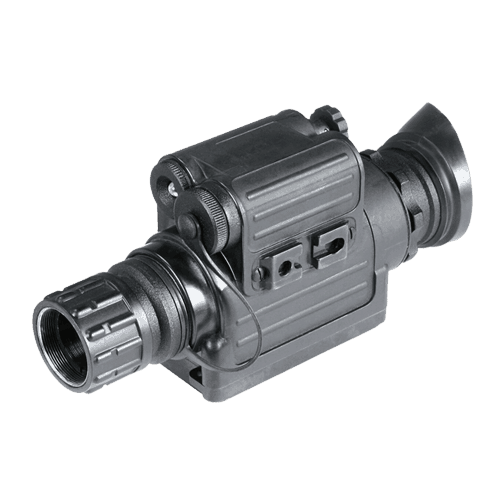

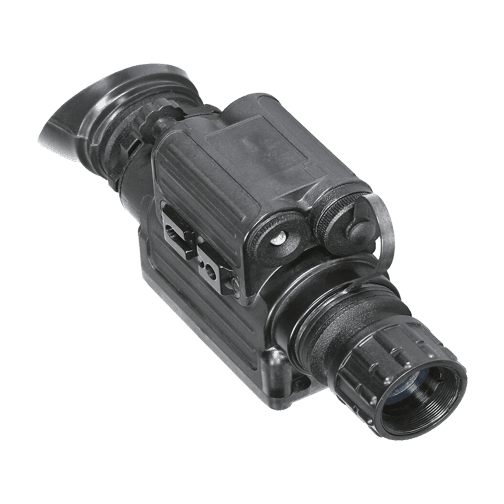

The Armasight Spark-G Night Vision goggle systems built around CORE (Ceramic Optical Ruggedized Engine) image intensifier tubes. First of all, unlike Gen 1 Image Intensifier Tubes (IIT), which are fragile because they are made from glass. The CORE IIT’s are made just like Gen 2 and Gen 3 by fusing metal alloys with ceramic compounds. Additionally, the CORE technology is based on durable elements and allows tight component stacking. Lastly, resulting in image tubes that are exceptionally shockproof and vibration- resistant.

As a result, robust packaging protects easy-to-break protrusions common in Gen 1 tubes and allows for a streamlined design that is lighter, more compact, and more reliable than average night vision devices. Also, the CORE platform offers ‘best in class’ resolution with 60-70 lp/mm and an increased photocathode sensitivity level of upwards of 400 µA/lm. Resulting in, a high image quality even in difficult ambient light conditions, rivaling high-end Gen 2 image tubes. Overall, the Armasight Spark-G is a rugged and lightweight night vision monocular.


Specifications

Auto
Power Off
No
Dimensions
(L x W x H)
181× 49 × 82 mm
(7.1 × 1.9 × 3.2 in)
Focus
Range
0.25 m to
Infinity
Product
Weight
0.37 kg
(0.8 lbs)
Warranty 2 Years
Lens
System
F/1.7;
35 mm
Magnification 1x standard
(3x, 5x optional)
Eye
Relief
20mm
IIT
Generation
CORE
Operating
Temperature
-40°C to +50°C
(-40°F to +122°F)
Storage
Temperature
-50°C to +70°C
(-58°F to +158°F)
Diopter
Adjustment
±5
diopter
Field
of View
35°
Resolution 60-70lp/mm
Automatic
Brightness
Control
No
Bright
Light
Cut Off
No
Exit
Pupil
Diameter
8mm
Infrared
Illuminator
Yes
IR
Indicator
Yes
(Led)
Manual
Gain Control
No
Battery
life
Up to
40 hours
Power
Supply
CR123
Lithium
3V (1)

Additional information

Weight 0.8 lbs
