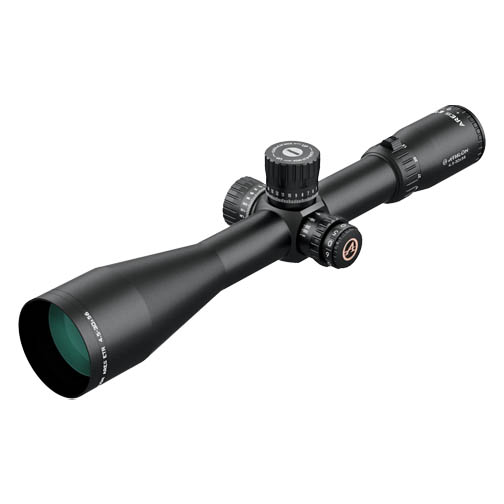

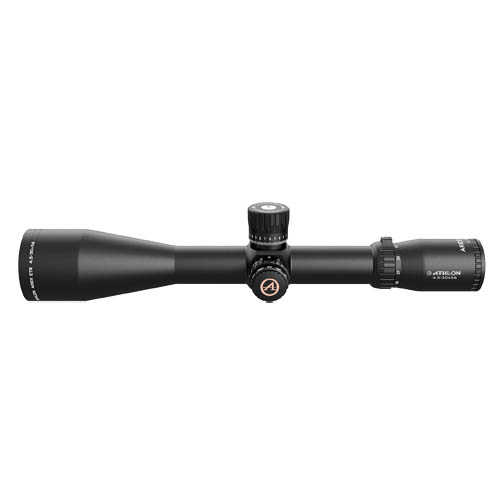

Athlon Ares ETR 4.5-30×56 Riflescope
The Athlon Ares ETR 4.5-30×56 First Focal Plane Scope is loaded with features allowing you to take your long range shooting to another level. Featuring the latest design in turret system mechanics, the Ares ETR has a locking Windage turret along with a true precision zero stop on the elevation turret ensuring your shots are right on every time. Extra Low Dispersion lenses allow for the sharpest and best color image possible. Constructed with an 34 mm tube, this riflescope can withstand even the hardest recoiling firearms.
Athlon Ares Riflescope Features
Extra-Low Dispersion glass significantly reduces chromatic aberration giving you an utmost bright and sharp image with true color reproduction.
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
First Focal Plane Reticle
First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out. The reticle offers quick target engagement at low power while offering precise holdover positions with finer details.
Etched Glass Reticle
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
Advanced Fully Multi coated
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you.
Precision Zero Stop System
The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch dark or blind folded.
Locking Windage Turret
This Locking Feature allows you to push down to lock the turret and pull up to turn. This feature prevents the windage knob from being turned accidentally and keeps your zero all the time.
High Precision Erector System
The high precision erector system processed by high precision CNC machine with +/- 0.0001 mm tolerance level to provide you the most accurate power settings and smoothest magnification change
6061 T6 Aluminum
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
Exposed Tactical Direct Dial
Exposed Direct Dial Turrets for elevation and windage allow you to quickly make adjustment as you needed and engage your target within a blink of your eyes
One Piece Tube Construction
Heat treated one piece tube gives the scope extra strength over multi piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000 G recoil for 1000 times.
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability.
|Magnification||4.5 to 30|
|Objective Lens Diameter||56 mm|

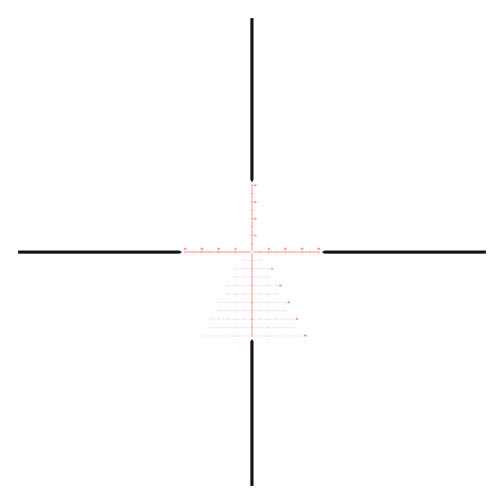

|Reticle||APLR5 FFP IR MOA, Glass Etched|
|Lens Coating||Advanced Fully Multi coated|
|Extra Coating||Xtra Protective Coating|
|Tube Material||Aircraft Grade Aluminum|
|Tube Diameter||34 mm|
|Exit Pupil||8.8-1.9 mm|
|Field of View @100 yards||24.5 to 3.75 ft|
|Click Value||0.25 MOA|
|Adjustment range per rotation||25 MOA|
|Total Elevation Adjustment||110 MOA|
|Total Windage Adjustment||110 MOA|
|Turret Style||Exposed Direct Dial/Locking Windage Turret|
|Parallax Adjustment||Side Focus 25 yards to infinity|
