InfiRay Outdoor Finder FH35R V2 Thermal Laser Rangefinding Monocular

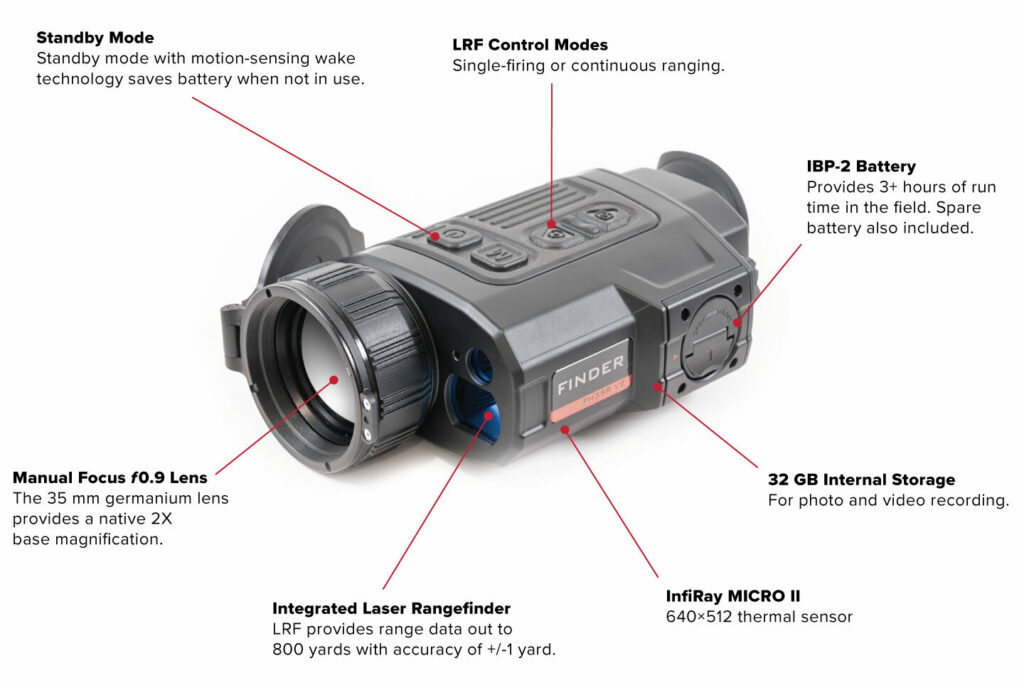

The InfiRay Outdoor FINDER FH35R V2 combines a powerful thermal viewer with a handheld laser rangefinder, giving hunters the ability to identify targets at night and accurately determine their range. A 640×512 thermal sensor paired with a 3× 35 mm f/0.9 lens provides a crisp image with ample room for digital zoom, ideal for viewing wildlife or recording photos and videos. The FINDER V2 pairs 800-yard infrared laser rangefinding capability (continuous or single capture) with a 1,750-yard thermal detection range in a compact unit that fits in the palm of your hand. The FINDER V2 ships with two IBP-2 batteries, each providing 3+ hours of run time. A proximity sensor automatically powers off the display when moved away from the viewer’s eye to reduce power consumption and visible light signature.
Specifications |
||||||
| Objective Focal Length | 35mm | |||||
| Focusing Mechanism | Manual Focus | |||||
| Objective Lens Material | Germanium | |||||
| Detection Range | 1750 Yards | |||||
| Digital Magnification | 4X | |||||
| Horizontal Angular Field of View | 12.6° | |||||
| Optical Magnification | 2X | |||||
| Vertical Angular Field of View | 9.4° | |||||
| Objective Diameter | 35mm | |||||
| Objective F# | 0.9 | |||||
| Display Type | AMOLED | |||||
| Eye Relief | 20mm | |||||
| Display Resolution | 1024×768 | |||||
| Operating Temperature Range | -4°F~122°F | |||||
| Ingress Protection | IP67 | |||||
| Sensor Type | InfiRay MICRO II | |||||
| Sensor Pixel Size | 12μm | |||||
| Thermal Sensitivity | <25mk | |||||
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
| Spectral Response | 8-12 Microns | |||||
| Sensor Frame Rate | 50hz | |||||
| Device Technology | Thermal Imaging | |||||
| Sensor Resolution | 640×512 | |||||
| Color Palettes | White Hot, Black Hot, Red Hot, Highlight, Ironbow, Rainbow | |||||
| Rangefinder | Integrated 800yd LRF | |||||
| Picture-in-Picture | Yes | |||||
| Stand-by Mode | Yes | |||||
| Image Capture | Yes | |||||
| Wifi | Yes | |||||
| Mobile App | Yes | |||||
| User-Updatable Firmware | Yes | |||||
| Onboard Recording | Yes | |||||
| Connector Output | Power/Data | |||||
| Connector Type | USB-C | |||||
| Storage Capacity | 32GB | |||||
| Run Time | 3+ | |||||
| Power Source | USB-C External, IBP – 2 Li-ion Battery Pack | |||||
| Startup Time | <10 Seconds, Instant from Standby | |||||
| External Power Source | USB-C | |||||
| Warranty | 5 Years | |||||
| Country of Manufacture | China | |||||
| Length | 6.30 | |||||
| Width | 3.54 | |||||
| Height | 1.97 | |||||
| Housing Material | Aluminum | |||||
| Weight | 14.11 Oz. | |||||
