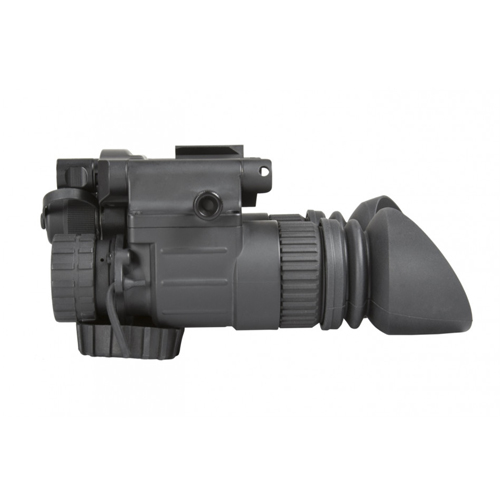

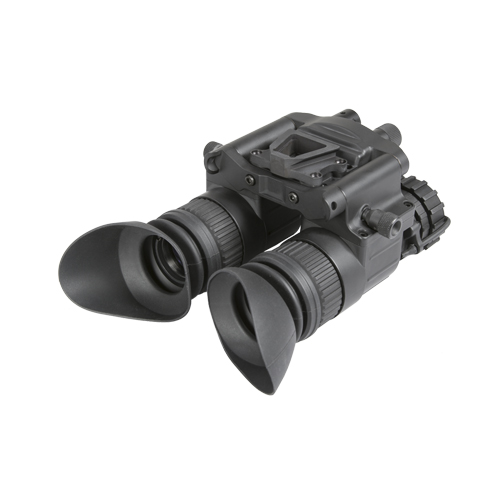

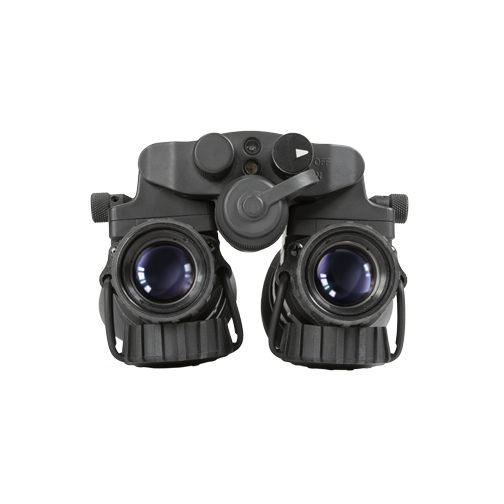

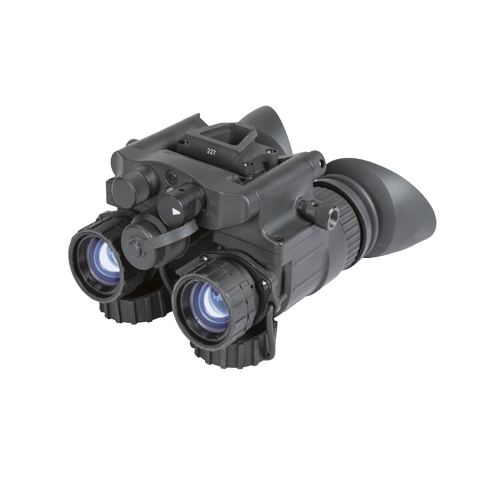

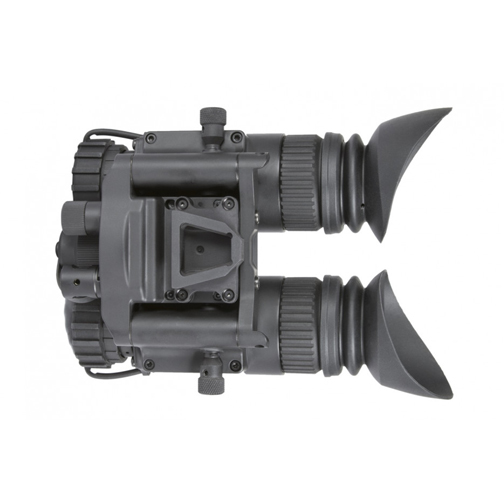

AGM NVG-40 3NL1 Night Vision Goggles and Binocular

The AGM NVG-40 3NL1 Night Vision Goggles and Binocular is a dual channel night vision system that has a 40° field of view. This allows for a large visual field without needing to move your binoculars. It is built with advanced multi coated optics and a compact composite housing. The NVG-40 uses a single AA alkaline battery or CR123A battery, and can run up to 20 hours. It also has an integral infrared illuminator so you can read in the dark.

AGM NVG-40 3NL1 Night Vision Goggles and Binocular Features

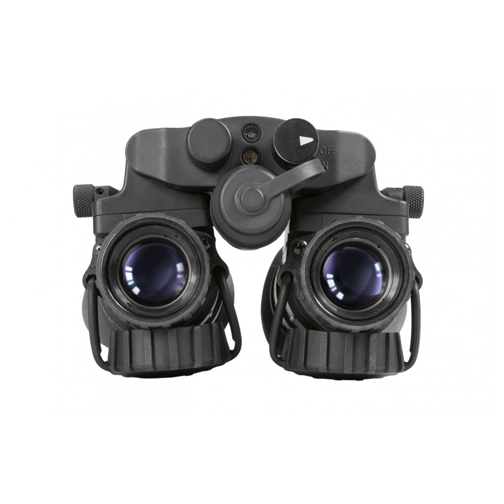

Redundant dual tube design

True stereoscopic vision

Lightweight & compact

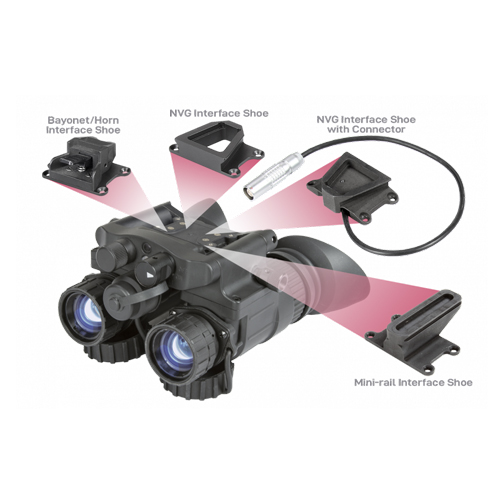

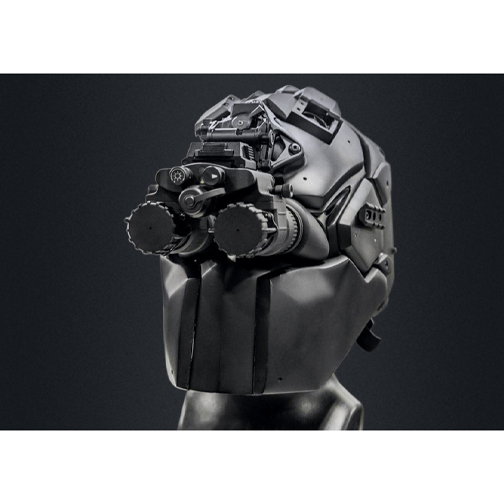

Head or helmet mountable for hands-free operation

Bright light cut off

Ergonomic, simple, easy to operate controls

Built-in Infrared illuminator and flood lens

Utilizes single CR123A lithium or AA battery

Limited 3-year warranty

Tube Level Info:

Level 1 – No Spots – Minimal Spot

3NW/NW – No Spots – Minimal Spot

Level 2 – 1-2 Spots None in Center

Level 3 – 2-3 Spots None in Center



Optional Accessories:

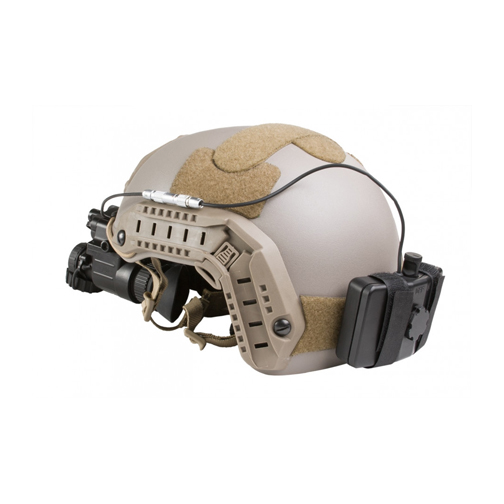

Helmet Mount Kit

Battery Pack Kit

AGM Cap Goggle Kit W

Hard Case

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

Helmet Mount for Shroud


Specifications

Image Intensifier Tube Gen 3+ “Level 1”

Gen 3+ “White Phosphor”

Gen 2+ “Level 2”

Magnification 1x
Lens System 27 mm, F/1.3
FOV 40°
Focus Range 0.25 m to Infinity
Diopter Adjustment -6 to +2 dpt
Eye Relief 25 mm
Interpupillary Distance 56 to 72 mm
LED Indicators (in the FOV) Low Battery IR On Excessive Light Conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes; Two power levels
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight 645 g (1.42 lbs)
Overall Dimensions 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes Night Vision Goggles, Goggle Kit, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual




More from AGM

Additional information

Weight N/A
Image Intensifier Tube Options

Gen 2+ "Level 2", Gen 3+ "Level 1", Gen 3+ "White Phosphor"
