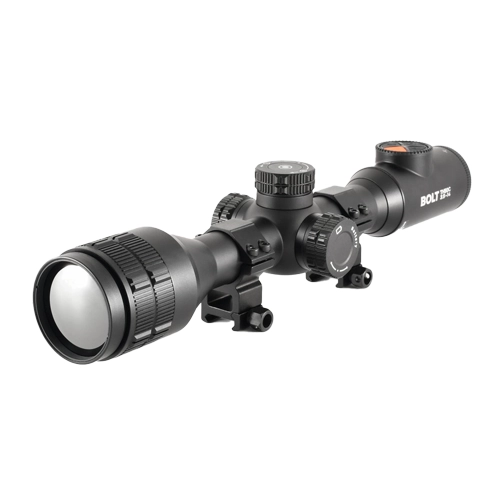

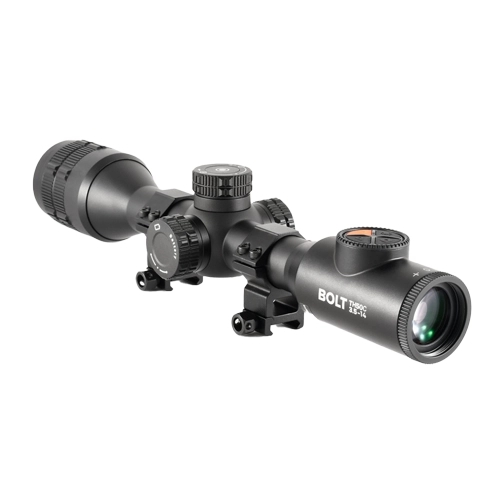

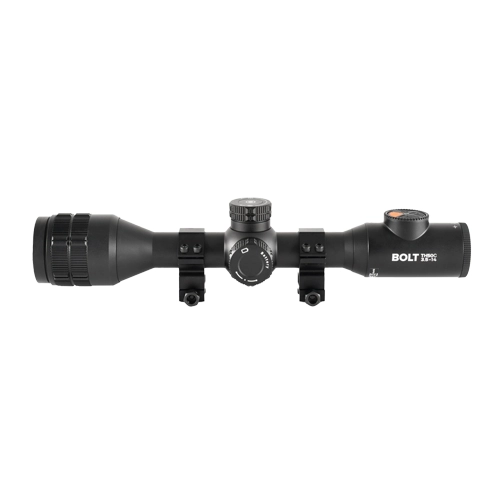

IRay Bolt TH50C Thermal Scope


Available on backorder

SKU: IRAY-TH50C Categories: , , Tags: , , , , ,

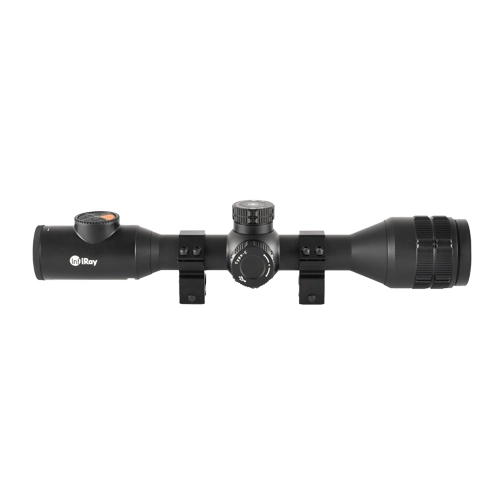

IRay Bolt TH50C

The IRay Bolt TH50C is an optimized thermal scope that features 12μm 640×512 Micro II sensor, 2560×2560 Micro OLED HD display and shutterless calibration. The scope maintains the traditional look of the Bolt and flexibility of a 30mm ring mounting interface, while its proven combination of a manual focus lens, dual battery design and tactile control turret work in tandem with its pixel dense display to provide an improved viewing experience and unmatched level of precision to your next hunt.

Old Meets New

The BOLT features InfiRay Outdoor’s innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor’s mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.

IRay Bolt TH50C High Performance

The TH50C features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TH50C uses a set of optics specifically designed for a 12 micron sensor and a low power consumption LCOS HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off the shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.

Advanced Technology

The IRay Bolt TH50C comes with 16gb of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT-C simultaneously allowing multiple viewers to see the BOLT-C’s thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

InfiRay Outdoor Bolt-C Features

2560×2560 Micro OLED HD Display

Pixel dense screen with 50mm of eye relief.

USB-C Connectivity

32GB of storage in addition to seamless WiFi Streaming.

Flexible Mounting Position

Mounts with standard 30mm rings.

Manual Focus F/1.1 Lens

Guarantees the best image regardless of distance.

Shutterless Calibration Function

Simplifies operation and lowers energy consumption.

8 Hours Out of the Box

Expandable to 10+ hours with optional 18500/18650 battery (not included).

Tactile Turret

With positive response and feel.

Data Sheet

Product Manual


Resolution 640 x 512
Pixel Size 12 μm
Framerate 50 Hz
Image Processing MATRIX III
Core iRay Micro II 640
Objective Lens 50mm f/1.1
Magnification 3.5x
Digital Zoom 4x
HFOV 8.8° x 7.0°
Detection Range 2400 yards
Display Type Micro OLED
Display Resolution 2560 x 2560
Imaging Modes White Hot

Black Hot

Red Hot



Reticle Types 7 (2 Dynamic, 5 Static)
Reticle Colors Black




Mounting System 30mm Rings (included)
P.I.P. Yes
Rangefinder Stadiametric
Eye Relief 50mm
Diopter Range -5 to +5
Onboad Recording Video and Image
Wireless Connectivity Video/Image via App
Data/Power Connector USB-C
Power Supply Built in battery pack, 8 hours 18500 battery (+2 hours), 18650 battery (+3.5 hours)
Start Up Time < 10 seconds, instant from standby
Size 14.56” x 3.34” x 2.95”
Weight 33.15 oz
Warranty 5 years
Housing Material T-6061 Aluminum
Ingress Protection IP67
Operation Temp -4°F~122°F
Max. Recoil 1000 g/s² (300 Win./7mm Mag)
