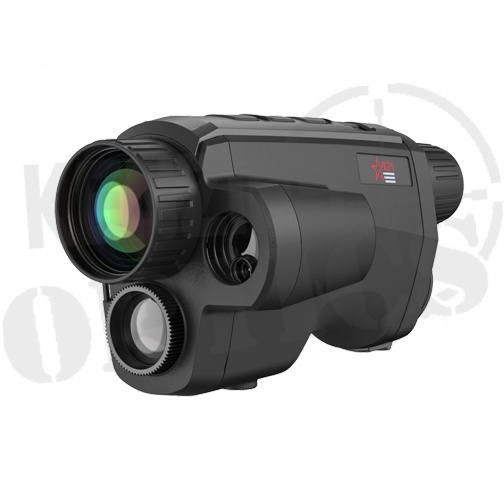

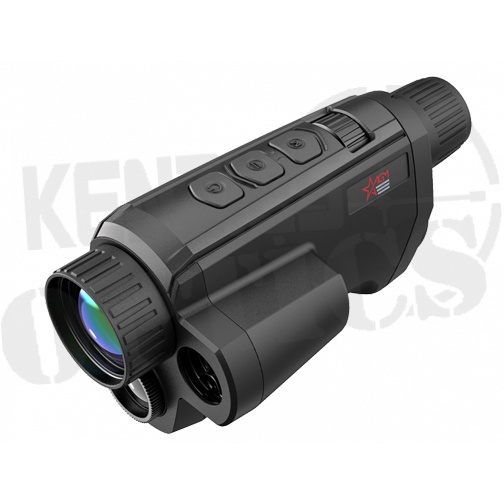

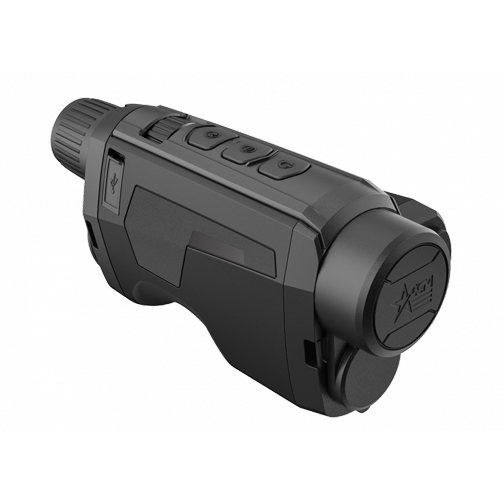

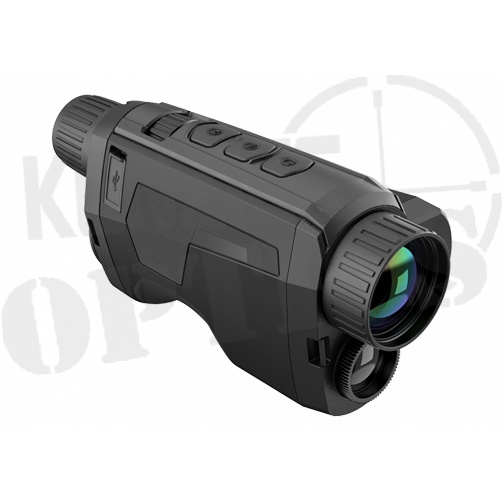

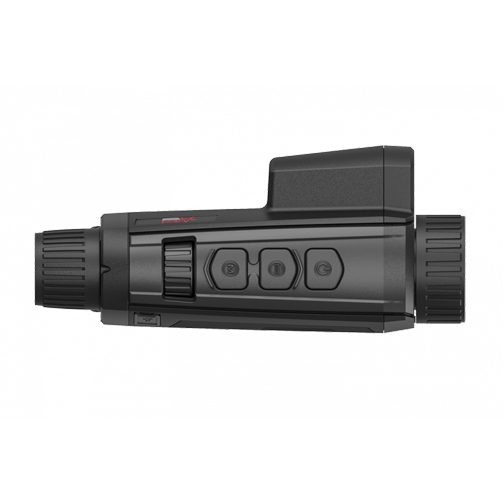

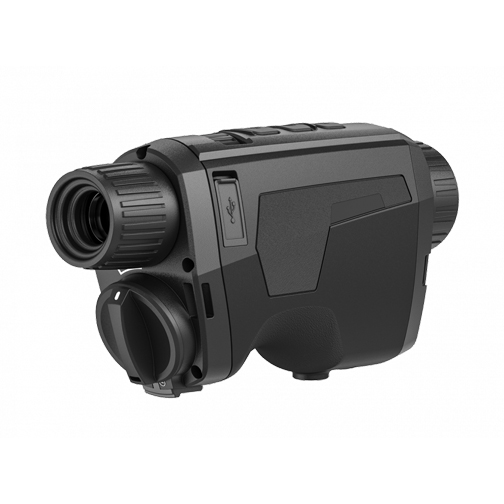

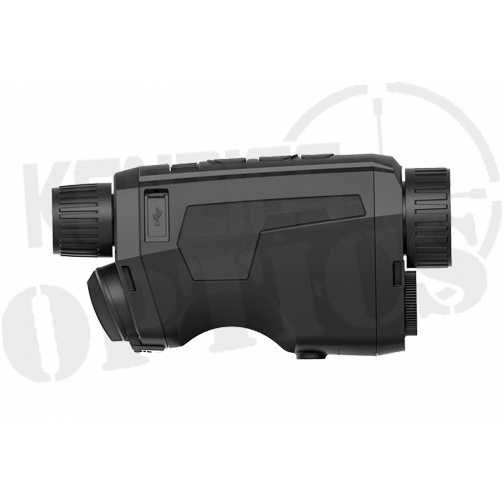

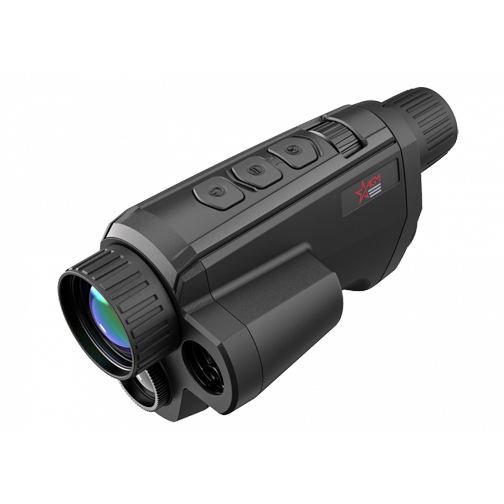

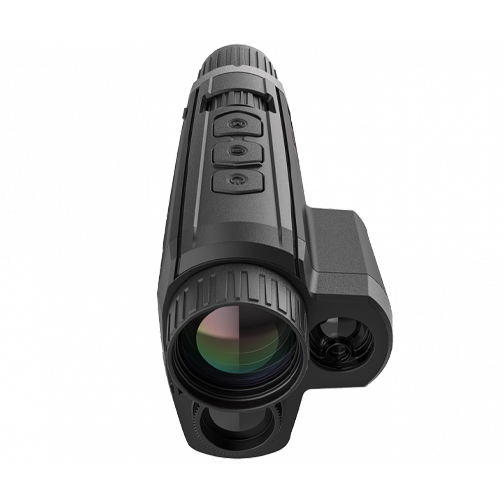

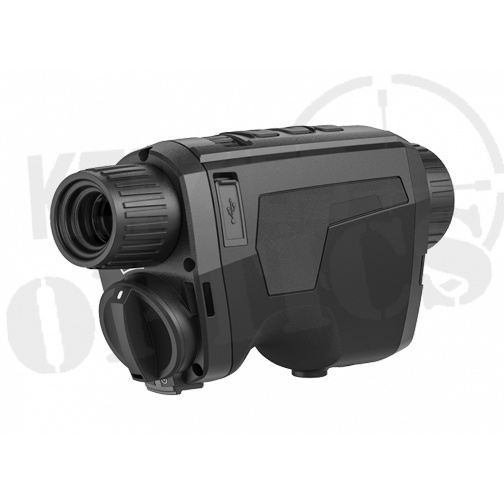

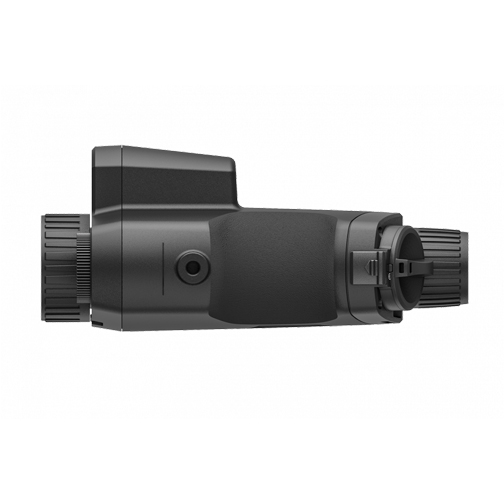

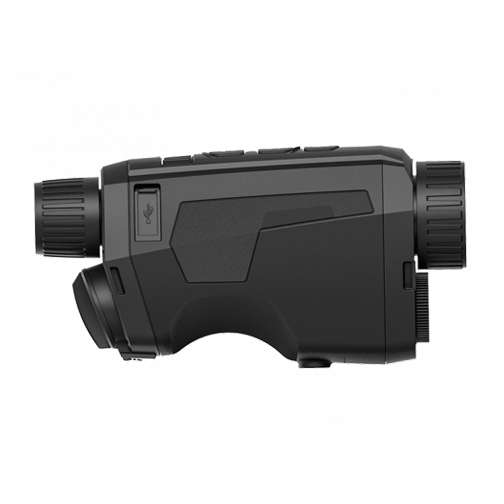

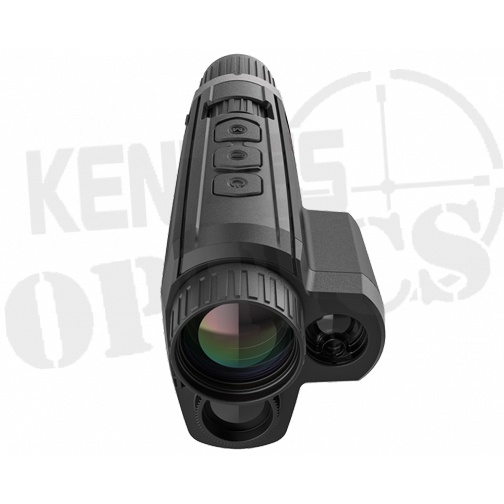

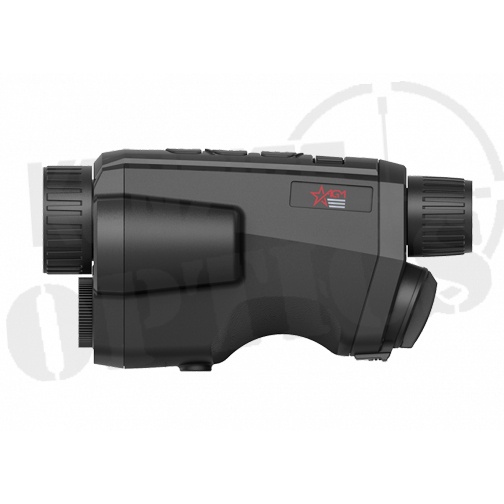

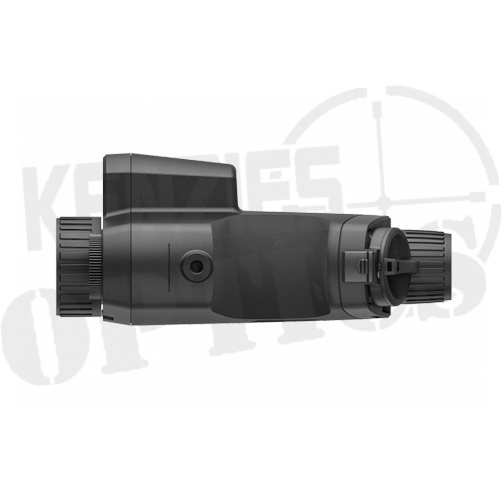

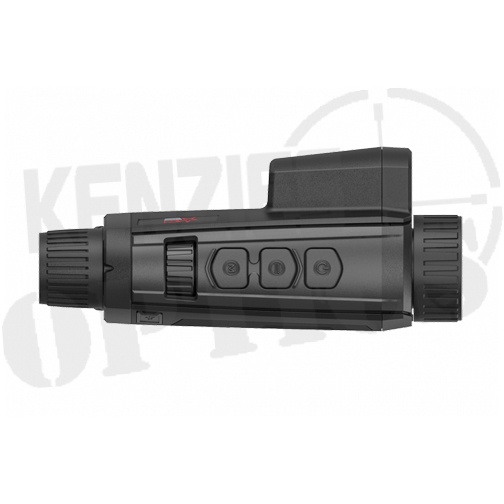

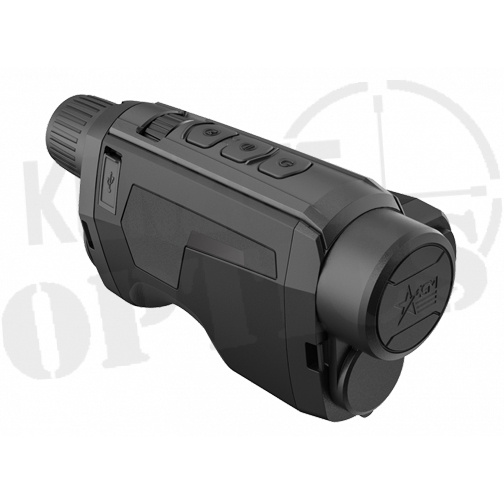

AGM Fuzion LRF TM35-640 Thermal Monocular

$2,895.00

Only 2 left in stock

AGM Fuzion LRF TM35-640 Thermal Monocular

The AGM Fuzion LRF TM35-640 is a Handheld Thermal and Optical Bi-Spectrum Monocular, and was designed to quickly detect hiding objects under extreme environments. It is equipped with 12μm high sensitivity thermal detector, ultra low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The Fuzion LRF features a user friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple.

The monocular offers three different variants of image view: thermal, ambient light and fusion that can be easily adapted depending on different environmental conditions. This high tech monocular has a laser rangefinder for measurement of target distance and is powered by one 18650 rechargeable Lithium battery for up to 5 hours of operating time. In addition, an external power supply can be used to provide an increase in operating time. The waterproof optic can be applied to scenarios including patrol, search and rescue, and more.

AGM Fuzion LRF TM35-640 Features

Bi-spectrum image fusion and object highlight

Detail enhancement and target recognition

Selection of thermal view channel, ambient light channel, or both them combined

12 μm, 35 mK NETD high sensitivity thermal detector

Fast 50Hz imaging

1x, 2x, 4x, 8x digital zoom

Digital image processing technology

Ultra low illumination optical channel

1920×1080 Optical resolution

Eye safe laser rangefinder

1024×768 resolution, 0.39 inch OLED display

Video recording and snapshot, built in EMMC (16 GB)

WiFi hotspot

Standby mode

Up to 5 hours continuous running

Waterproof

Limited 3 Year Warranty

Data Sheet


Specifications

Palettes Black Hot

White Hot

Red Hot

Fusion

Digital NV

Image Fusion (Digital NV with Thermal Overlay)

Working Temperature -20°C to 55°C

(-4°F to 131°F)

Dimension (LxWxH) 158 × 61 × 57 mm

(3.2 × 2.4 × 2.2 in)

Distance Measurement Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Scene Mode Jungle, Recognition
Hotspot Yes
Observation Distance 1,181 m
Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
Optical Image Sensor 1/2 Wavelength 400-1000 nm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh Rate 50 Hz
Aperture F1.0
Resolution 640 × 512
Laser Wavelength 905 nm
Optical Magnification 2.5x – 20x
Lens (Focal Length) Thermal Lens Focal Length – 25mm Optical Module Lens Focal Length – 22mm
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Field of View (H × X) 12.5° × 10°
Digital Zoom 1x, 2x, 4x, 8x
Monitor 1024×768, 0.39 inch, OLED, 50Hz
Storage Built in 16 GB EMMC
Record Video On board video recording
Capture Snapshot Yes
Battery Type One 18650 rechargeable battery (removable)
CVBS Output Yes (via USB)
Battery Operating Time Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display Yes
Weight 510 g

(1.12 Ib)

Protection Level IP67 (Waterproof)




Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
