Description

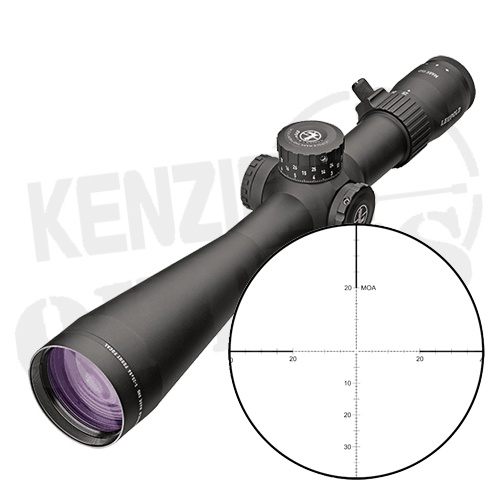

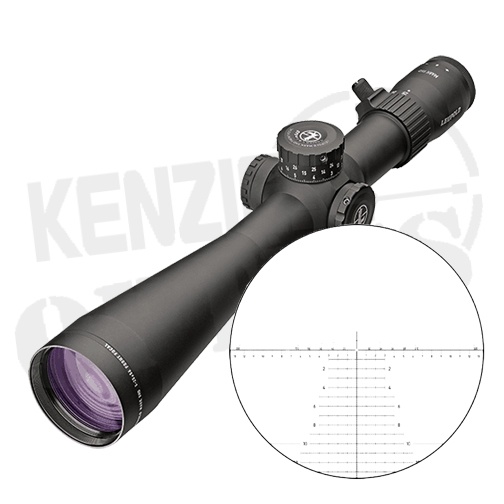

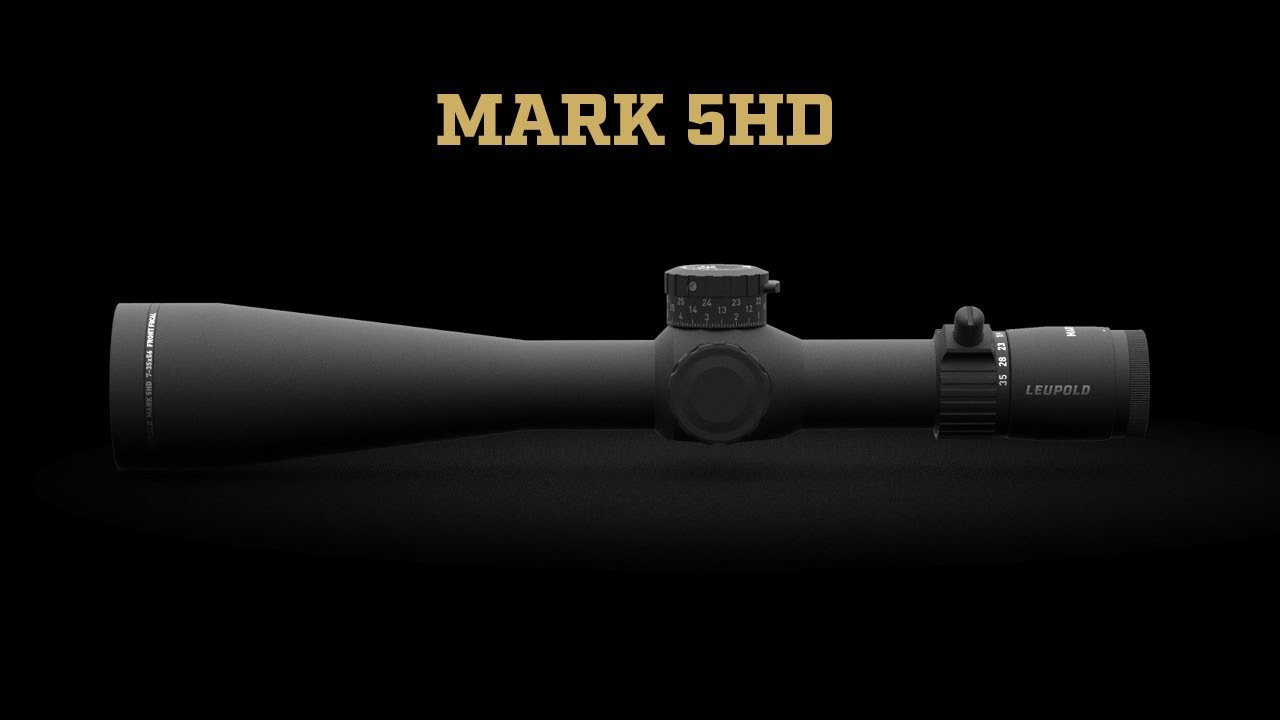

Leupold Mark 5HD 5-25x56mm

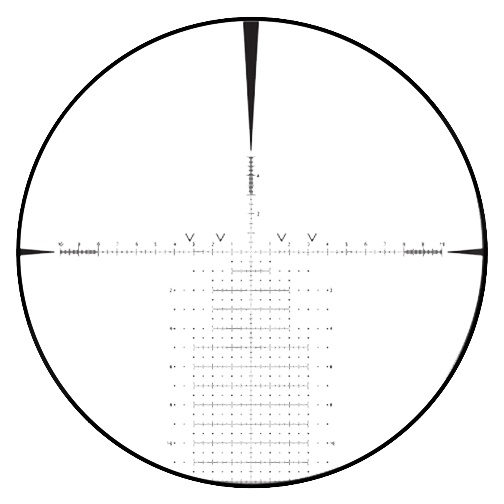

Pick up a Leupold Mark 5HD 5-25x56mm  and you’ll feel the difference: it’s up to 20 ounces lighter than other scopes in its class. Get behind one and you’ll see the difference, from the superior edge to edge clarity and extreme low light performance, to the versatility of the Combat Competition Hunter reticle. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long range rifles and ammo. Ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high speed throw lever so you can put accurate fire downrange faster.

Leupold Mark 5HD 5-25x56mm Features

Punisher Tested

Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

Fast Focus Eyepiece

Brings the reticle into focus quickly with Fast Focus eyepiece

Scratch Resistant Lenses

Extreme Military Standard scratch resistance for added protection

Ultra Lightweight Design

Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction

Waterproof & Fog Proof

Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.

M1C3 Adjustment

1/4 MOA dial with three revolutions of travel, a push button ZeroLock, and a revolution indicator.

Guaranteed For Life

Guaranteed to perform for life, backed by a lifetime warranty

Side Focus

Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.

Front Focal Plane (FFP)

The reticle magnifies along with the image, so you can estimate range at all magnification settings. These reticles are ideal in tactical situations, yet also provide greater accuracy of range estimation for hunters and target shooters.

35mm Maintube

35mm main tube allows you to experience unparalleled windage and elevation adjustment travel.

Twilight Max HD Light Management System

See more in less light with Twilight Max HD Light

Management System

Adds up to 30 extra minutes of shooting light

Eliminates 90% more glare producing stray light than competitors

Premium high definition edge to edge lens clarity

Throw Lever

Allows for near instant magnification changes.

5:1 Zoom Ratio

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

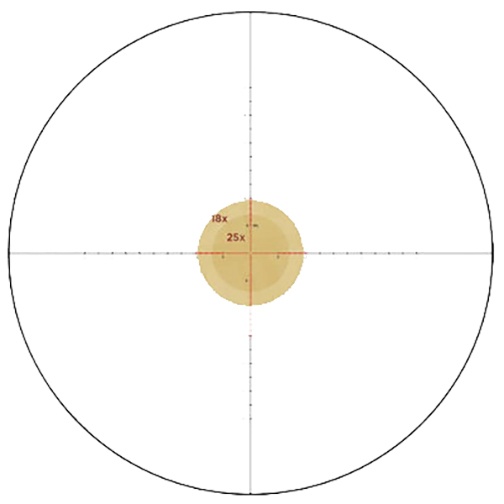

Mark 4 Dial Illumination Control

Positive clicks and clear numerical intensity level indicators: Mark Series product also include off positions between each illumination intensity setting to allow quick return to a preferred brightness.

Product Manual


Specifications

Weight (oz) 30
Linear FOV (ft/100 yd) – Low 20.5
Linear FOV (ft/100 yd) – High 4.2
Length (in) 15.67
Linear FOV (m/100 m) – Low 6.82
Linear FOV (m/100 m) – High 1.40
Length (cm) 39.80
Eye Relief (in) – Low 3.58
Eye Relief (in) – High 3.82
Eye Relief (mm) – Low 91
Eye Relief (mm) – High 97
Weight (g) 850
Elevation Adjustment Range (MOA) 120
Elevation Adjustment Range (MIL) 34.9
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17.5
Exit Pupil (mm) – High 2.2




More from Leupold

Additional information

Weight N/A

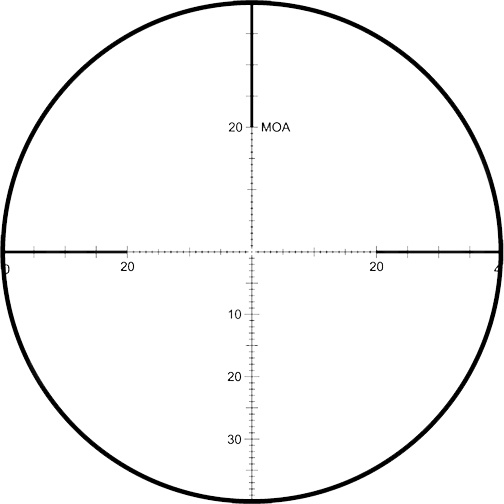

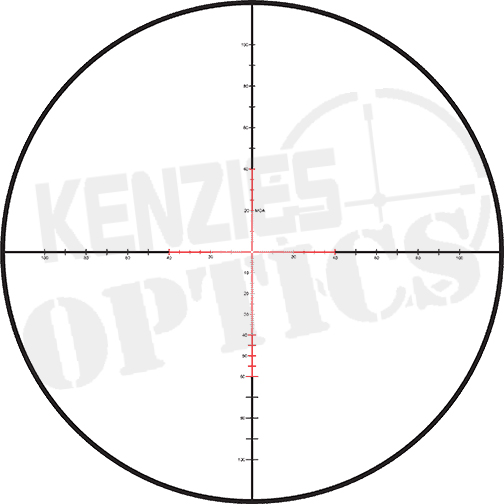

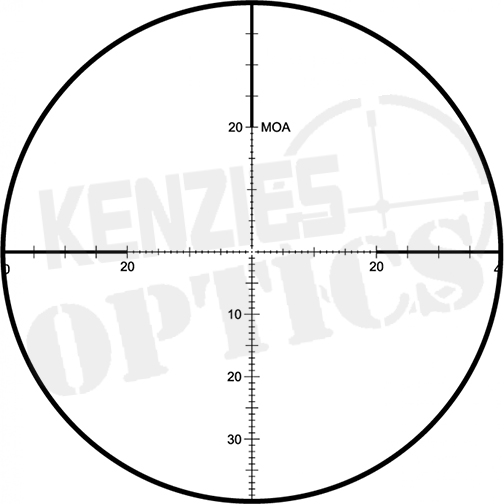

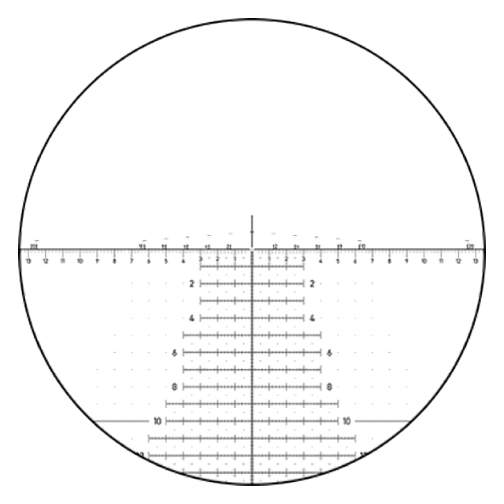

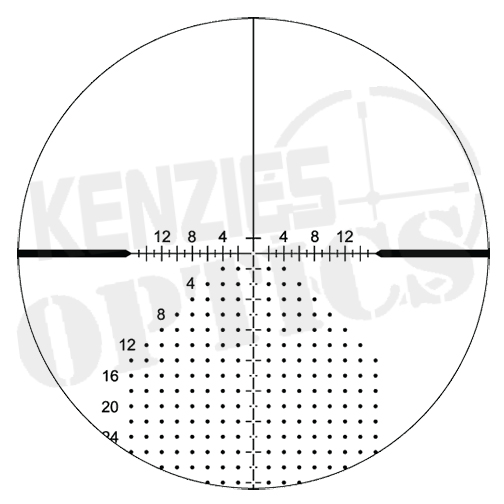

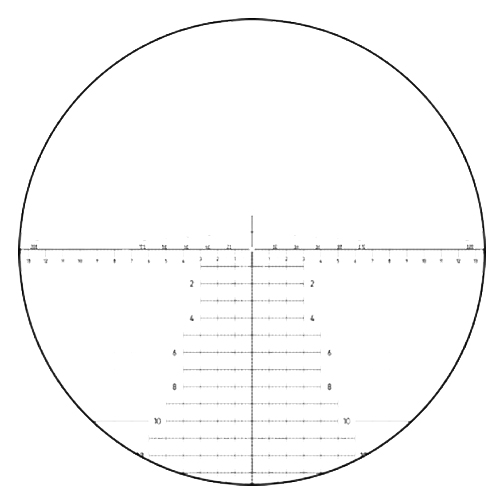

Reticle Options

, , , , , , , , , , , ,
