Leupold Patrol 6HD 1-6×24 Scope – Multiple Options


SKU: N/A Categories: , Tags: , , , ,

Available Options:

Leupold Patrol 6HD 1-6×24 Scope

The Leupold Patrol 6HD 1-6×24 fulfills your needs whether your mission is to protect and serve or you are looking for an edge in competition, this battle ready scope will help you put more rounds on target. If you are looking for a scope that will allow you to go on your next mission without worry the The Leupold Patrol 6HD 1-6×24 is the scope for you. It features an ultra lightweight, low profile design, 1-6 magnification range that lets you engage threats anywhere from tight corners to open fields.

Built on Leupold’s Professional Grade Optical System, it offers unmatched light transmission, industry leading glare reduction, and the clarity and resolution law enforcement officers trust in the most challenging lighting conditions. The Leupold 6HD Patrol will take your lowlight capabilities to the max with an illuminated reticle that draws your eye to the center of the glass for fast, accurate shot placement. A push button illumination control guarantees smooth operation under stress.

Leupold Patrol 6HD 1-6×24 Features

6:1 Zoom Ratio

A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.) so you can dial your power way down for close encounters or all of the way up for long range shots. The larger the zoom ratio, the more. Versatile one scope can be.

Guard Ion

Guard Ion is a hydrophobic lens coating that sheds dirt and water for a maintenance free, clear, crisp image.

High Definition

High definition, calcium fluoride lenses ensure incredible clarity at all magnification levels.

CDS-ZL2 Elevation Dial

The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push button ZeroLock system. It also features Leupold’s award winning Custom Dial System (CDS), which allows users to order a laser marked bullet drop dial to match their exact ballistics and conditions.

Electronic Reticle Level

The Electronic Reticle will flash when the scope isn’t level, promoting more accurate long range shots. It can also simplify the mounting process.

Alumina Flipback Lens Covers Included

Leupold’s high quality Alumina flipback lens covers thread onto the scope to protect the lens from moisture, dirt and debris.

Reversible Throw Lever

This reversible throw lever easily clamps onto specific power selector rings. Its large surface area makes it ideal for quick magnification changes.

Waterproof, Fogproof & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.


 Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial System (CDS) Yes
Custom Dial Compatible No
BDC Dial Included No

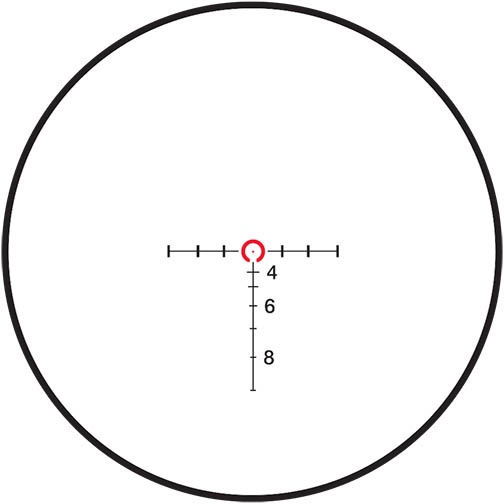

Reticle Illum. CM-R2

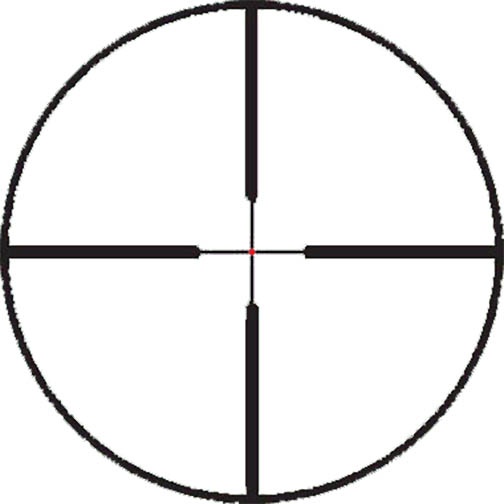

Illum. FireDot Duplex

Light Management System Professional-Grade Optical System
Battery Type CR2032
Switch Type Push Button
Illuminated Yes
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Weight (oz) 16.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49
Elevation Adjustment Range (cm @ 100m) 495
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49
Windage Adjustment Range (cm @ 100m) 495
Windage Adjustment Per Revolution 20 MOA
Magnification Max 6
Magnification Min 1
Objective Lens Diameter (mm) 24
Linear FOV Low Mag (ft@100yds) 120.9
Linear FOV High Mag (ft@100yds) 19.2
Angular FOV Low Mag (Degrees) 22.8
Angular FOV High Mag (Degrees) 3.7
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Fixed Parallax-Free Distance (yd) 150
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
Objective Length (in) 0
