Leupold VX5HD 3-15×56
The Leupold VX5HD 3-15×56 will dominate no matter even if you are in the mountains or on an open plain. The 56mm objective bell maximizes as much exit pupil light as the eye can handle. The VX-5HD defines relentless versatility with its rugged and reliable design. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions.
Leupold VX5HD 3-15×56 Features
CDS Custom Dial System
Our CDS (Custom Dial System) elevation dials allow you to quickly dial your elevation adjustment to different ranges with a custom dial matched to your specific ballistic information. Out of the box CDS scopes come with a MOA scale dial to get you on target. Then you can order your one free custom laser marked dial from the Leupold Custom shop with your exact ballistics and conditions.
Fast Focus Eyepiece
Brings the reticle into focus quickly with Fast Focus eyepiece
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

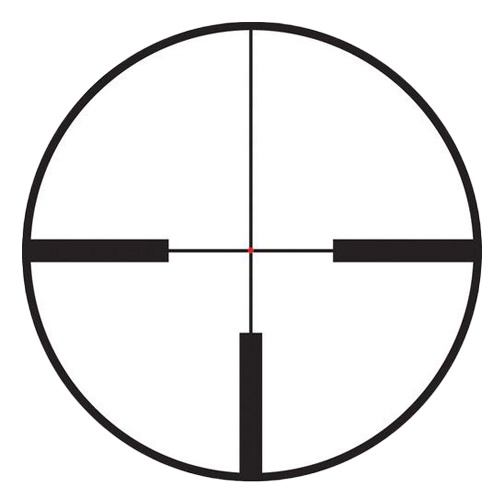

Rear Focal Plane (RFP)
Rear focal plane reticles remain fine and minimally cover the target at high power. Subtensions change with zoom, allowing tuning of ballistic reticles.
Twilight Max HD Light Management System
See more in less light with Twilight Max HD Light
Adds up to 30 extra minutes of shooting light
Eliminates 90% more glare producing stray light than competitors
Premium high definition edge to edge lens clarity
Ultra Lightweight Design
The Leupold VX-5HD 3-15×56 Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction
Waterproof & Fog Proof
Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.
Durable Lens Cover
A field functional and durable bikini style lens cover is included for the utmost lens protection in the field or while in storage.
Creates a visible aiming point in low light conditions with available FireDot illumination
Motion Sensor Technology (MST)
Extends battery life with Motion Sensor Technology (MST)
Automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.
The 30mm maintube offers incredible strength and increased range of windage and elevation adjustment.
Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.
Guard Ion Lens Coating
Sheds dirt and water for clear, crisp images with the Guard ion lens coating
Eliminates accidental dial movement with the push button ZeroLock system while providing two revolutions of adjustment
Push Button Illumination
Easy and simple reticle brightness control with our one button design
5:1 Zoom Ratio
Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

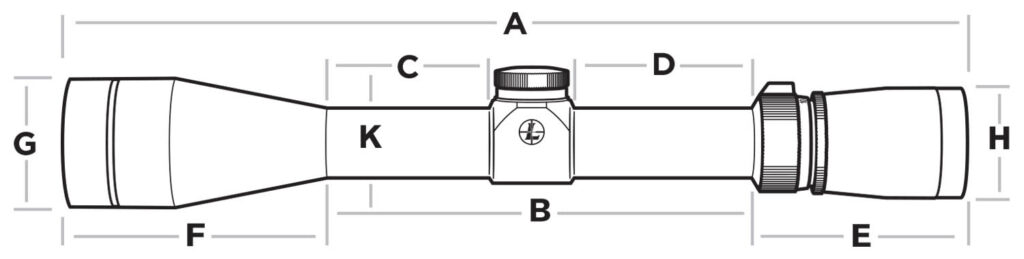

|Length – A (in)||13.58|
|Illustration – C||1.26|
|Illustration – D||2.59|
|Eyepiece Length – E||3.31|
|Objective Length – F||4.94|
|Objective Diameter – G||2.54|
|Eyepiece Diameter – H||1.80|
|Tube Diameter- k (mm)||30|
|Mounting Space – B (cm)||13.5|
|Mounting Space – B (in)||5.32|
|Linear FOV (ft/100 yd) – Low||38.3|
|Linear FOV (ft/100 yd) – High||7.7|
|Linear FOV (m/100 m) – Low||12.77|
|Linear FOV (m/100 m) – High||2.57|
|Eye Relief (in) – Low||3.70|
|Eye Relief (in) – High||3.82|
|Eye Relief (mm) – Low||94|
|Eye Relief (mm) – High||97|
|Elevation Adjustment Range (MOA)||75|
|Elevation Adjustment Range (MIL)||21.8|
|Windage Adjustment Range (MOA)||75|
|Windage Adjustment Range (MIL)||21.8|
|Exit Pupil (mm) – High||3.7|
