Leupold VX6HD 4-24×52
The Leupold VX6HD 4-24×52 is a clear leader in its category and designed for a versatile sportsman granting the best of both worlds with the wide range in magnification. It has a 34mm main tube and a 52mm objective. It is equipped with edge to edge clarity, that gives great brightness, color consistency and resolution. This allows the shooter to take advantage of the first and last 15 minutes of the day. The 4-24 is the most versatile Leupold on the market with the wide zoom range, the latest technology, such as the in scope electronic reticle level, CDS-ZL2 Zero Lock elevation dial, and removable throw lever.

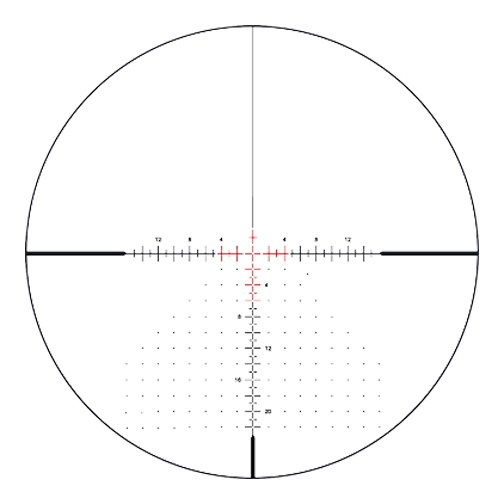

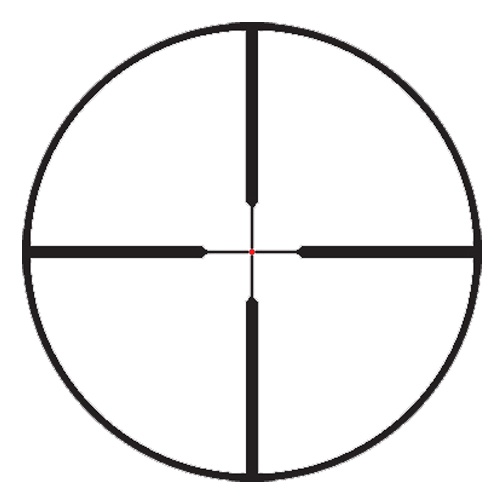

Available in multiple reticle such as: FireDot Duplex, Illuminated Impact 23 MOA, Illuminated TMOA and the Illuminated Varmint Hunter
Leupold VX6HD 4-24×52 Features
CDS Custom Dial System
Spot it, range it, dial and shoot.
Leupold CDS elevation dials allow you to quickly dial your elevation adjustment to different ranges with a custom dial matched to your specific ballistic information. Out of the box CDS scopes come with a MOA scale dial to get you on target. Then you can order your one free custom laser marked dial from the Leupold Custom shop with your exact ballistics and conditions.
Fast Focus Eyepiece
Brings the reticle into focus quickly with Fast Focus eyepiece
Punisher Tested
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3 x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.
Rear Focal Plane
Rear focal plane reticles remain fine and minimally cover the target at high power. Subtensions change with zoom, allowing tuning of ballistic reticles.
Twilight Max HD Light Management System
See more in less light with Twilight Max HD Light
Management System
Adds up to 30 extra minutes of shooting light
Eliminates 90% more glare producing stray light than Competitors
Premium high definition edge to edge lens clarity
Ultra Lightweight Design
Disperses recoil energy for unrivaled durability and performance with ultra-lightweight construction
Waterproof and Fog proof
Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.
FireDot Illumination
Creates a visible aiming point in low light conditions with available FireDot illumination
Motion Sensor Technology
Extends battery life with Motion Sensor Technology
Automatically turns off illumination after 5 minutes of inactivity, but turns on instantly as soon as any movement is detected.
34 mm Main tube
The 34 mm main tube gives incredible strength and increased range of windage and elevation adjustment.
Side Focus
Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.
Guard Ion Lens Coating
Sheds dirt and water for clear, crisp images with the Guard ion lens coating
Push Button Illumination
Easy and simple reticle brightness control with Leupold’s one button design
6:1 Zoom Ratio
Versatile magnification range offers a wide field of view at low power and precise target identification at high power.
CDS-ZL2
Takes away accidental dial movement with the push button ZeroLock system while providing two revolutions of adjustment
Leupold Lifetime Guarantee Warranty »

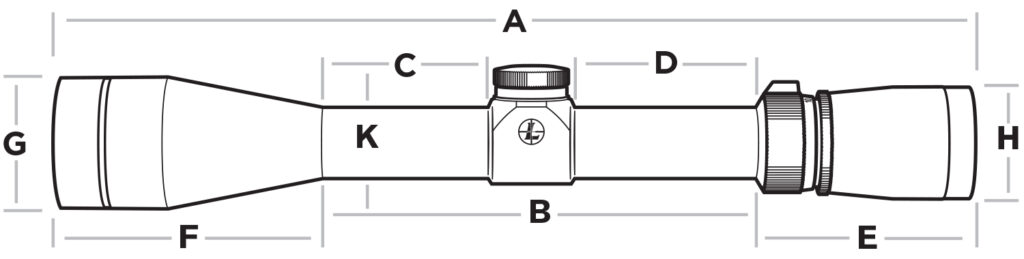

Dimensions |
||||||
Length – A (in) | 14.65 | |||||
Mounting Space – B (cm) | 15.8 | |||||
Illustration – C | 2.10 | |||||
Illustration – D | 2.60 | |||||
Eyepiece Length – E | 3.30 | |||||
Objective Length – F | 5.20 | |||||
Objective Diameter – G | 2.40 | |||||
Eyepiece Diameter – H | 1.80 | |||||
Tube Diameter- k (mm) | 34.00 | |||||
Mounting Space – B (in) | 6.22 |
Specifications |
||||||
Weight (oz) | 25.9 | |||||
Linear FOV (ft/100 yd) – Low | 28.1 | |||||
Linear FOV (ft/100 yd) – High | 4.8 | |||||
Linear FOV (m/100 m) – Low | 9.30 | |||||
Length (in) | 14.65 | |||||
Linear FOV (m/100 m) – High | 1.70 | |||||
Length (cm) | 37.2 | |||||
Eye Relief (in) – Low | 3.7 | |||||
Eye Relief (in) – High | 3.8 | |||||
Eye Relief (mm) – Low | 93.90 | |||||
Eye Relief (mm) – High | 93.90 | |||||
Objective Diameter (in) | 2.05 | |||||
Weight (g) | 734 | |||||
Elevation Adjustment Range (MOA) | 75 | |||||
Windage Adjustment Range (MOA) | 75 | |||||
Exit Pupil (mm) – High | 2.2 |
