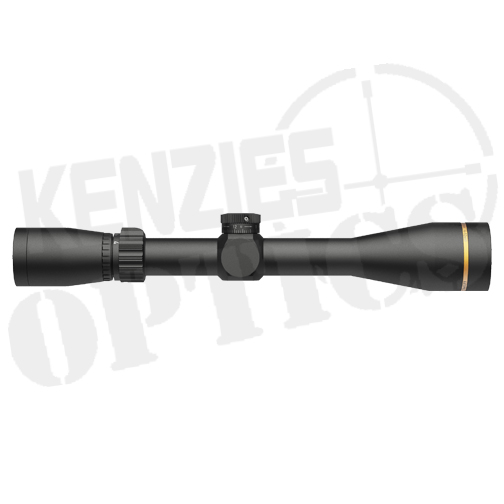

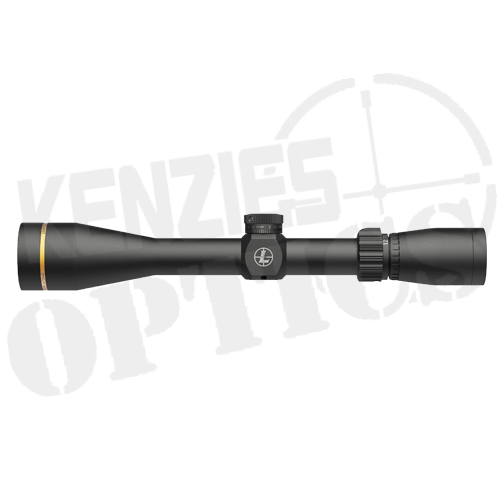

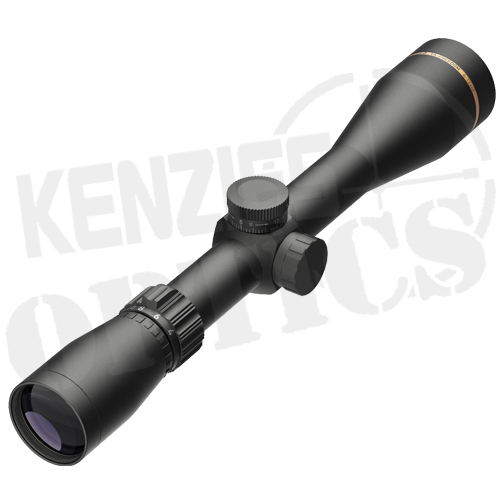

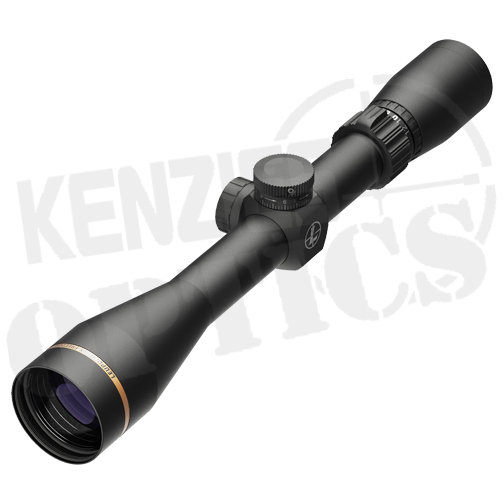

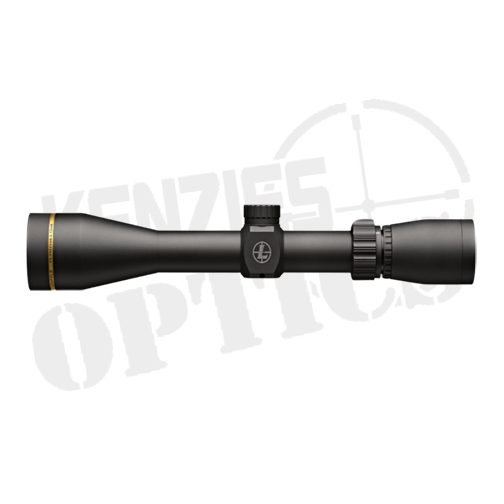

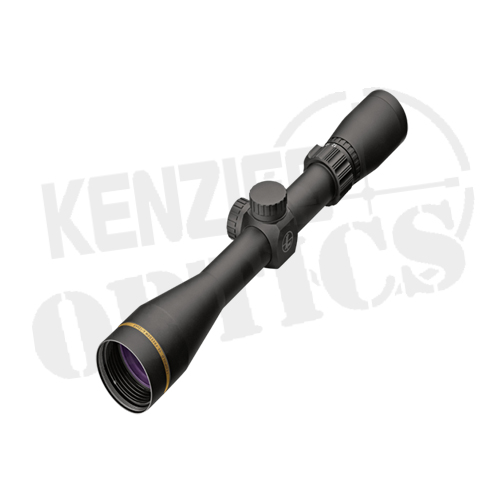

Leupold VX-Freedom 4 – 12 x 40 mm
The Leupold VX-Freedom 4 – 12 x 40 features the dependability and performance that hunters have demanded for years, and now has a lot of new and improved features. It will get the job done every time.
Easy To Grip Power Selector
Quickly change magnifications using the easy to grip power selector
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

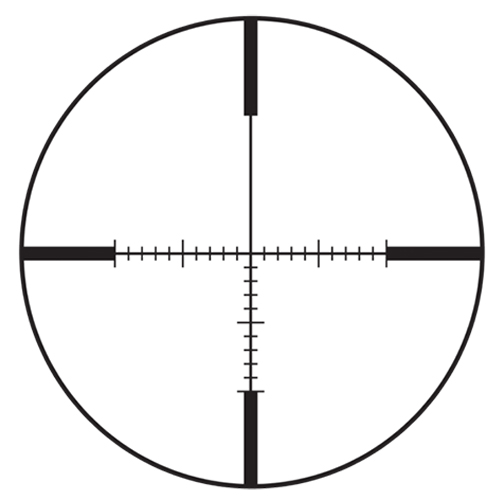

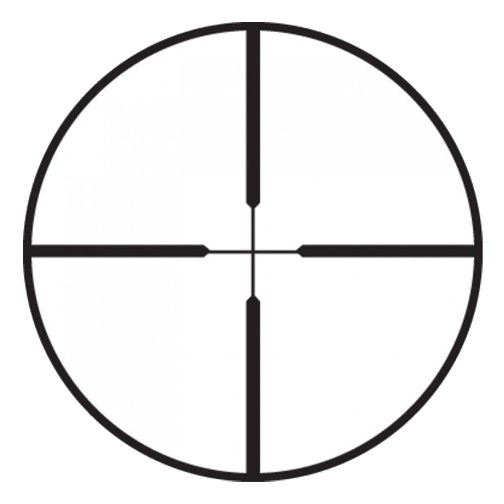

Rear Focal Plane (RFP)
Rear focal plane reticles remain fine and minimally cover the target at high power. Subtensions change with zoom, allowing tuning of ballistic reticles.
Ultra Lightweight Design
Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction
3:1 Zoom Ratio
A versatile 3:1 zoom ratio erector system that is ideal for a wide range of situations.
1/4 MOA Finger Click
1/4 MOA precision finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of extreme use.
Waterproof & Fog Proof
Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.
One inch Maintube
Ultra lightweight 1-inch maintube provides weight savings, durability, and a classic look
Twilight Light Management System
See more in less light with Twilight Light
Adds up to 10 extra minutes of shooting light
Eliminates 80% more glare-producing stray light than competitors
Premium lens clarity
Scratch Resistant Lenses
Extreme Military Standard scratch resistance for added protection
|Length – A (in)||12.17|
|Mounting Space – B (cm)||13.1|
|Illustration – C||2.09|
|Illustration – D||1.85|
|Eyepiece Length – E||3.50|
|Objective Length – F||3.51|
|Objective Diameter – G||1.83|
|Eyepiece Diameter – H||1.56|
|Tube Diameter- k (in)||1.00|
|Tube Diameter- k (mm)||25.4|
|Mounting Space – B (in)||5.16|
|Linear FOV (ft/100 yd) – Low||21.5|
|Linear FOV (ft/100 yd) – High||10.0|
|Linear FOV (m/100 m) – Low||7.17|
|Linear FOV (m/100 m) – High||3.32|
|Eye Relief (in) – Low||4.92|
|Eye Relief (in) – High||3.74|
|Eye Relief (mm) – Low||125|
|Eye Relief (mm) – High||95|
|Elevation Adjustment Range (MOA)||80|
|Elevation Adjustment Range (MIL)||23.3|
|Windage Adjustment Range (MOA)||80|
|Windage Adjustment Range (MIL)||23.3|
|Exit Pupil (mm) – High||3.4|
