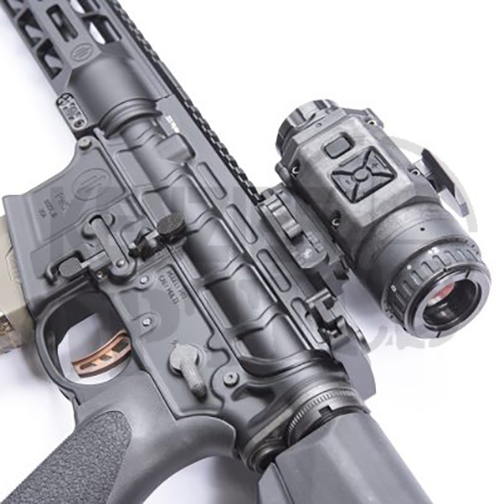

  • N-vision NOX 18 on Rifle, NOX18

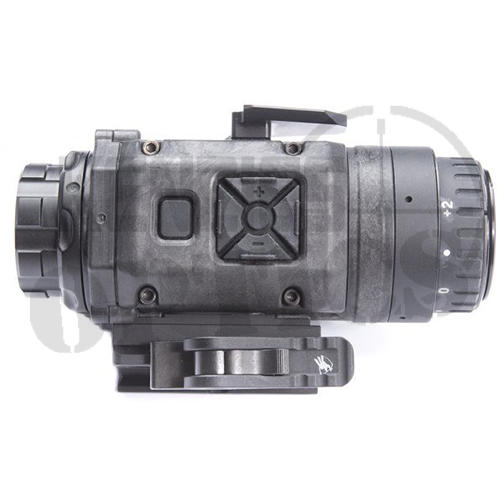

  • N-vision NOX18

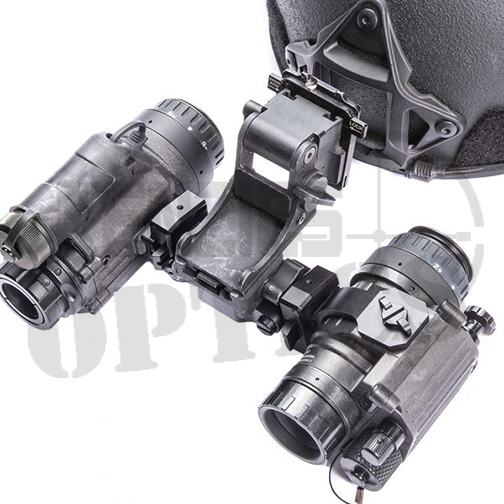

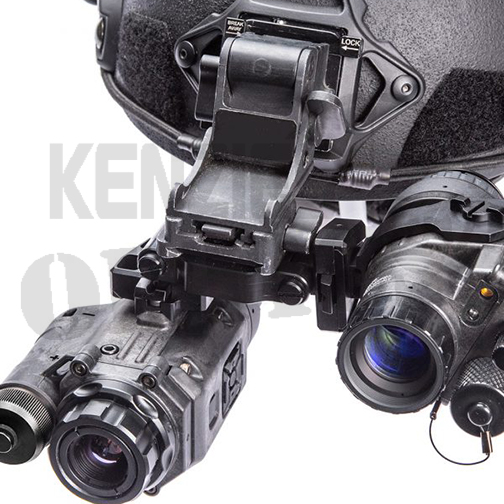

  • N-vision NOX on helmet
  • N-vision NOX Wilcox
  • N-vision NOX, NOX18

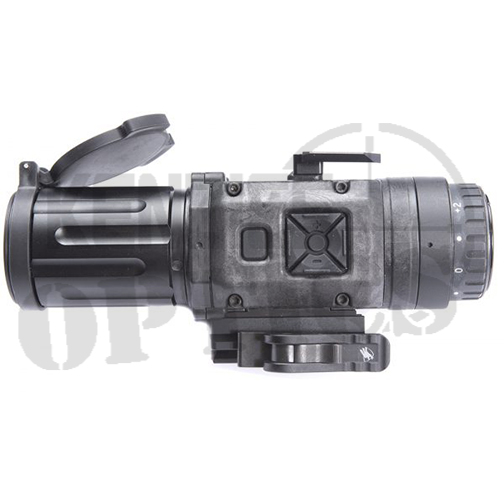

  • N-vision NOX NOX35

NOX Thermal Scope, 640×480 Resolution, 60Hz, 12um, 18mm Lens

Original price was: $6,695.00.Current price is: $5,195.00.

Only 2 left in stock

Fast & Free Shipping $199+

SKU: NOX18 Categories: , , , Tags: , , , , Brand:

Description

N-Vision NOX18 Thermal Imaging Scope

The N-Vision Nox18 is a small 12-micron 60Hz fully functional thermal imaging scope that can serve double duty as a head-mounted monocular or a scanner. This unique product is proudly designed and built in the USA, using the best commercially available BAE thermal imaging cores and the highest grade optical components.

Nox18 can be user-configured for the right or left eye, dual-mounted with another Nox or with a night vision monocular, such as PVS-14. Weapon and/or dovetail mounts are removable to reduce the size and weight of the unit to help achieve optimal NOX configuration.



Specifications

Sensor Pixel Pitch 12 um
Resolution 640 x 480
Refresh Rate 60 Hz
Lens 18mm F1.0
Focus Manual, non-rotating
Field of View 18mm: 24.3(H) x 18.3(V); 30.4 (diagonal)
Digital Zoom 1x/2x/4x/8x
Display Type OLED 640×480 B&W
Power One CR123 or one 18650
Remote power USB 5.0V
External connector Waterproof USB-C
Calibration (NUC) Manual
Weight, CR123 Battery: 13.5 oz (w/o weapon mount)16 oz (w/ weapon mount)
Weight, 18650 Battery: 15.3 oz (w/o weapon mount)17.6 oz (w/ weapon mount)
Size, CR123 Battery: 5.0×2.9×2.4 (w/o weapon mount)5.0×2.9×3.0 (w/ weapon mount)
Size, 18650 Battery: 6.4×2.9×2.4 (w/o weapon mount)6.4×2.9×3.0 (w/ weapon mount)
Detection range 753 yards
Recognition range 267 yards
Identification range 136 yards

Features

N-Vision NOX18 Features

  • Power Supply Options
  • Each NOX ships with a standard CR123 battery and a rechargeable 18650 battery (and charger). Depending on ambient temperature, you can expect up to an hour and a half of run time with a standard CR123 battery and from four to seven plus hours on the rechargeable 18650 battery. For the ultimate power solution, Nox can be powered with an external USB battery bank via the provided USB-C cable.
  • User Interface
  • NOX has five highly ergonomic control buttons that permit immediate access to the frequently used functions (calibration, polarity, zoom, photo, power) and allow access to the user-friendly menu system for zeroing and/or customization of device parameters. This includes a standalone calibration button that provides the user with the ability to calibrate the unit with one hand in under one second.
