Scalarworks LEAP 05 MRO Mount

$159.00

Fast & Free Shipping $199+

Description

Scalarworks LEAP 05 MRO Mount

The Scalarworks LEAP 05 MRO Mount comes in as one of the lightest, strongest, and most compact quick detach optic mounts to ever be created. The Scalarworks LEAP 05 MRO Mount are designed to hold and return to zero under any conditions and is engineered to be the lightest MRO mount, without compromising an ounce of strength.

The Scalarworks LEAP 05 MRO Mount is CNC milled from 7075-T6 billet, which has a vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations. It has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear and surroundings.

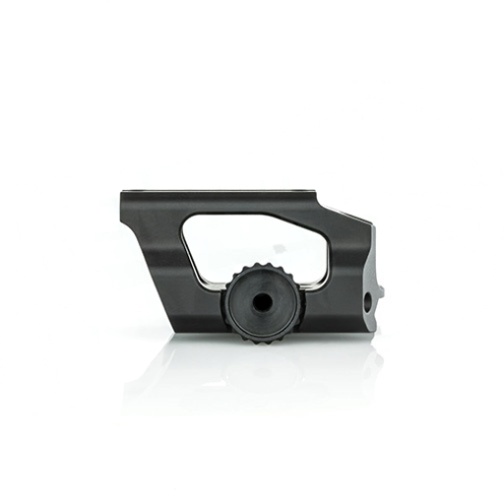

The LEAP mount features Scalarworks patented ClickDrive, quick detach mechanism. It is intuitive, self adjusting and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive doesn’t need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves. The mount is available in 3 height options 1.42″, 1.57″ and 1.93″.





Specifications

Materials7075-T6 Aluminum / 4140H Steel
FinishesType III Anodizing / Flash Nitride

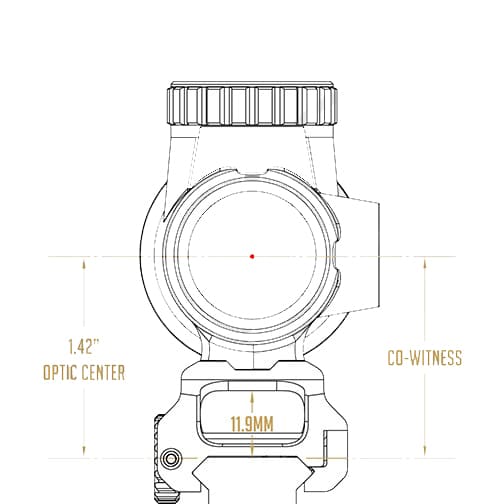

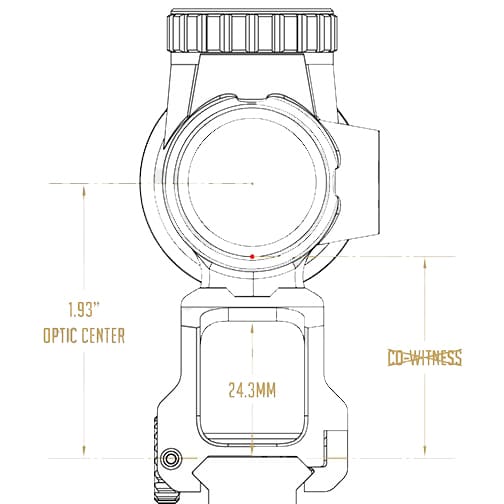

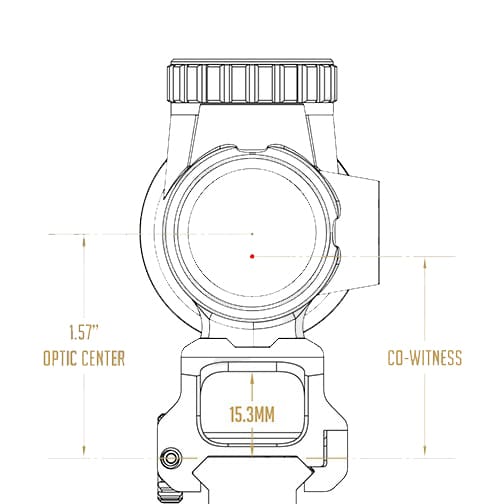

Center height over rail1.42″1.57”1.93”
Co-WitnessAbsolute (1.42”)Lower Third (1.57”)None (1.93”)
Weight1.41oz
OriginUnited States of America
Rails CompatibleMIL-STD-1913 Picatinny*
Trijicon Reflex Sights CompatibleMRO, MRO HD, MRO Patrol
Fasteners#4-48×0.22″ Nylok treated
ToolsT10 Torx driver bit

Features

Scalarworks LEAP 05 MRO Mount Features

  • One Zero
  • Leap mounts hold and return to zero under any condition. Guaranteed.
  • Light Made Right
  • Engineered to be the lightest Trijicon MRO QD mount, without compromising an ounce of strength.
  • Mighty Mount
  • The Leap is the strongest Trijicon MRO Quick Detach mount Scalarworks ever tested. They put a variety of QD mounts on a digital test stand, capable of exerting up to 1500lbs of force, and analyzed load versus displacement data for each. Then used everything we learned from these tests to refine the original design, culminating in the Leap; a quick detach mount that is both the lightest and strongest on the market today.
  • Smooth is Fast
  • The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
  • ClickDrive
  • Scalarworks patented ClickDrive quick detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive doesn’t need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.
