Sector Optics T20X Thermal Imager


Out of stock

Want to be notified when this product is back in stock?

SKU: SO-T20X-01 Categories: , , , Tags: , , ,

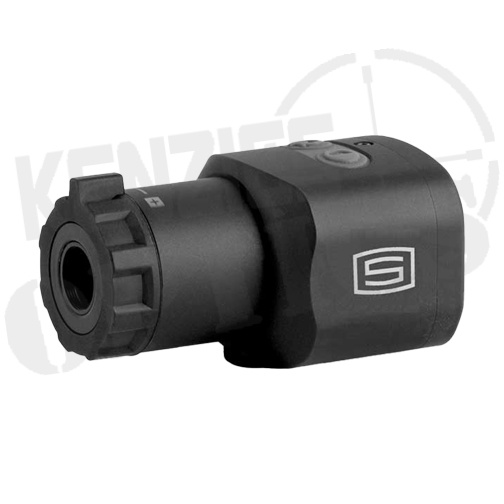

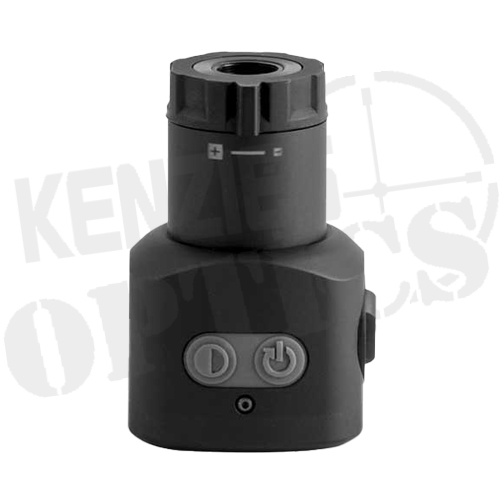

Sector Optics T20X Thermal Imager

The Sector Optics T20X Thermal Imager was designed to offer an optical zoom from 3 to 5.5x in a tiny package. It is an easy to operate compact thermal imager that allows the user to quickly scan any terrain or structure in any lighting conditions for possible movement. The thermal imager features an on board image enhancement, shutter with automatic NUC and auto shutdown motion sensor to save battery power. It has multiple display views: white hot, black hot, nv green and color. Whether used as a handheld device or a mounted sight, you can easily find, sight and engage any target.

Sector Optics T20X Thermal Imager Features

On board image enhancement

Shutter with automatic NUC

Auto shutdown motion sensor saves battery power

Multiple display views: white hot / black hot / NV green / color

Mounting via 30mm mounting rings

T20x can be used in variety of search operations, firefighting and detection and other commercial applications. It’s also a great tool for hunting and outdoor recreation.

T20X Product Manual


Size (L x W x H) 2.8 x 1.8 x 1.5 in

(70 x 46 x 39 mm)

Weight 4.7 oz

(133 g)

Zoom 3 – 5.5

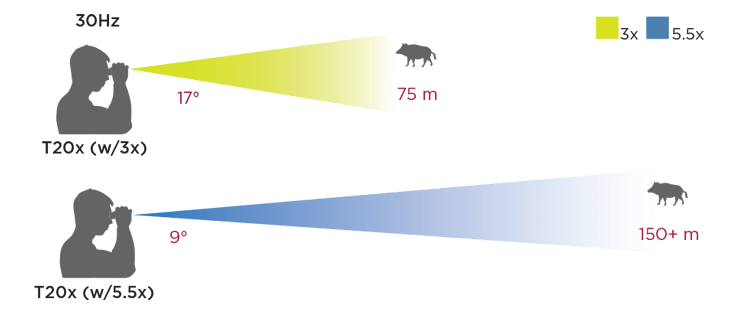

Field of View 17° to 9°
Focus Range 1 yd/m to infinity
Spectral Range 8-14 micron
Power Continuous Operation CR2 3V, 4+ hours
Sensor Resolution 80 × 60 px FLIR Lepton 3
Display (diagonal) 1.3 in

(33 mm)

Display Resolution 128×96
Operating Temperature 15° to 115° F / -10° to +45° C
Frame Rate / Shutter 9 Hz with shutter
Environmental IP66
