Sightmark Mini Shot M-Spec FMS
The Sightmark Mini Shot M-Spec FMS is a reflex sight that was designed with law enforcement officers and professionals in mind. The kit includes a low profile mount for shotguns and pistols along with a riser mount for AR platform. This rugged optic is 100% waterproof and features a durable aluminum housing with a steel protective shield.
Doubling the battery life of the competition, the Mini Shot M-Spec’s extremely low power consumption provides 300-30,000 hours of battery life on one CR1632 battery, while its 12 hour auto shutoff prevents the unit from running out of batteries while you’re not using it. Easy windage and elevation click adjustments make zeroing the 3 MOA red dot reticle a breeze, even without any special tools. 10 brightness levels give users perfect reticle options from low light situations to the brightest days. An ambidextrous digital switch allows the M-Spec to be easily turned on and off by both left and right handed users.
Sightmark Mini Shot M-Spec FMS Features
Very low power consumption
Windage and elevation click adjustments
10 reticle brightness levels
100% waterproof and dustproof
Ambidextrous digital switch brightness controls
Steel shield protects optics
Advanced parallax free lens design
Red reticle illumination
Rugged lightweight aluminum alloy housing
Scratch resistant lens coating
12 hour auto shut off
Included in Package
Rubber cover
Low profile fixed mount
AR riser fixed mount
CR1632 battery
Manual
Specifications |
||||||
Reticle, Type | 3 MOA Dot | |||||
Reticle, Color | Red | |||||
Setting, Brightness | Off, 1-10 | |||||
Magnification | 1x | |||||
Diameter, Objective Lens | 21×15 mm | |||||
Eye Relief | Unlimited | |||||
Elevation Range of Adjustment | 110 MOA | |||||
Windage Range of Adjustment | 110 MOA | |||||
Adjustment Value | 1 MOA | |||||
Parallax Setting | 25yds | |||||

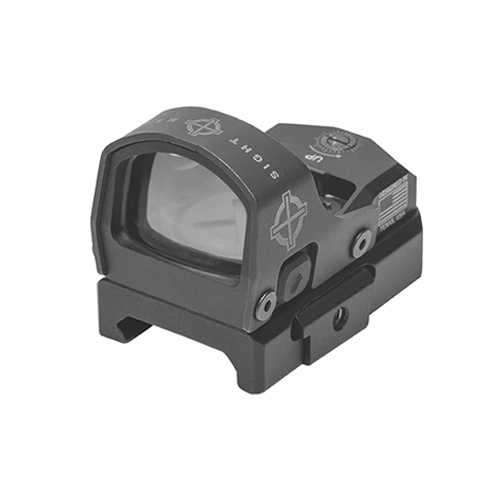

Finish/Color | Matte Black

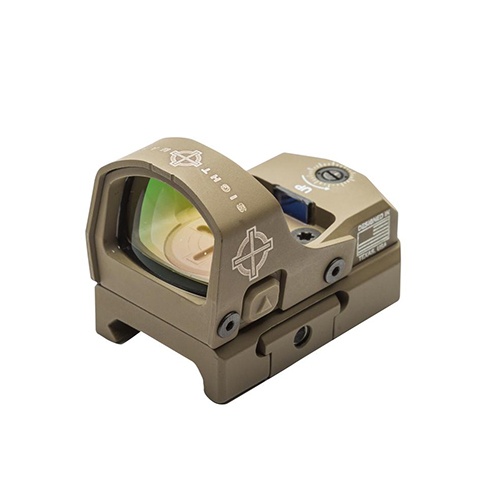

Dark Earth |
|||||
Body Material | 6061-T6 aluminum | |||||
Maximum Recoil | .375 H&H Caliber | |||||
IP Rating (waterproof) | IP67 – waterproof to 1m/3ft for 1 hour | |||||
Nitrogen Filled | Yes | |||||
Shockproof | Yes, 3ft / .9m | |||||
Fog Proof | Yes | |||||
Lens Coating | AR red | |||||
Mount Type | Weaver / Picatinny | |||||
Battery Type | CR1632 | |||||
Battery life, hours | 300-30,000 | |||||
Battery Voltage | 3 V | |||||
Operating temperature, F/C | -22 to 122 / -30 to 50 F/C | |||||
Length w/ low mount | 1.73 / 44 in/mm | |||||
Width w/ low mount | 1.14 / 29 in/mm | |||||
Height w/ low mount | 1.34 / 34 in/mm | |||||
Weight w/ low mount | 2.3 oz. | |||||
Width w/ riser mount | 1.14 / 29 in/mm | |||||
Length w/ riser mount | 1.73 / 44 in/mm | |||||
Height w/ riser mount | 2.2 / 56 in/mm | |||||
Weight | 3 oz. |
