Swampfox 1-6×24 SFP Arrowhead Series Scope – Multiple Options

$375.00

SKU: N/A Categories: , Tags: , , , , , , ,

Available Options:

Swampfox 1-6×24 SFP Arrowhead Series Scope

The Swampfox 1-6×24 SFP Arrowhead Series Scope a Low Power Variable Optic (LPVO). It meets or exceeds every requirement for serious law enforcement and self defense applications. The scope features locking turrets that require no tools to prevent unintentional adjustments. The Arrowhead series is a state of the art optical design that creates a brighter sight picture, a wider field of view and excellent resolution. The Swampfox 1-6×24 SFP Arrowhead Series Scope is available in 2 Second Focal Plane reticle options: Guerrilla Dot BDC Long and Guerrilla Dot MOA Long.

Swampfox 1-6×24 SFP Arrowhead Series Scope Features

Ready to Serve

Designed from the outset to be duty grade, these 1-6x, 1-8x, and 1-10x Low Power Variable Optics are ready for the most serious law enforcement, competition, and hunting applications. Meet the Arrowhead.

Second Focal Plane

Second Focal Plane construction provides a consistent reticle size at all magnifications. The result is an instant, familiar sight picture for unbeatable speed when it counts most– from close quarters distance out to 200 yards.

Included Throw Lever

You need to be at maximum magnification to use the medium range holdovers, so Arrowhead’s included throw lever lets you slap your magnification to the max in a heartbeat. Arrowhead’s lever attaches directly via four bolts—there’s no ring to slip or loosen over time.

Locking Windage and Elevation Turrets

Arrowhead features push-pull locking turrets that require no tools and can be quickly used out in the field. Push the turrets towards the scope body to lock them in place. Pull them away from the scope body to adjust. Real simple, real tough. No more worries that a turret got “bumped” away from its zero when you weren’t looking. MOA reticles are paired with 0.5 MOA-per-click turrets. MIL reticles are paired with 0.1 MIL-per-click turrets.

Brightest Day, Darkest Night

Arrowhead features dual LED emitters, making daylight bright etched reticle illumination possible at the highest settings. For those who must press on in the darkest night, the first two brightness settings are night vision compatible and cannot easily be seen by the naked eye at all. Arrowhead’s illumination knob features a tactile “OFF” notch between each of the 12 brightness settings.​

Sight Picture Superiority

Great glass is just the start of what makes a truly superior sight picture. Arrowhead’s optical engineering, the math that dictates how the lenses transmit the light through Arrowhead, is state of the art. You’ll see the difference as soon as you look through Arrowhead—at any magnification. ​

Great Glass is Just the Start

This is the best glass we know how to make, carefully infused with rare earth metals and polished to perfection. Only the most immaculate lenses are worthy to move on to the next step. The best anti-reflection, anti-fog, anti-scratch, and hydrophobic coatings are then applied and checked carefully before lens installation.​

Better Math, Better Scope

Arrowhead’s advanced optical engineering results in a wider field of view and superior overall brightness, without sacrificing eye relief or eye box characteristics, even at full magnification. You get it all with Arrowhead.

Speed is Fine, Accuracy is Final

Arrowhead’s fast focus eyepiece, excellent optical characteristics, and user-friendly controls make it a very “fast” scope for close quarters shooting. As range increases, more precision is required. Arrowhead’s turret tracking and reticle fidelity is excellent. From the flat, true 1x all the way out to 6x, 8x, or even 10x magnification, Arrowhead excels in a huge variety of real-world shooting situations. ​

Zero Reset Turrets

After sighting in your rifle it is easy to reset “zero” indication on the turrets using just a coin or wide screwdriver to release the outer turret and re-orient it. This very important feature can be adjusted in seconds without affecting the push/pull locking system at all.

Ready for Duty

Arrowhead’s internal components are made of stronger materials and machined to the finest tolerances we can achieve. Even the main scope body is machined from a harder grade of aluminum. Toughness and precision are both increased at the same time, without sacrificing one goal to boost the other.

Guerrilla Dot BDC Long Reticle

Arrowhead’s “Guerrilla Dot BDC Long” 5.56 NATO / .308 Win Bullet Drop Compensation reticle builds on the successful BDC from our Tomahawk series. A 50/200 battlesight zero center dot provides good speed up close, followed by shoulder ranging holds to 500 yards. S-Wing chevrons provide very fine aiming points for precision shots at 600, 700, and yeah, 800 yards. ​

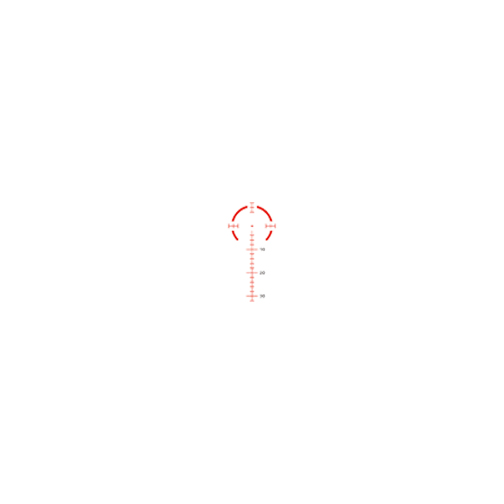

Guerrilla Dot MOA Long Reticle

Not shooting 5.56 or .308? “Guerrilla Dot MOA Long” has you covered. A full 30 MOA of vertical holdover ladder is incorporated. Chrony your rifle, run your numbers through a ballistic calculator, and see how far you can stretch it. Can you take your 6.5 Grendel to 900 yards? Can you take your 6.5 Creedmoor to 1000 yards, with a 1-10x LPVO? Arrowhead’s MOA reticle is ready if you are.

Stubbornly Resilient

We designed and built Arrowhead for use in the most serious situations. Law enforcement patrol rifles, home defense carbines, defense of livestock from predators, hunting dangerous game, and more. We know that some of our customers will take Arrowhead into harm’s way. Arrowhead’s durability is our best statement of taking that responsibility extremely seriously. ​

Included in the Box

Scope

Throw Lever

Wrench for throw lever

Flip Up Lens Caps

Scope Cloth

Battery

Product Manual

Reticle Manual




Specifications

Magnification 1-6x
Tube Diameter 30mm
Objective Lens Diameter 24mm
Exit Pupil (mm) 7.6mm-3.9mm (1X-6X)
Eye Relief (in) 3.39-3.54″ (1X-6X)
FOV @ 100 Yards (ft) 119.9-19.27′ (1X-6X)
Click Value 1/2 MOA
Parallax Setting 100 yds
Travel Per Rotation 60 Clicks/ 30 MOA
Max Elevation Adjustment 100 MOA
Max Windage Adjustment 100 MOA
Lens Coating Fully Multi-Coated/ Anti-fog/ Hydrophobic
Illumination 12 Position Illumination turret
Battery Side-mounted CR2032 Battery
Reticle BDC

MOA Glass Etched Illuminated

Magnification Required for Reticle Accuracy 6x
Fast Focus Diopter Yes, -2 to +2
Turret Style Push/Pull Locking Turrets with Zero Reset
Length 10.67″
Weight 20.36 oz
Waterproof Rating IPX7
Impact Resistance 1,100 G Forces
