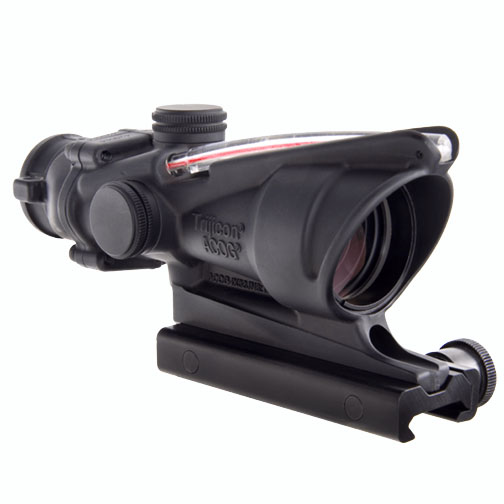

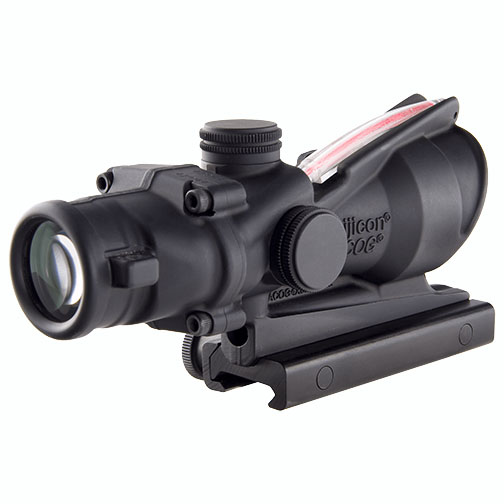

Trijicon ACOG 4x32mm Red Chevron Reticle – TA31F

/////Trijicon ACOG 4x32mm Red Chevron Reticle – TA31F

Trijicon ACOG 4x32mm Red Chevron Reticle – TA31F

$1,149.99

5 in stock

The Trijicon ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact riflescope with an illuminated reticle pattern for use in bright to low/no light. The ACOG is designed to be extremely durable and reliable. Combining traditional, precise distance marksmanship with CQB speed, many variants include a bullet drop compensated (BDC) reticle. Every feature of its design was chosen for a single purpose: to provide increased hit potential in all lighting conditions.

The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.



5 in stock

SKU: TA31F Categories: , , , Tags: , , , ,

Description

Features

Battery Free Illumination

This Trijicon ACOG for sale features a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Rugged Aluminum-Alloy Housing

Forged 7075-T6 aircraft aluminum-alloy housing provides for a nearly indestructible sighting system.

“Both Eyes Open” Design

The Trijicon ACOG TA31 4×32 can be used as a CQB sight when shooting “both eyes open,” utilizing the Bindon Aiming Concept (see below).

Superior Quality Glass Lenses

Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion.

Fixed Magnification

Fewer moving parts than a variable optic equals more durability.

Combat Proven

No other magnified optic has been used more in combat than the ACOG.

Shock-Resistant

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

Waterproof

Dry-nitrogen-filled to eliminate fogging. Five times more waterproof than military standard requirements.

Limited Lifetime Warranty

Tritium lamp is warranted to illuminate for 15 years on fiber optic scopes and 10 years on non-fiber optic scopes.


Bindon Aiming Concept

Although human vision is based on a binocular or two-eyed vision of an image, traditional riflescopes present a monocular view of the target. This monocular view significantly decreases vision capabilities and makes it difficult to acquire and track targets.

Traditionally, “both eyes open” aiming has been widely used with iron sights or reflex-style sights, but use with a magnified scope was often deemed implausible. The Bindon Aiming Concept (BAC) is a method of combining “both eyes open” aiming while using a magnified scope.

Shooting with “both eyes open” offers several advantages to the user: better situational awareness, a far superior sense of balance, a wider field-of-view, and far less eye strain. These advantages aid the shooter in quick target acquisition and improved shooting performance.


Utilizing BAC

When tracking a moving target with your shooting eye through a  riflescope, the image appears blurry as the riflescope moves due to the magnification. This blurriness forces the brain to automatically switch eye focus and take in target data from the non-shooting eye (non-magnified). Due to the use of a highly illuminated aiming point in most Trijicon ACOG for sale, the reticle remains visible in the shooting eye and your brain will superimpose the aiming point onto the non-magnified target.

When the weapon is moving onto the target, you will not notice any magnification, all that will be seen is the illuminated reticle. Once you slow the weapon onto the target, the target will “zoom” in, allowing you to identify and engage more accurately if necessary. This aiming concept happens naturally, without conscious thought, for those with equal or close-to-equal vision in both eyes.


Finding Your Dominant Eye

In order to maximize the potential of “both eyes open” aiming, you must know which eye is dominant. To determine this, conduct the following test:

  1. First, OPEN BOTH EYES, and hold you index finger out in front of you line of sight on a fixed object.
  2. Next, CLOSE your non-shooting eye and note the position of finger on target.
  3. Then OPEN BOTH eyes, keeping finger on target.
  4. Finally, CLOSE opposite eye and note position of finger on target.

If your finger/aiming point does NOT move, that is your dominant eye. If your finger/aiming point moves off target at a great distance, your OTHER eye is dominant.


Specifications

Magnification 4x
Objective
Size
32mm
Bullet
Drop
Compensator
Yes
Length 5.8in
Weight 9.9oz
without mount
Illumination
Source
Fiber Optics
& Tritium
Reticle
Pattern
Chevron
Day
Reticle
Color
Red
Night
Reticle
Color
Red
Calibration .223
Bindon
Aiming
Concept
Yes
Eye
Relief
1.5in
Exit Pupil 8mm
FOV
(Degrees)
7
FOV
@ 100 yards
36.8ft
Adjustment
@ 100 yards
(clicks/in)
2
Mount TA51
Mount
Comes
With
TA51
Housing
Material
Forged
Aluminum

INCLUDED IN THE PACKAGE:

Flattop Mount(TA51)
4×32 Scopecoat(TA64)
LENSPEN(TA56)
Lanyard Assembly for Adjuster Caps(TA71E)
Trijicon Logo Sticker(PR15)
ACOG Manual
Warranty Card


Additional information

Weight .83 lbs
ACOG Reticle Option

Green Chevron Dual Illuminated, Green Crosshair Dual Illuminated, Green Doughnut Dual Illuminated, Green Horseshoe/Dot Dual Illuminated
