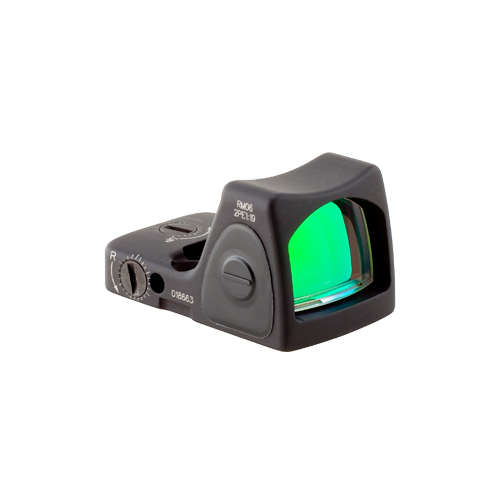

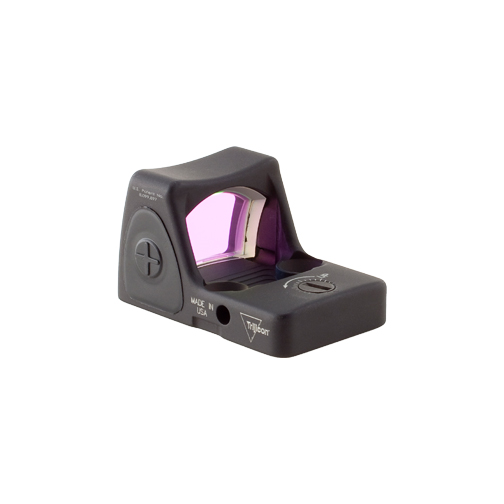

Trijicon RMR 3.25 Moa Type 2 – RM06
The Trijicon RMR 3.35 Moa Type 2 was designed for increased durability and puts the illumination control in the user’s hands. Easy to use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR for storage. The automatic mode functions the same as the LED RMR version. If a manual mode has been chosen, the RMR will remain in manual mode for 16.5 hours following the last push of a button. After 16.5 hours, the optic will default back to the automatic mode so that the RMR will be ready for your next mission.
All RMR Type 2 Adjustable LED sights are compatible with night vision devices, with the 3.25 MOA Dot size being the most popular. Additionally, the user can also lock out the buttons so that the RMR functions in automatic mode only. This ensures that inadvertent button pushes do not cause a loss of aiming solution. The 3.25 MOA Dot in the RM06 is the most versatile and popular of all RMR dot sizes. The dot is small enough to allow accurate shooting at range while also being big enough to locate quickly. It’s suitable for military, law enforcement, concealed carry self-defense, target shooting and hunting applications.
NOTE: The RMR Type 2 has identical physical dimensions and mounting footprint to that of the original RMR Type 1. If selecting an RMR for mounting on the Glock MOS system or Springfield OSP pistol, a Trijicon RMR mounting kit (AC32064) is required.
Trijicon RMR 3.25 Moa Features
Unique, patented housing shape diverts the force of an impact away from the lens, greatly increasing durability.
True Color, Multi Coated Lens
Creates a wide band light transmission for minimal change in target area color.
Easily Adjustable Windage/Elevation
No need for special tools. 1 MOA per click.
Dual Illuminated Option
Tritium phosphor lamp illuminates reticle in low light conditions and fiber optics automatically adjust the brightness level and contrast to available light conditions.
Adjustable LED Option
Easy to use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR for storage.
Multi Platform Friendly
Multiple primary applications including rifle, pistol, shotgun and carbine, or use as a secondary sight with a magnified optic.
Built to Handle the Worst
Designed to be waterproof to 20 meters (66 ft.)
Limited Lifetime Warranty
Tritium lamp is warrantied by Trijicon to illuminate for 15 years from date of original manufacture (Dual Illuminated RMR). Electronics are warrantied for 5 years from date of original manufacture (LED & Adjustable LED RMR).
Ruggedized battery contacts and electronics ensure performance and survivability in harsh environments (LED & Adjustable LED RMR only).
Battery Conservation Mode
Automatically adjusts aiming dot to ambient lighting conditions after 16.5 hours (LED & Adjustable LED RMR only).
|Length x Width x Height||1.8 in x 1.1 in x 1 in
(45.72 mm x 27.94 mm x 25.4 mm)
|Weight||1.2 oz. (34.02 g)|

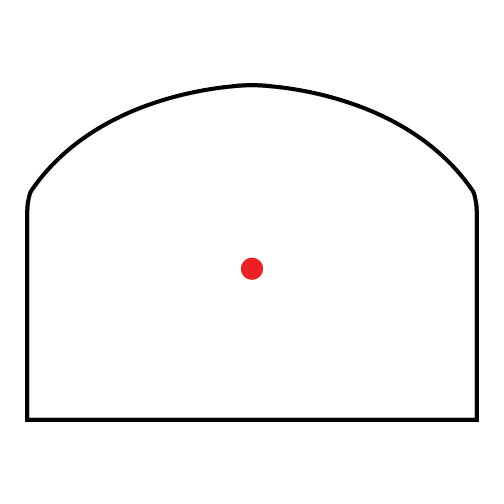

|Reticle Pattern||3.25 MOA Dot|
|Day Reticle Color||Red|
|Night Reticle Color||Red|
|Bullet Drop Compensating (BDC)||No|
|Bindon Aiming Concept™ (BAC)||No|
|Power Source||1 CR2032 Lithium Battery|
|Battery Life||Over 4 years of continuous use (when used at 70ºF (21ºC)) at setting 4 of 8. *Extreme temperatures (high or low) will affect lithium battery performance.|
|Adjustment||1 MOA Per Click|
Low Picatinny Rail Mount (RM33)
Tall Picatinny Rail Mount (RM34)
Weaver Rail Mount (RM34W)
ACOG Mount (RM35)
ACOG Mount (RM36)
Battery ACOG Mount (RM66)
|Housing Material||Forged Aluminum|
Trijicon Export Compliance
Trijicon Products are subject to export controls administered by the U.S. Department of Commerce or the U.S. Department of State and require an export license to be shipped outside of the United States. Export or re-export without prior authorization from the U.S. Government is prohibited. For this reason, we only sell directly to established distributors, who have provided the necessary information and documentation required for proper authorization to export.
For additional information, please contact the Trijicon Export Compliance Team by calling 1-248-960-7700.
