Trijicon VCOG 1-8×28 Scope – Reticle Options


Available Options:

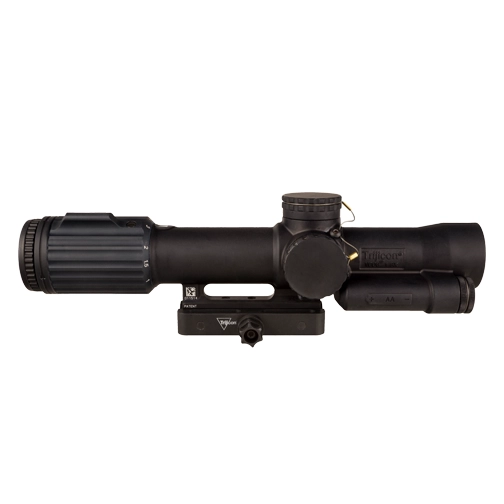

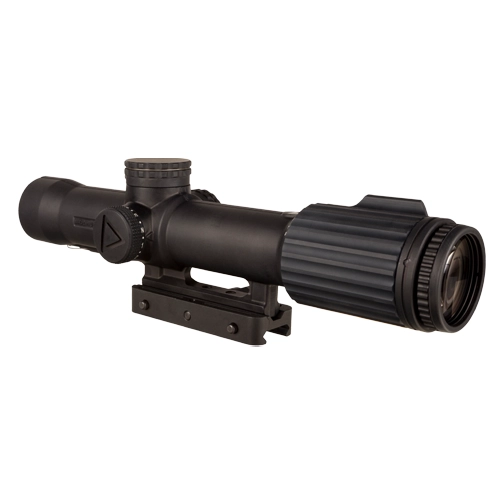

Trijicon VCOG 1-8×28 Scope

The Trijicon VCOG 1-8 is an extremely rugged, variable magnification scope designed for close quarter battle and long distance shooting. With a forged aircraft grade 7075-T6 aluminum housing, the VCOG is nearly indestructible. Amazing glass gives you great clarity and color with zero distortion. The universal segmented circle MOA or MRAD crosshair dot reticle is designed for multi platform use, accommodating multiple calibers, ammunition weights, and barrel lengths.

The first focal plane reticle allows subtensions and drops to remain true at any magnification, letting the user to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery, the 1-8 x 28 VCOG gives a battery life of over 600 hours at setting 6. Choose from 11 different brightness options, 2 night vision settings, 8 day settings, and 1 super bright setting. An integrated dial fin helps for easy rotation through the magnification range, and a near constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters.

Trijicon VCOG 1-8 Features

Superior Quality Glass

Multi coated lenses bring great clarity and light gathering capabilities with zero distortion

Bright, Crisp Illumination

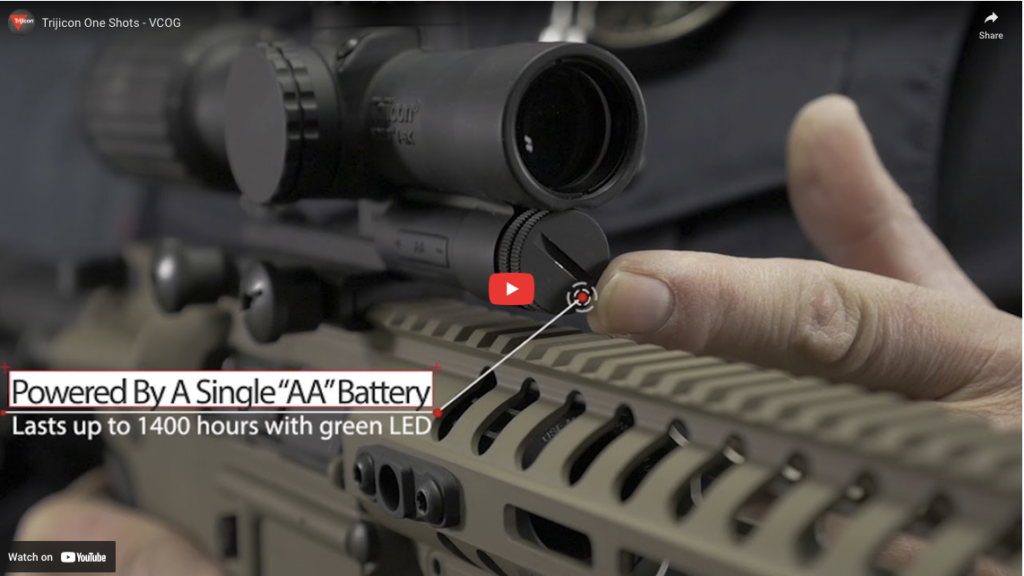

Brilliantly illuminated reticle is powered by a single AA battery.

No Rings Needed

The need for ring mounts is gone with the integrated mounting adapter that helps with quick and easy mounting to any rail system. Compatible with many rails in the marketplace made to fit the ACOG.

Virtually Indestructible

Tested to MIL STD 810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.

Quick, Accurate Ranging Reticle

1-8 x 28 offers Universal MRAD and MOA reticles

Adjustable Brightness Settings

Rapid Target Acquisition

First focal plane reticle lets you rapidly acquire target and apply correct hold throughout magnification range.

Easy to Set Adjusters

Lets you to easily adjust windage and elevation.

Quick Magnification Adjustments

Integrated dial fin helps for easy rotation through magnification settings.


Length x Width x Height 10.8 in x 2.8 in x 2.8 in
Magnification 1 to 8 x
Objective Size 28 mm
Reticle Pattern Segmented Circle / Crosshair
Day Reticle Color Red
Night Reticle Color Red
Focal Plane First
Bullet Drop Compensating (BDC) No
Caliber MOA or MRAD
Bindon Aiming Concept (BAC) Yes
Illumination Source LED
Illumination Settings 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super Bright Setting
Power Source AA Lithium or Alkaline Battery
Battery Life 633 hours at setting 6
Adjustment 1/4 MOA Per Click or .1 MRAD
Adjustment Range 120 MOA or 35 MRAD Total Travel
Eye Relief 4 in to 3.9 in
Exit Pupil 0.40 in. to 0.14 in
Field of View (degrees) 20° to 2.5°
Field of View (feet) 109.2 ft. to 13.1 ft. @ 100 yards
Mount Flattop Thumbscrew Mount

Q-LOC Technology Mount

Housing Material 7075-T6 forged aluminum
Finish Matte Black
Submersion Depth 66 ft.
Weight 31.5 oz
