Description
Warne Vapor Horizontal Rings – 30mm
The Warne Horizontal Rings were designed to be affordable with made in the USA quality. The Warne Vapor Horizontal was developed and engineered to provide you with a strong and economical mounting solution that outperforms other mounts in their class.
- Stanag 4694 compatible
- Classic Horizontal Design
- Easy to install
- Field proven performance
- Lightweight aluminum
- Lifetime warranty
- Designed and Made in USA
Installation Instructions
Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.

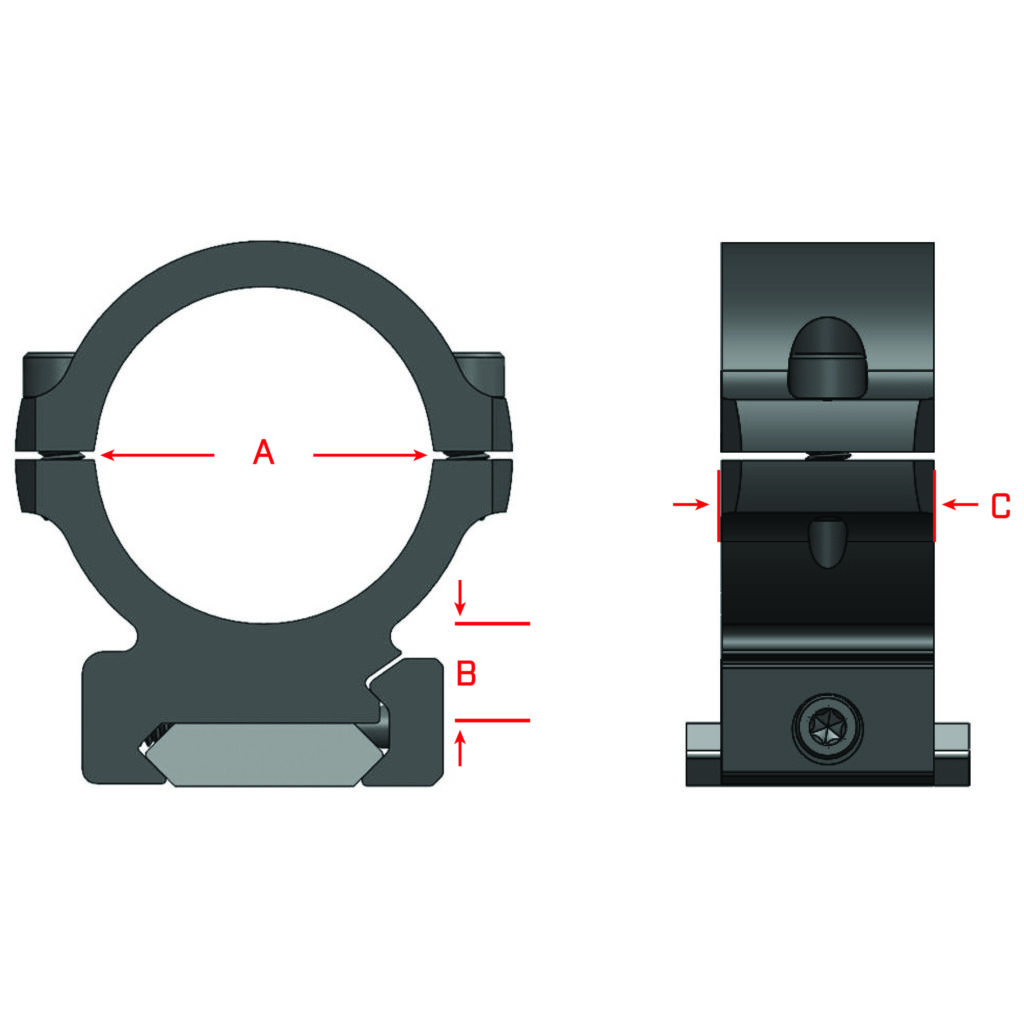

- Remove both cap screws and cap on each ring. (A)
- Loosen clamp screw on each ring (B) and place in desired position on Maxima®/Weaver style bases or picatinny rail.
- Push each ring towards muzzle to seat cross-bolt and tighten clamp screws to 25 in-lb max.
- Place scope in rings and reinstall cap screws, leave loose.
- Adjust scope position for eye relief and level reticle.
- Tighten each cap screw until snug, leaving an even gap on both sides. Torque both cap screws to scope manufactures** recommended torque setting.
*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND
**Many scope manufacturers have established specific torque ratings for their scope and you must follow their recommended torque.
