Description

ZEISS Conquest V4 6-24×50

The ZEISS Conquest V4 6-24×50 scope is for hunters and shooters whose lifestyle and adventures involve traditional and long-range hunting and shooting. The Conquest V4 family is based on a 4x zoom ratio, merges a 30 mm main tube, and some of the best glass available on the market. Each model brings 90% to the eye light transmission, gives .25 MOA click values, capped windage adjustment, second focal plane reticle designs, and a large range of total elevation and windage travel adjustment.

Every ZEISS Conquest V4 6-24×50 is backed by the ZEISS Limited Lifetime Transferable Warranty and Five Year No Fault Policy. These riflescopes serve a wide range of hunting and shooting applications, are made with special features, perform above expectations in their price range and holds great value.

ZEISS Conquest V4 6-24×50 Features

Designed and Engineered in Germany

Absolute reliability: the mechanical systems stand the test of rough recoil, even in extreme temperatures and harsh field conditions.

Generous Eyebox

The friendly and forgiving eyebox, matched with plenty of eye relief and the wide field of view, gives the shooter fast and full target recovery, which helps for a fast and sharp shot.

Proven 4x Zoom

Relevant magnification ranges, with a 4x zoom ratio, gives many options across a wide range of applications.

External Elevation Turret

Easy to work, positive, tactile and highly repeatable turret, with Ballistic Stop and large range of adjustment, gives the shooter with the most flexibility needed for hard targets down range.

Optical Performance

Higher definition glass with T* light transmission coatings and LotuTec protective lens coating. Given 90% to-the-eye light transmission, great low-light performance and target resolution across the entire magnification range. Above all, these features make a best-in-class experience.

Second Focal Plane Reticle Options

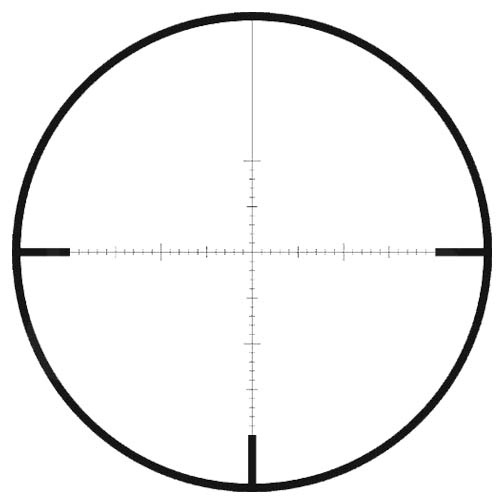

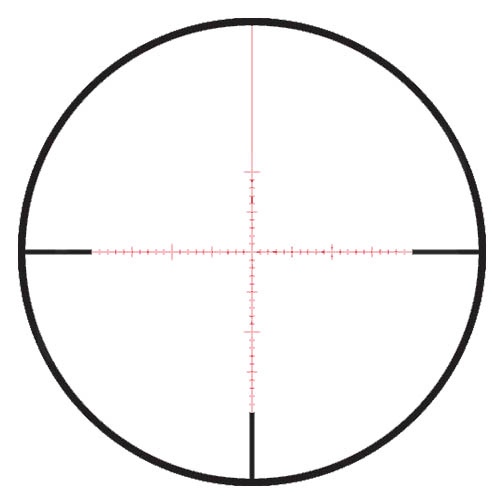

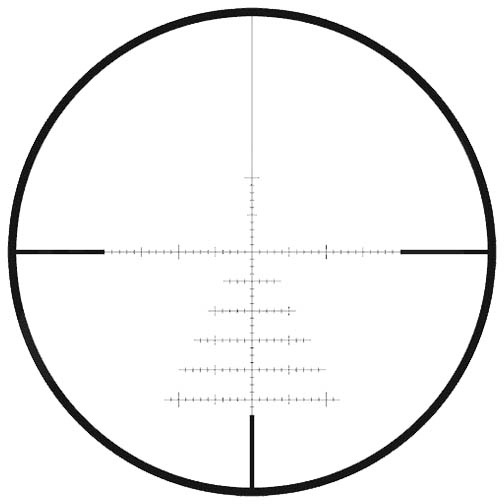

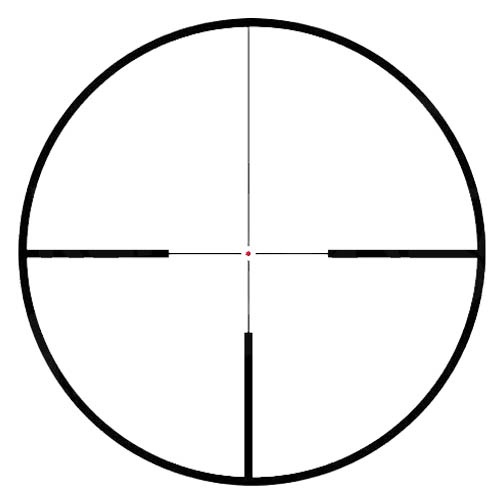

Four reticle options are available to suit your needs, the scope is offered with the traditional Z-Plex #20. Other reticles include the ZEISS MOA-based smart reticles: ZBR-2 and ZMOA-2. These reticles feature fine line sub tensions to make sure minimum target coverage and maximum target visibility. Lastly ZIESS has just revealed their brand new reticle the ZMOAi-T20. This new reticle answers the call for a thin line and more intuitive reticle design. The shooter now has a faster aiming solution with several user friendly updates. This new second focal plane reticle meets the ever demanding needs for long range shooting as well as long range hunting.

ZEISS Conquest V4 6-24×50 Owners Manual »


Specifications

Magnification 6 to 24 x
Focal Plane Second
Effective Lens Diameter 44.9 to 50 mm
Exit Pupil Diameter 7.5 to 2.1 mm
Twilight Factor 16.4 to 34.6
Field of View at 100 yds 19 ft to 4.8 ft
Angular Field of View, Real 3.4° to 0.9°
Diopter Range  – 3 / + 2 dpt
Eye Relief 3.5 in
Parallax Setting 10 yds to ∞ or 50 yds to ∞
Elevation Adjustment Range 80 MOA
Windage Adjustment Range 60 MOA
Click Value 0.25 MOA
Main Tube Diameter 30 mm
Eyepiece Tube Diameter 44 mm
Objective Tube Diameter 56 mm
Coating LotuTec / ZEISS T*
Fogproof Nitrogen Purged
Waterproof 400 mbar
Operating Temperature -4 / +131°F
Length 14.5 in
Weight with Illumination 23 oz
Reticle’s #60 illum.

ZMOAi-1 illum.

ZMOAi-T20 illum.

ZMOAi-20 illum.

ZBi illum.


Offering up to 24x magnification and adjustable parallax compensation, this riflescope is ideal for precision shooting and long–range applications.

Large elevation and windage adjustment range

Multi-turn elevation turret with Ballistic Stop (absolute and positive return to zero)

Side parallax adjustment




More from ZEISS

Additional information

Weight 1.25 lbs
Reticle Options

, , , ,
