Description

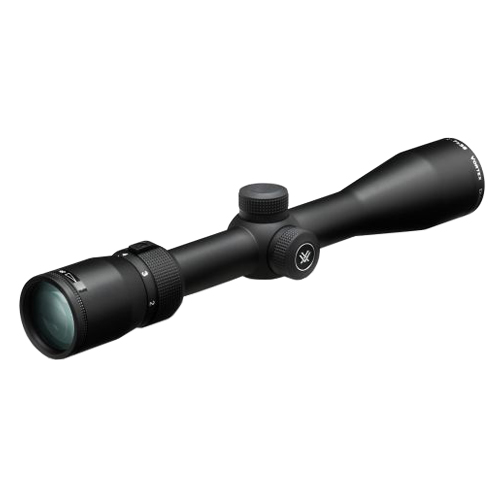

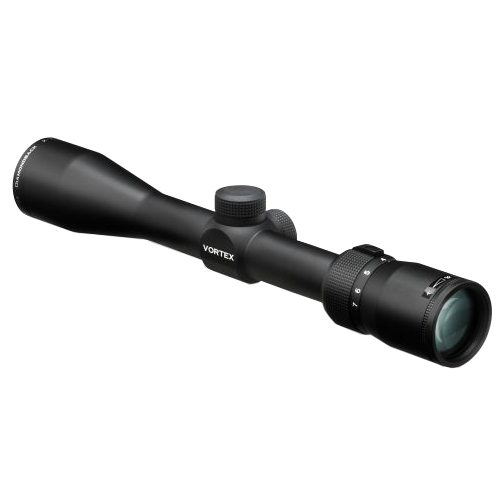

Vortex Diamondback 2-7 x 35 mm Riflescope

The Vortex Diamondback 2 – 7 x 35 mm is a scope that is loaded with features! It is constructed of solid one piece aircraft grade aluminum alloy and a hard anodized finish making it virtually indestructible and highly resistant to magnum recoil. The Argon purging makes the scope waterproof and fog proof. It features a fully multi coated lens to protect against scratches and debris.

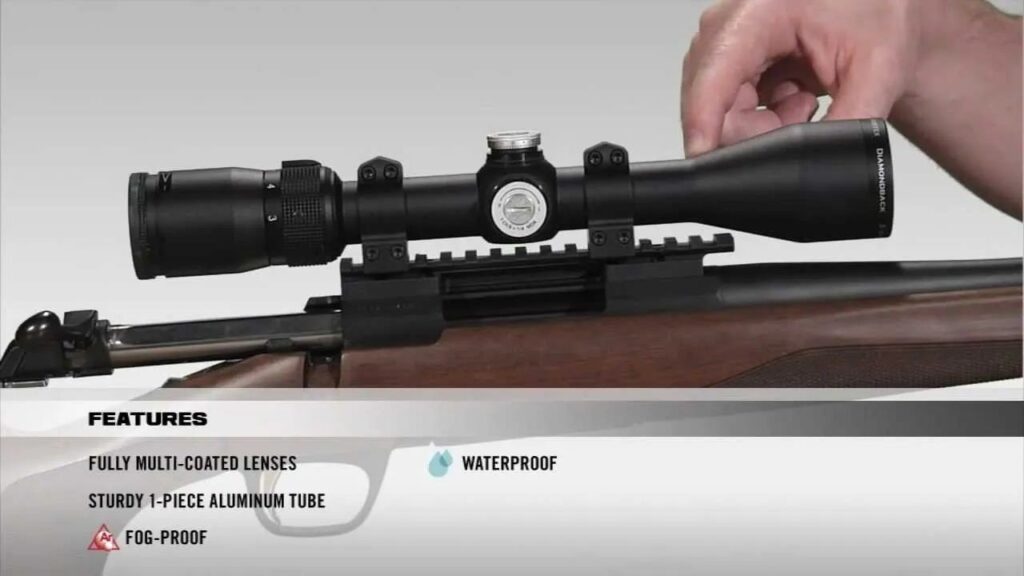

Diamondback 2-7 x 35 mm Features

Fully Multi-Coated

Second Focal Plane Reticle

Single Piece Tube

Aircraft Grade Aluminum

Waterproof

Fog proof

Shockproof

Hard Anodized Finish

Precision Glide Erector System

Capped Reset Turrets

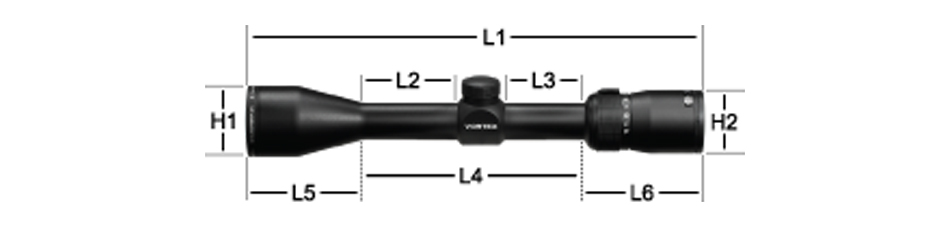

Specifications

L1 11.6
L2 1.83
L3 2.1
L4 5.16
L5 3.35
L6 3.1
H1 1.72
H2 1.69



Specifications

Magnification 2 to 7 x
Objective Lens Diameter 35 mm
Eye Relief 3.1 inches
Field of View 64.3 to 19.3 feet/100 yards
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 100 MOA
Max Windage Adjustment 100 MOA
Parallax Setting 100 yards
Length 11.6 inches
Weight 14.2 ounces














Related Items

Additional information

Weight 0.89 lbs

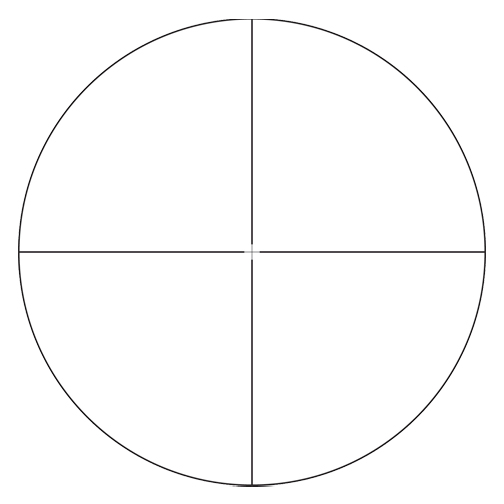

Vortex Reticle Option

Dead-Hold BDC, V-Plex
