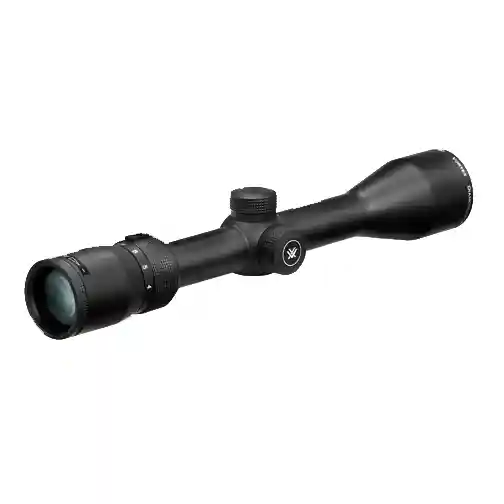

Vortex Diamondback 4-12x40mm Scope



For a limited time, save 12% on select Vortex products when you use code VORTEX12 in your cart!

Not valid with any other offers or discounts. Not valid on any products where this message is not found.

Available Options:

Vortex Diamondback 4-12x40mm Scope

The Vortex Diamondback 4-12x40mm Scope is a scope that is loaded with features! It is constructed of solid one piece aircraft grade aluminum alloy making it virtually indestructible and highly resistant to magnum recoil. The Argon purging makes the scope waterproof and fog proof. It features a fully multi coated lens to protect against scratches and debris.

Vortex Diamondback 4-12x40mm Scope Features

Fully Multi Coated

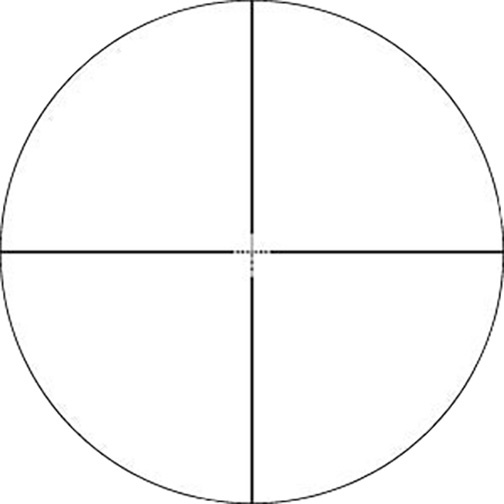

Second Focal Plane Reticle

Tube Size

Single Piece Tube

Constructed of Aircraft Grade Aluminum

Waterproof, Fog Proof, and Shockproof

Hard Anodized Finish

Capped Reset Turrets

Precision Glide Erector System

Fast Focus Eyepiece


L1 12.0
L2 2.46
L3 2.15
L4 5.85
L5 3.0
L6 3.1
H1 1.89
H2 1.69


Magnification 4-12x
Objective Lens Diameter 40 mm
Eye Relief 3.1 inches
Field of View 32.4-11.3 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12 inches
Weight 14.6 oz
