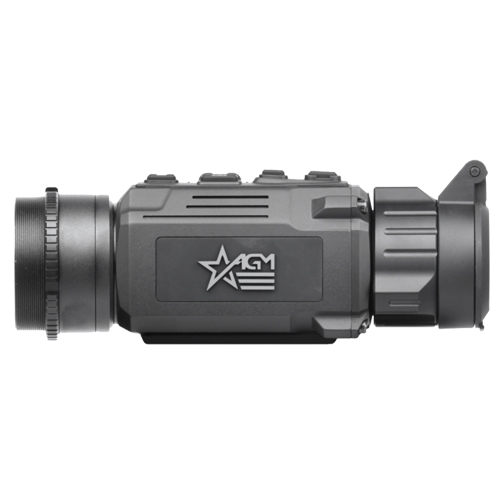

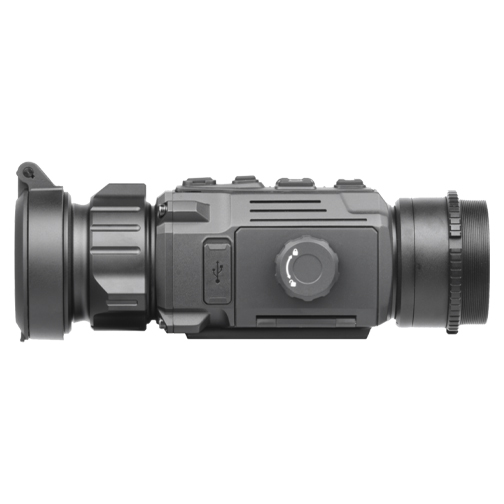

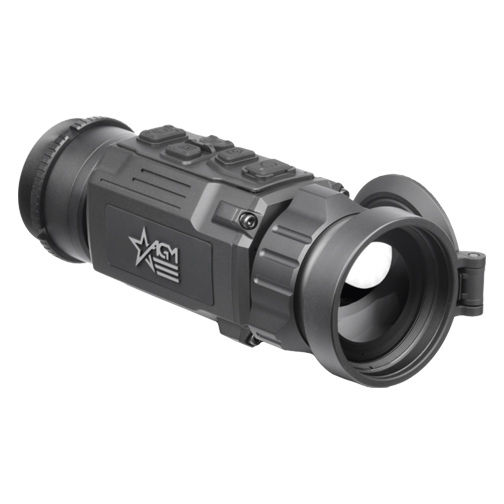

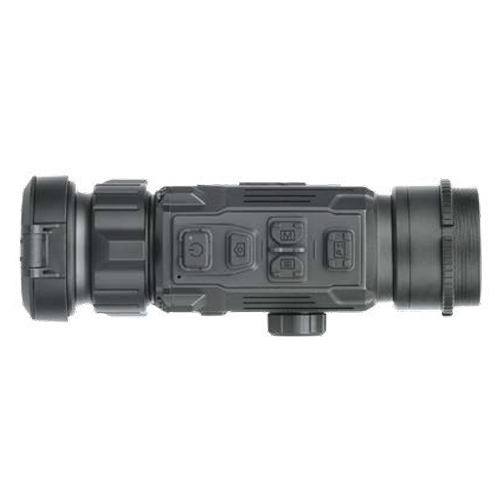

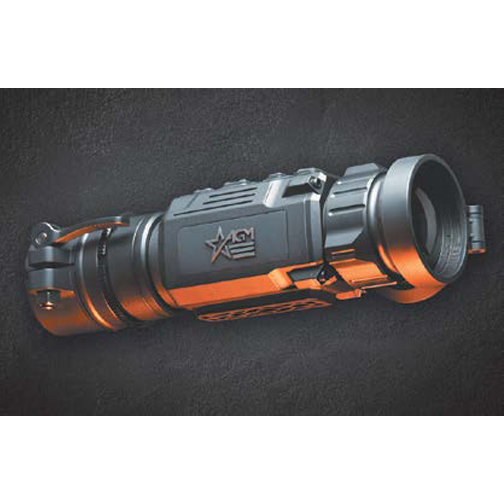

AGM Rattler-C V2 50-640 Thermal Imaging Clip-On System
The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
AGM Rattler-C V2 35-384 Features
Quick conversion of daytime optics into thermal imaging scope
12μm high-sensitivity thermal detector, NETD < 20mK
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
9 – 11 hours battery life (depending on model)
External power supply compatibility
Waterproof & shockproof
5-year warranty
Included in the Box
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
Specifications |
||||||
| Resolution | 640×512 | |||||
| Detector | 12μm VOx Uncooled Focal Plane Array | |||||
| NETD | Less than 20 mK (25°C, F# = 1.0) | |||||
| Refresh Rate | 50 Hz | |||||
| Lens System | 50 mm; F/1.0 | |||||
| Optical Magnifciation | 1x | |||||
| Field of View | 8.8° × 7.0° | |||||
| Focus Range | 10 m to infinity | |||||
| Exit Pupil | 22 mm | |||||
| Eye Relief | 10 mm | |||||
| Detection Range (6’ object) | 2600 m/yd | |||||
| Display | 0.39-inch, OLED, 1024×768 | |||||
| Palettes | Black hot, White hot, Red hot, Fusion | |||||
| Flat Field Correction | Auto, Manual, External Correction | |||||
| Scene Mode | Cold, Warm | |||||
| Video/Audio Recording | Yes | |||||
| Image Capture | Yes | |||||
| Standby Mode | Yes | |||||
| Storage | Builtpin EMMC (16GB) | |||||
| Defective Pixel Correction | Yes | |||||
| WiFi Hotspot | Yes | |||||
| Hot Track | Yes | |||||
| Distance Measurement | Yes (Stadiametric) | |||||
| Shot Activated Recording (SAR) | Yes | |||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | |||||
| Battery Life (Operating, 20°C) | 9 h (25°C, with hotspot off) | |||||
| External Power Supply | 5 VDC, 2 A, USB Type-C | |||||
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) | |||||
| Protection Level | IP67 | |||||
| Max. Recoil | 1000 g / 0.4ms | |||||
| Weight (w/o mount and battery) | 0.55 kg (1.2 lb) | |||||
| Dimensions (w/o mount) | 196 x 73 x 68 mm (7.7 x 2.9 x 2.7 in) | |||||
| Package Includes | Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
