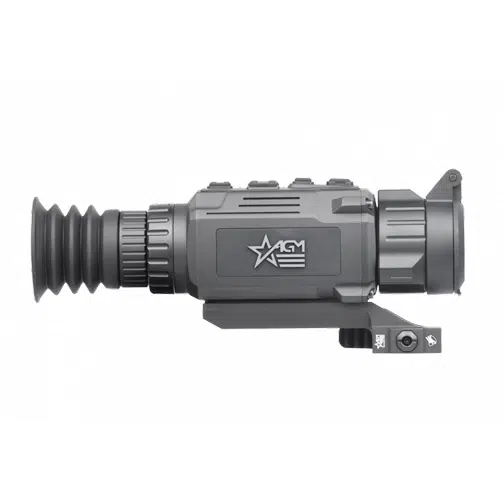

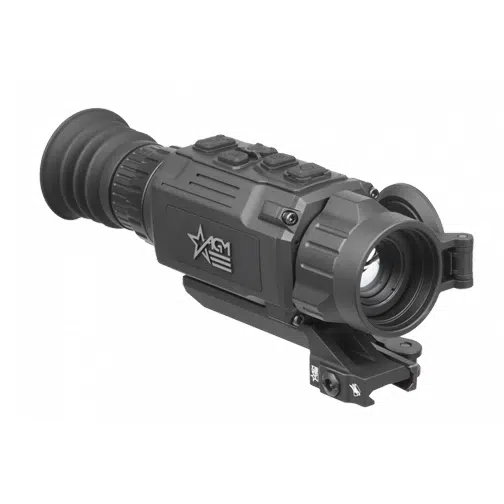

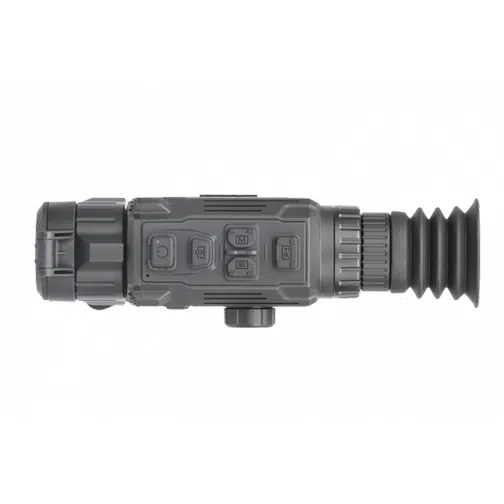

AGM Rattler V2 25-320 Thermal Imagining Riflescope
The AGM Rattler V2 25-320 is a thermal imaging riflescope was designed to improve on what is already considered one of the bestselling riflescopes, and it brings many of the most sought after design improvements into one sleep new housing. These improvements include, but not limited to: dramatically expanded battery life offered through the unit’s proprietary removable and rechargeable battery system, which will afford users 6.5 hours on a single charge (2 included), an expanded built-in reticle assortment, expanded brightness and contrast settings, shot activated recording with sound and new 12-micron thermal sensor that have the highest rated sensitivity rating (sub-20 mK) on the market. The Rattler V2 features a 25mm Germanium lens that is the perfect addition to any hunter’s arsenal. The Rattler V2 320×256 is equipped with a 320×256 resolution thermal sensor, this unit has 3.5x magnification, and a detection range of 1200 meters. This base magnification allows for a wide field of view, which many hog hunters prefer, as it allows them to see and track multiple animals in a group at once.
AGM Rattler V2 25-320 Features
Superior sub-20 milikelvin thermal sensitivity
320×256 resolution with 12-micron sensor
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
Over 6.5 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
Specifications |
||||||
| Shot-Activated Recording | Yes | |||||
| Max. Recoil | 1000 g/0.4 ms | |||||
| Flat Field Correction (FFC) | Auto, Manual, Semi-Auto | |||||
| Palettes | Black Hot, White Hot, Red Hot, Fusion | |||||
| Dimensions | 219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in) | |||||
| Exit Pupil Diameter | 6 mm | |||||
| Reticle | 10 types, 4 colors, on/off | |||||
| Boresight Adjustment | Digital Controlled | |||||
| Distance Measurement | Yes (Stadiametric) | |||||
| Scene Mode | Cold, Warm | |||||
| Picture In Picture Mode (PIP) | Yes | |||||
| Video Recording | Yes | |||||
| Defective Pixels Correction (DPC) | Yes | |||||
| Audio Recording | Yes | |||||
| Magnification | 3.5× – 28× | |||||
| Detector type | 12μm VOx Uncooled Focal Plane Array | |||||
| Standby Mode | Yes | |||||
| Refresh rate | 50 Hz | |||||
| Resolution | 320 × 256 | |||||
| Detection Range (6′ object) | 1200 m/yd | |||||
| Snapshot | Yes | |||||
| Lens system | 25 mm; F/1.0 | |||||
| NETD | Less than 20 mK (25°C, F# = 1.0) | |||||
| Field of view (H × X) | 7.0° × 5.3° | |||||
| Digital zoom | 1×, 2×, 4×, 8× | |||||
| Diopter adjustment range | -5 to +5 dpt | |||||
| Focusing range | 7 m to infinity | |||||
| Hot Track | Yes | |||||
| Eye relief | 45 mm | |||||
| Display | 0.39-inch, OLED, 1024×768 | |||||
| Storage | Built-in EMMC (16 GB) | |||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | |||||
| Wi-Fi | Yes | |||||
| External power supply | 5 VDC, 2 A, USB Type-C | |||||
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) | |||||
| Weight | 0.49 kg (1.08 lb) | |||||
| Protection Level | IP67 | |||||
| Package Includes | Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case | |||||
| Battery Life (Operating) | Over 6.5 hours (25°C, with WiFi off) | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
