AGM Taipan TM15-256 Thermal Imaging Monocular
The AGM Taipan TM15-256 is a is a thermal imaging monocular that features a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement and WiFi hotspot. The high sensitivity built in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, and more.
AGM Taipan TM15-256 Features
256×192 resolution, 12 μm, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720 × 540 LCOS display
Built in rechargeable Lithium battery
Up to 8 hours continuous running (with WiFi hotspot function off)
“Auto Power Off” and “Sleep” modes
WiFi hotspot
Type-C interface
Limited 3 year warranty
Distance Measurement
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

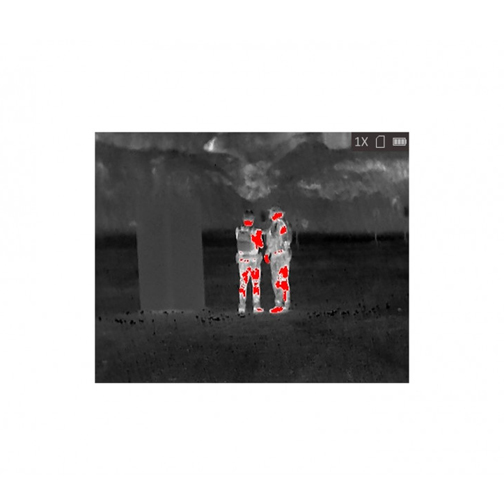

Hot Spot Mark
The device detects and marks the hot spot of highest temperature.
Mode Switch
Device supports pallet switch and distance measurement.
Storage
Built-in memory module supports video recording/snapshot capturing.

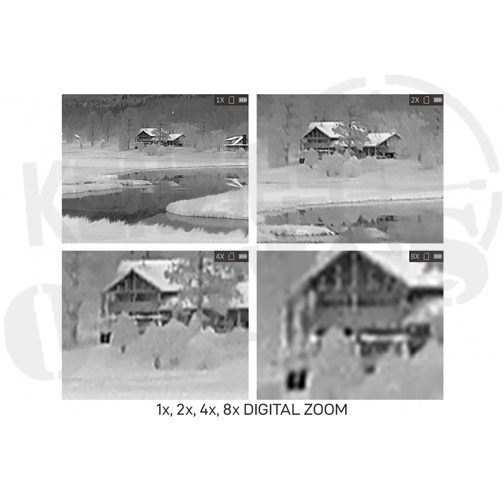

Digital Zoom
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
Specifications |
||||||

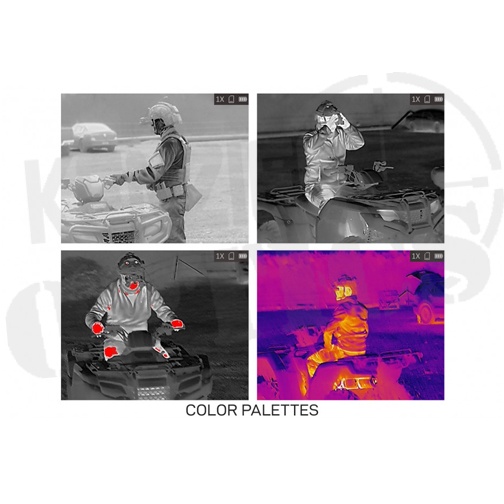

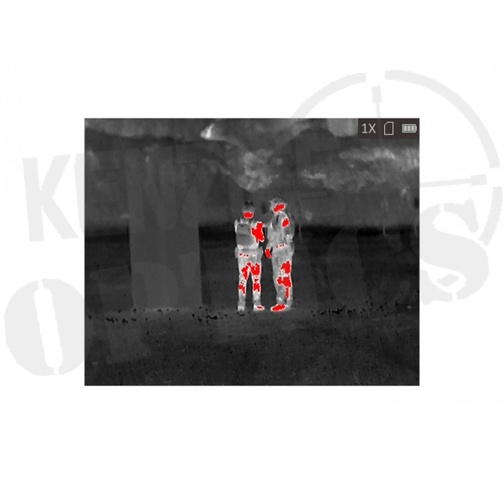

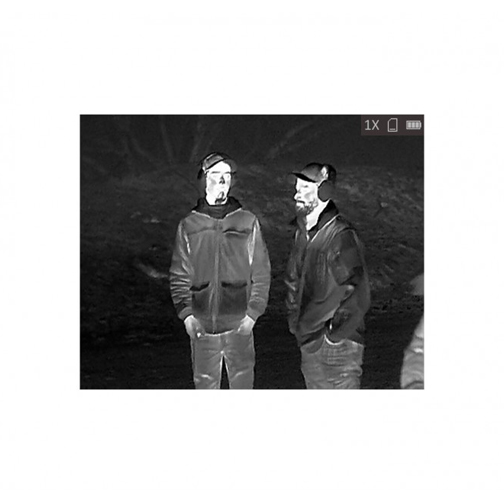

| Palettes | Black Hot
White Hot Red Hot Fusion |
|||||
| Working Temperature | -20°C to 55°C
(-4°F to 131°F) |
|||||
| Interface | USB Type-C | |||||
| Pixel Interval | 12 μm | |||||
| Multi Language Menu | Yes | |||||
| Drop Test Height | 1.5 m
(4.9 feet) |
|||||
| Detector Type | Vanadium Oxide Uncooled Focal Plane Arrays | |||||
| Response Waveband | 8μm to 14μm | |||||
| FFC (Flat Field Correction) | Auto, Manual, External Correction | |||||
| Highest Temperature Spot Tracking | Yes | |||||
| Standby Mode | Yes | |||||
| Refresh Rate | Sensor 25 Hz / OLED 50 Hz | |||||
| Aperture | F1.0 | |||||
| Resolution | 256×192 | |||||
| Detection Range | 708 m | |||||
| NETD | Less than 35 mk (@25°C), F#=1.0 | |||||
| Lens (Focal Length) | 15 mm | |||||
| Power | 5 VDC/2 A, 1.5 W | |||||
| Field of View (H × X) | 11.69° × 8.78° (H × V) | |||||
| Digital Zoom | 1×, 2×, 4×, 8× | |||||
| Monitor | 720×540, 0.2 inch, LCOS | |||||
| Storage | Built-in memory module (8 GB) | |||||
| Record Video | On board video recording | |||||
| Capture Snapshot | Yes | |||||
| Battery Type | Built in rechargeable Lithium battery | |||||
| WiFi | Yes | |||||
| CVBS Output | Yes (via USB) | |||||
| Battery Operating Time | Up to 8 hours continuous running (with Wi-Fi hotspot function off) | |||||
| Battery Capacity Display | Yes | |||||
| Weight | 280 g
(0.62 lb) |
|||||
| Overall Dimensions | 158 × 61 × 57 mm
(6.23 × 2.4 × 2.2 in) |
|||||
| Protection Level | IP67 | |||||
