AGM Taipan TM25 – 384 Thermal Imaging Monocular

(1 customer review)

$1,595.00 $1,435.50

In stock

SKU: 3092451004TA21 Categories: , , , , Tags: , , , ,

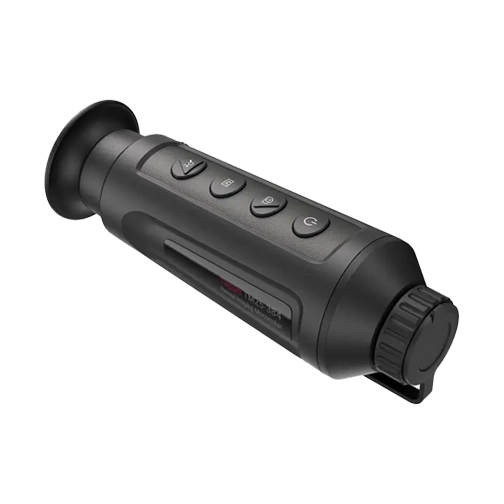

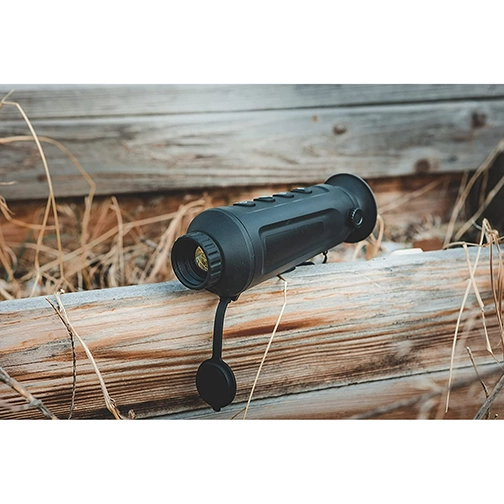

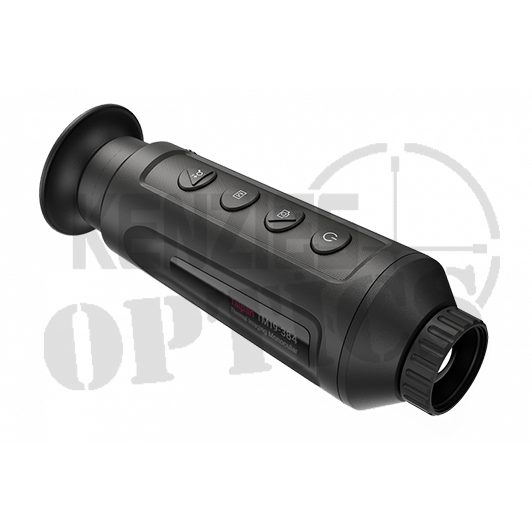

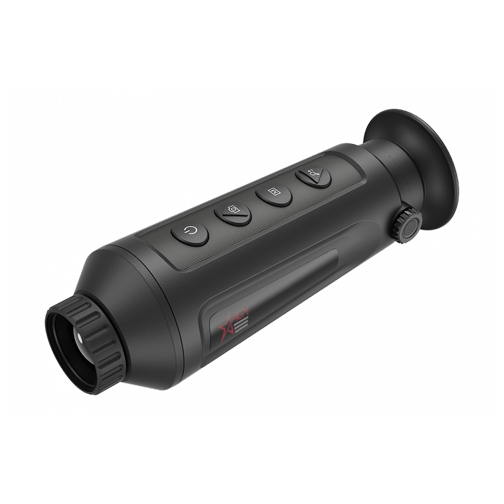

AGM Taipan TM25 Thermal Imaging Monocular

The AGM Taipan TM25 will give you a clear view even in total darkness. The handheld is equipped with a 384 x 288 infrared detector and a 1280 x 960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurements, WiFi hotspot, and more. The high sensitivity built in thermal detector provides you with clear views even in complete darkness. It runs on a built in rechargeable Lithium battery which will run continuously for more than 7.5 hours when the WiFi hotspot is turned off. The monocular was designed for patrolling, law enforcement, search and rescue, hiking and hunting. The Taipan is backed by AGM’s Limited 3 Year Warranty.

AGM Taipan TM25 Thermal Monocular Features

384 × 288 resolution, 12 μm, high sensitivity detector

Adaptive AGC, DDE, 3D DNR

1280 × 960 resolution 0.4 inch LCOS display

Built in rechargeable Lithium battery

More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

WiFi hotspot

Type C interface

Limited 3 year warranty

User Manual »


Specifications

Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 384 x 288
Pixel Interval 12 μm
Refresh Rate 50 Hz
Response Waveband 8μm to 14μm
NETD Less than 35 mk (@25°C), F#=1.0
Detection Range 1180  m
Lens (Focal Length) 25 mm
Aperture F1.0
Field of View 10.5° × 7.9°

(H × V)

Magnification 2.5x
Digital Zoom 2x

4x

8x

Monitor 1280 x 960, 0.4 inch, LCOS
FFC (Flat Field Correction) Auto

Manual

External Correction

Palettes Black Hot

White Hot

Red Hot

Fusion

Highest Temperature Spot Tracking Yes
WiFi Hotspot Yes
Standby Mode Yes
Storage Built in Memory Module

(8GB)

Record Video On board video recording
Capture Snapshot Yes
CVBS Output Yes

(via USB)

Multi Language Menu Yes
Battery Type Built in rechargeable Lithium Battery
Battery Operating Time More than 7.5 hours continuous running

(with WiFi hotspot function off)

Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W
Interface USB Type C
Working Temperature -20°C to 55°C

(-4°F to 131°F)

Protection Level IP67
Drop Test Height 1.5 m

(4.9 ft)

Dimensions 171 × 61 × 57 mm

(6.73 × 2.4 × 2.2 in)

Weight 300 g

(0.69 lb)
