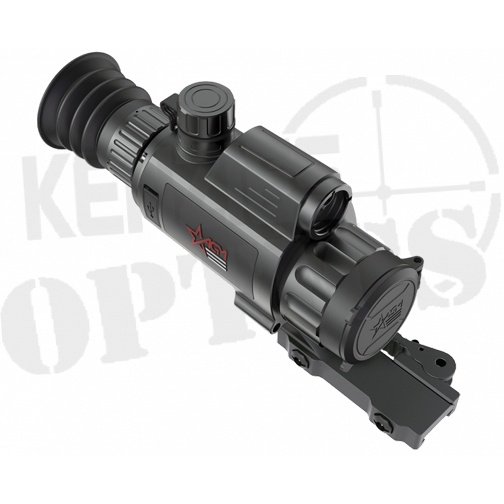

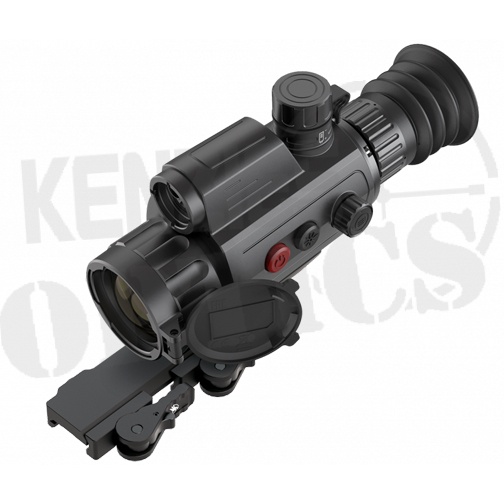

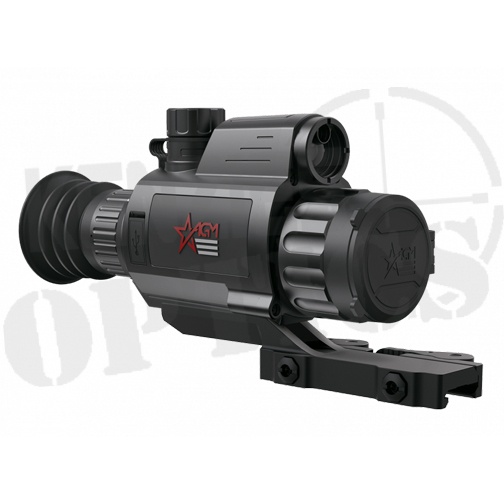

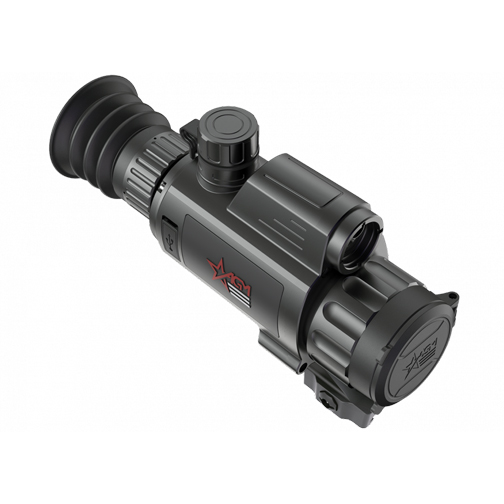

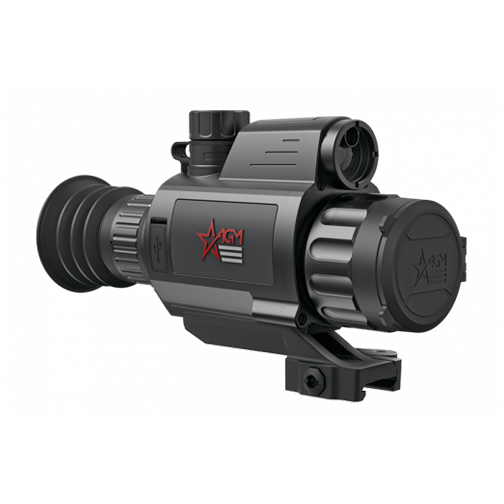

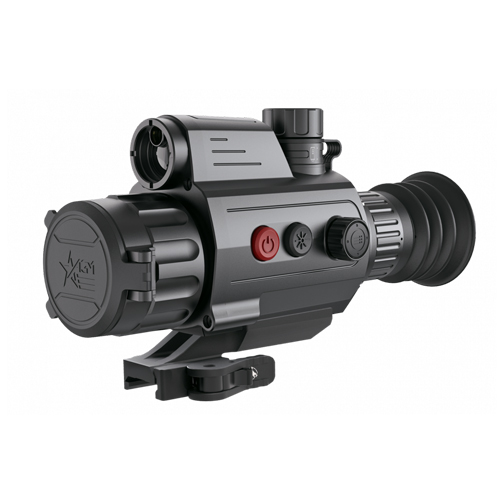

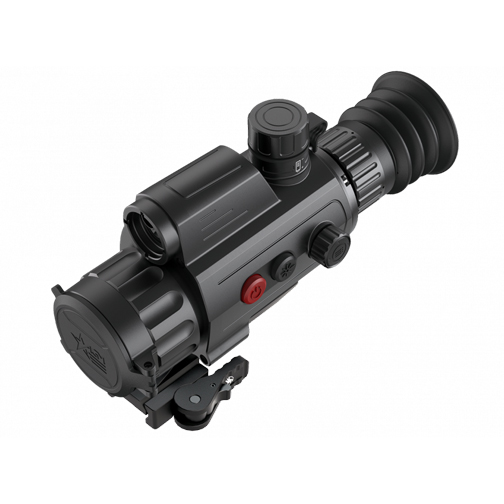

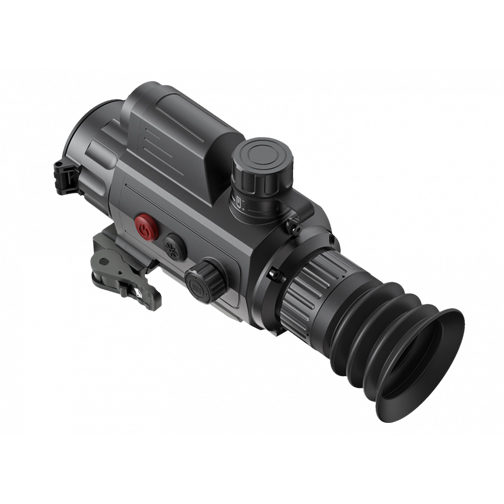

AGM Varmint LRF TS35 640 Thermal Imaging Scope

$3,995.00 $3,395.75

Only 2 left in stock

AGM Varmint LRF TS35 640 Thermal Imaging Scope

The AGM Varmint LRF TS35 640 was designed to be a reliable 24 hour operation thermal imaging scope under any weather and environmental conditions. Available in multiple configurations, 384×288 (50Hz) or 640×512 (50Hz) thermal detector and 35mm or 50mm objective lens, allowing for the user to choose the perfect unit for their needs. The 35mm lens is designed for medium range applications, while the 50mm lens will be better suited for long range engagements.

The Varmint LRF is equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, providing clear images under harsh environment conditions. It’s built in laser range finder is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor.

One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on board video recording and image capturing. An internal WiFi module for live video streaming and video/image recording via application are also included. The device can be used as a thermal riflescope or a handheld monocular, and is great for patrolling, hunting and static observation.

AGM Varmint LRF TS35 640 Features

12μm high sensitivity thermal detector

Fast 50Hz imaging

1x, 2x, 4x, 8x Digital zoom

Adjustable color palettes

Built in laser rangefinder

High resolution OLED display

Various reticle types and colors

On board video recording and snapshot

Built in EMMC storage (16 GB)

WiFi data transmission

Standby mode

Up to 4.5 hours continuous runtime

External power supply compatibility

Waterproof & shockproof

Limited 3 year warranty

Data Sheet


Palettes Black Hot

White Hot

Red Hot


Reticle 5 types, 4 colors, on/off
Drop Test Height 1.5 m

(4.9 ft)

Boresight Adjustment Digital Controlled
Boresight Increment 0.13 mil / 0.44 MOA
Scene Mode Yes
Picture In Picture Mode (PIP) Yes
Hotspot Yes
Observation Distance 1,750 m
Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto


External Correction

Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh Rate Sensor 50Hz / OLED 50Hz
Aperture F1.0
Resolution 640×512
Laser Rangefinder Up to 600 m, ±2 m accuracy
Laser Wavelength 905 nm
Optical Magnification 2x – 16x
Lens (Focal Length) 35 mm
Field of View (H × X) 7.53° × 5.65°
Digital Zoom 1x, 2x, 4x, 8x
Monitor 1024×768, 0.39 inch, OLED
Eye Relief 45 mm
Storage Built in 16 GB EMMC
Record Video On board video recording
Capture Snapshot Yes
Battery Type One 18650 (3.7V) Lithium Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours
Battery Capacity Display Yes
External Power Supply 5 VDC/2 A, USB Type-C
Operating Temperature Range -20°C to 55°C

(-4°F to 131°F)

Weight 706 g

(1.55 lb)

Overall Dimensions 217 × 66 × 106 mm

(8.5 × 2.6 × 4.2 in)

Protection Level IP67


Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
